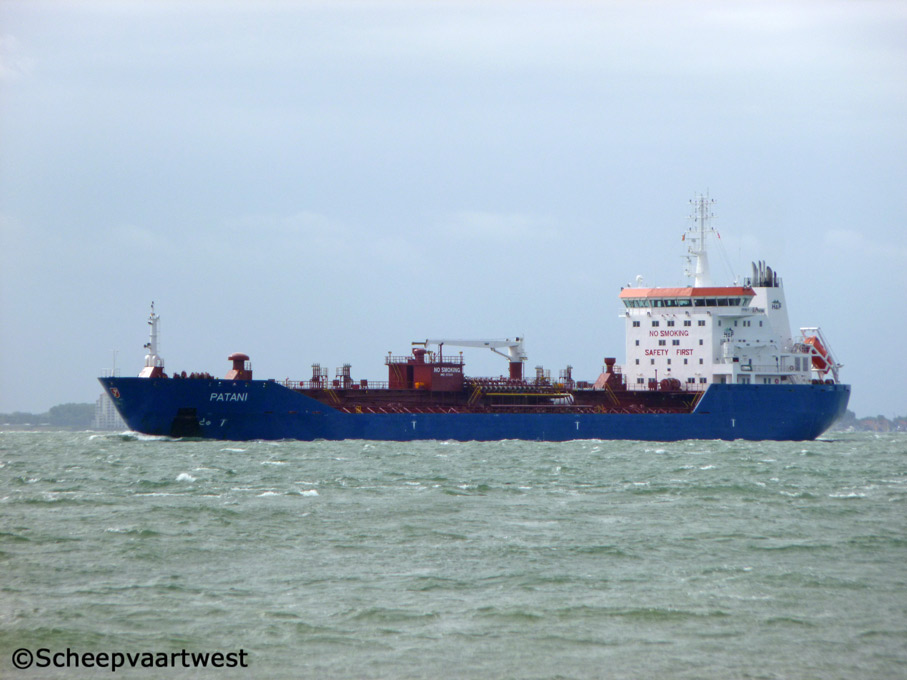

| Westerschelde 30 July 2019 |
 |
 |
|

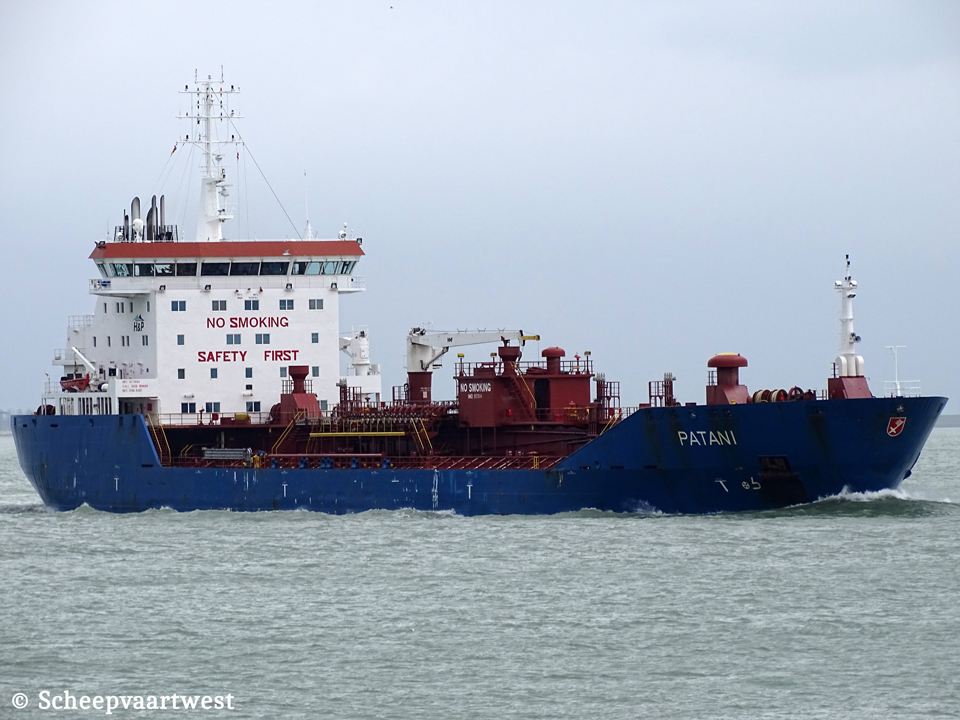

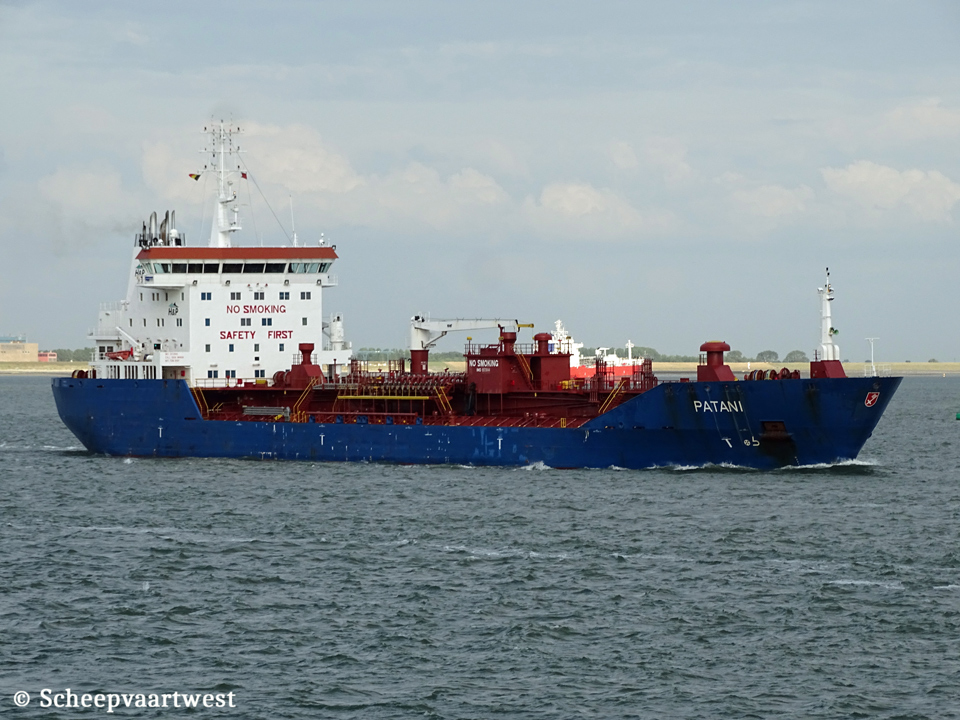

| Westerschelde 14/09/12 | Westerschelde 06/03/20 | |
|
Name |
PATANI |
|
Previous names |
2009 - 2011 Marida Patani |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9373644 |
|
Call sign |
CQEF3 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2009 - 2020 Malta, Valletta - Call sign: 9HNS9 |
|
GT |
11.935 t |
|
DWT |
16.611 t |
|
NT |
5.137 t |
|
Length |
144,19 m overall 133,80 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
Summer: 8,90 m |
|
Keel to mast end |
44,31 m |
|
Freeboard |
3.511 mm |
|
Depth |
12,40 m |
|
Speed |
Max.: 14,0 knots |
|
Built |
2009 |
|
Keel laid |
23/07/2007 |
|
Launch date |
27/11/2007 |
|
Date of completion |
08/01/2009 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Feng Chan Village, Chang Xing Town Chongmin County Shanghai China |
|
Yard number |
H2374 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 6.120 kW / 8.321 hp at 514 rpm Builder: Man-B&W Diesel A/S - Sweden |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, vertical shell type - Mission OM 1x Auxiliary boiler, composite - Mission OC Builder: Aalborg Industries A/S |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
3x Wärtsilä 4L20 Main diesel generatorsets total 2.800 kVA Builder: Wärtsilä Finland Oy, Technology, Ecotech |
|
Emergency generator |
1x Diesel generatorset 130 kVA |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
18.857,8 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
IFO tanks: 580,3 m³ MGO tanks: 74,8 m³ Water ballast: 8.179,8 m³ |
|
Pumps |
Unloading capacity per tank: 300 m³/h Total unloading capacity: 2.100 m³/h |
|
Anchor equipment |
Length: 577,5 m Diameter: 58 mm |
|
Commercial manager |
Brostrom AB Esplanaden 50 1263 Copenhagen Denmark |
|
ISM manager |
Harren Tanker Management GmbH & Co. KG Hermann-Hollerith-Strasse 10 28355 Bremen Germany |
|
Registered owner |
Condor 231. Schifffahrts-GmbH & Co. KG MS "GENF” Care of Brostrom AB Esplanaden 50 1263 Copenhagen Denmark |
|
Latest data adjustment |
14 January 2023 |
