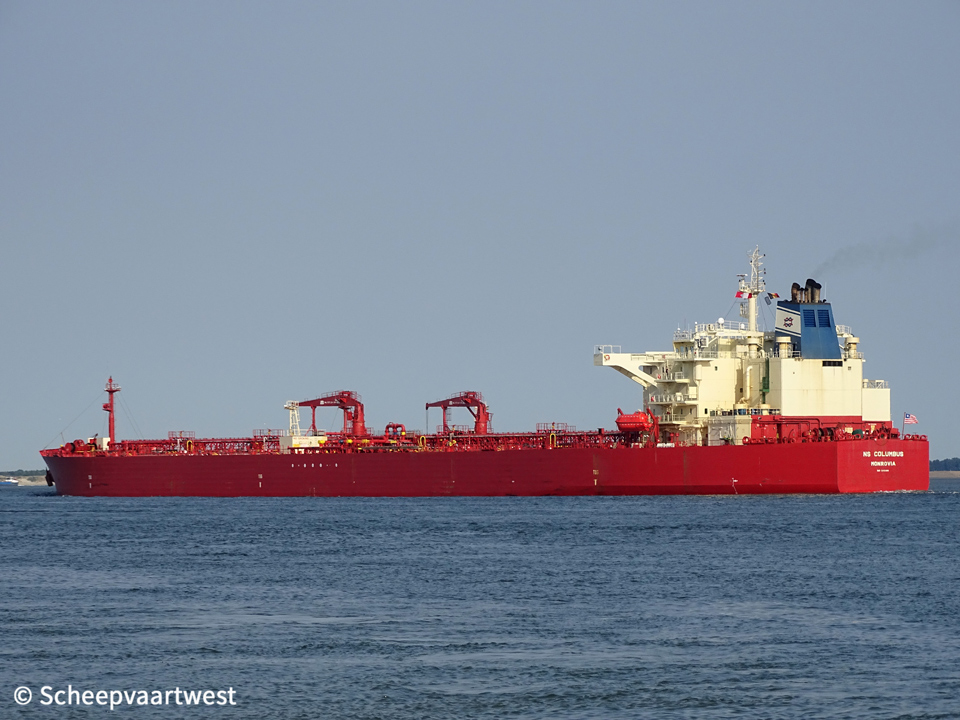

NS Columbus 01

Westerschelde 129 July 2018



Name

NS COLUMBUS

Type

Crude oil tanker - Aframax

IMO-number

9312884

Call sign

A8IK2

Flag

Liberia

Port of registry

Monrovia

GT

57.248 t

DWT

Summer: 109.919 t

NT

32.797 t

Displacement

122.957 t

Length

244,00 m overall

234,00 m between perpendiculars

Breadth

42,03 m extreme

Draught

Max: 15,36 m

Freeboard

Summer: 6.080 mm

Depth

21,00 m

Speed

14,5 knots

Built

2007

Keel laid

27/12/2006

Launch date

01/04/2007

Date of completion

22/05/2007

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

H-1712

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 9

Longitudinal: 3

Continuous decks

1

Main engine

1x MAN-B&W 6S60MC Mk. VI - 6 cylinder combustion engine 15.424 kW

Propellers

1x 1x Fixed pitch mlono-block propeller

Boilers

1x Auxiliary boiler, exhaust gas heated AV-6N

2x Auxiliary boiler, oil/gas fired Mission OL

Builder: Aalborg Industries A/S

Generators

3x Hyundai 5H21/32 main diesel generatorsets

Builder: Hyundai Heavy Industries Co., Ltd.

Cargo tank capacity

115.873 m³

Tank capacities

Ballast: 37.893,7 m³

Anchor equipment

Length: 715,00 m

Diameter: 87 mm

Technical manager

SCF Management Services, Dubai Ltd.
Office OT 17-32, Level 17, Central Park Towers, Office Tower, DIFC, Dubai
UAE

Commercial manager

Sovcomflot UK
6th Floor, 1 Finsbury Square
London, EC2A 1AE
United Kingdom

Registered owner

Sigma Navigation Corporation

Latest data adjustment

20 March 2019
