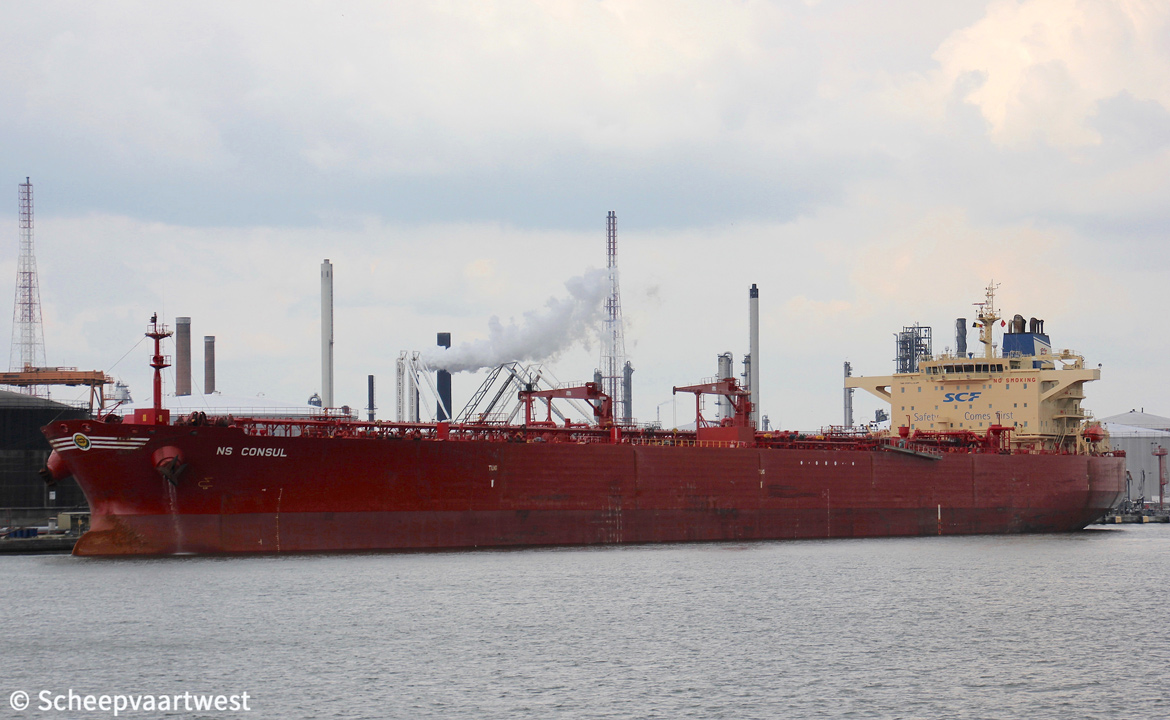

NS Consul 01

Antwerpen 07 May 2019

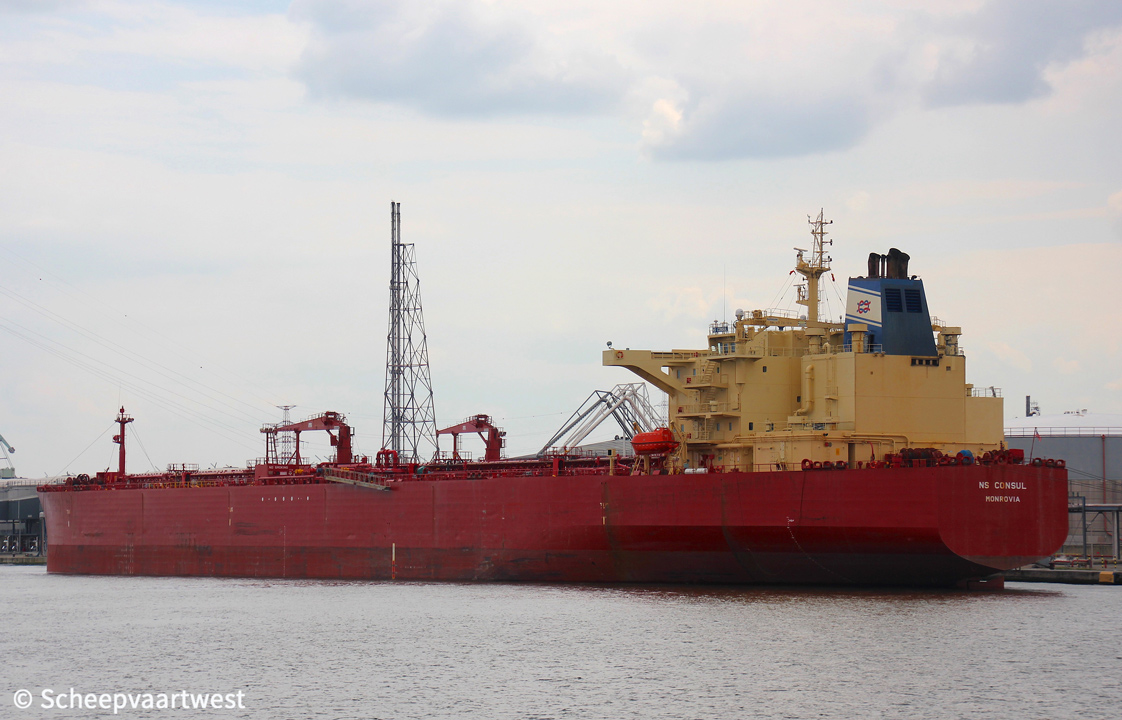

NS Consul 02
Antwerpen 07/05/19



Name

NS CONSUL

Type

Crude oil tanker - Aframax

IMO-number

9341093

Call sign

A8GW7

Flag

Liberia

Port of registry

Monrovia

GT

57.248 t registered

DWT

Summer: 109.716 t

NT

32.797 t registered

Displacement

122.957 t

Length

244,26 m overall

234,00 m between perpendiculars

Breadth

42,03 m extreme

Draught

Max: 15,37 m

Freeboard

Summer: 6.080 mm

Winter: 6.530 mm

Depth

21,45 m

Speed

15,0 knots

Built

2006

Keel laid

09/01/2006

Launch date

25/03/2006

Date of completion

19/05/2006

Builder

Hyundai Samho Heavy Industries Co., Ltd.
Samho
South Korea

Yard number

S305

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 9

Longitudinal: 3

Continuous decks

1

Main engine

1x MAN B&W/HHI 6S60MC - 6 cylinder combustion engine 13.547 kW / 18.520 bhp

Propellers

1x Fixed propeller

Boilers

2x Auxiliary boiler, oil/gas fired Mission OL

1x Auxiliary boiler, exhaust gas heated (Economizer) AV-6N

Builder: Aalborg Industries A/S

Generators

3x Hyundai 5H21/32 main diesel generatorsets each 660 kW

Builder: Hyundai Heavy Ind. Co. Ltd.

Emergency generator

1x Cummins diesel generatorset

Number of cargo tanks

14

Cargo tank capacity

123.326 m³

Tank capacities

Ballast: 37.893,45 m³

Anchor equipment

Length: 715,00 m

Diameter: 87 mm

Technical manager

SCF Management Services (Dubai) Ltd.

Commercial manager

Sovcomflot UK
Milbank House, 1 Finsbury Square, Finsbury
London EC2A 1AE
United Kingdsom

Operator

SCF Management Services (Dubai) Ltd.
Unit OT 17-32 , Level 17, Central Park, Dubai

International Financial Centre, Dubai, 507065
United Arab Emirates

Registered owner

Waterscape Carriers Inc.
Monrovia
Liberia

Latest data adjustment

03 June 2019
