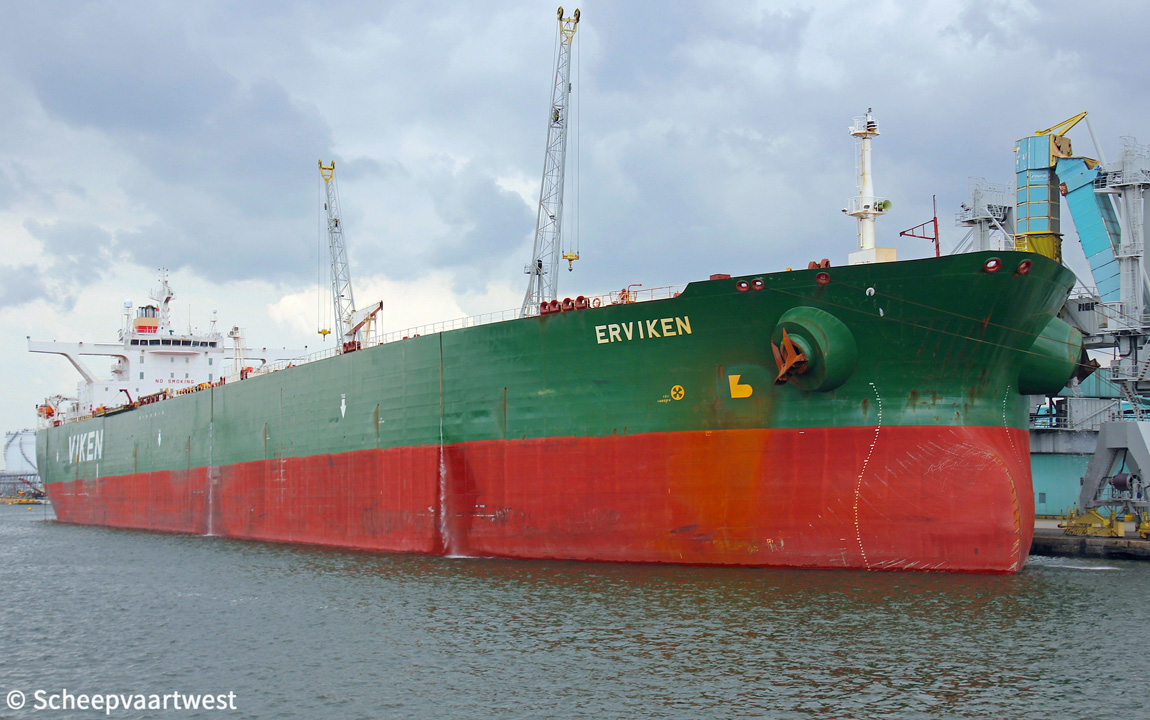

Erviken 02

Antwerpen 07 May 2019

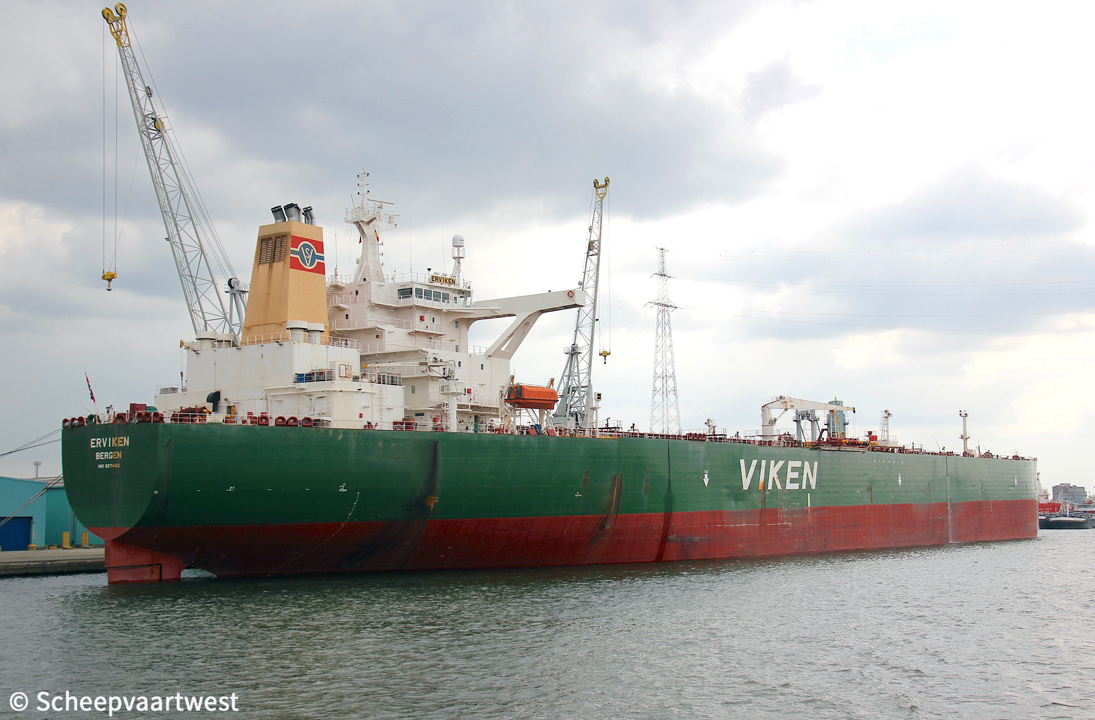

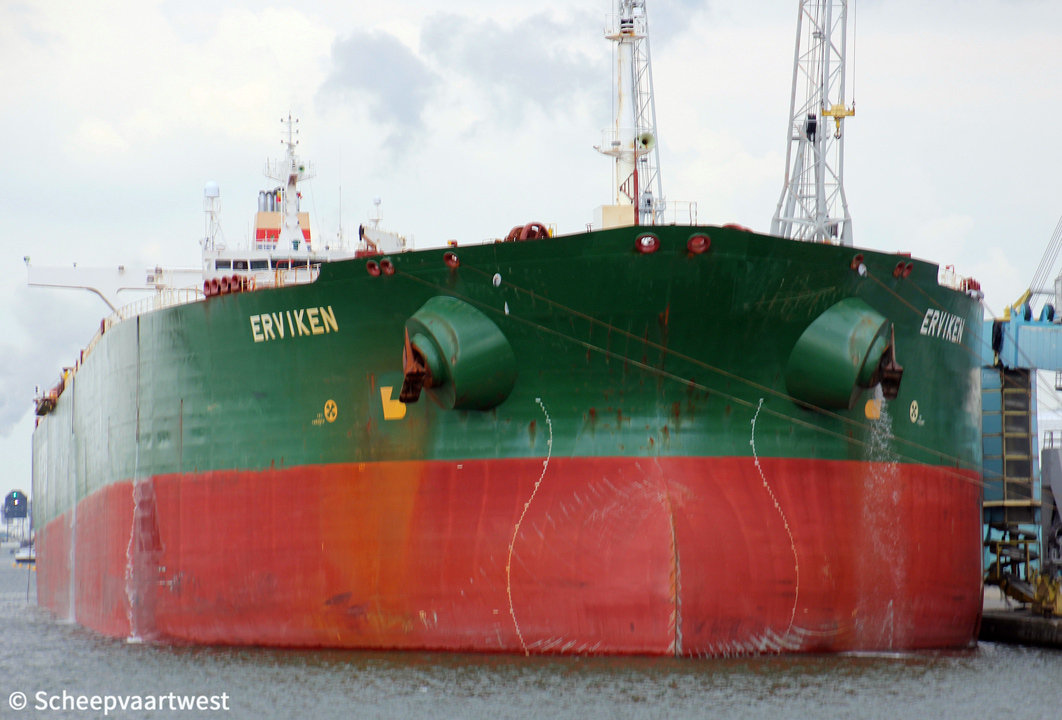

Erviken 03   Erviken 01
Antwerpen 07/05/19   Antwerpen 07/05/19



Name

ERVIKEN

Type

Crude oil tanker - Product tanker - Seuzmax

IMO-number

9274812

Call sign

LAZE5

Flag

Norway

Port of registry

Bergen

GT

82.647 t registered

DWT

152.146.5 t

NT

43.578 t registered

Length

274,57 m overall

264,00 m between perpendiculars

Breadth

48,03 m extreme

Draught

Max: 16,42 m

Freeboard

7.217 mm

Depth

23,60 m moulded

Speed

15,2 knots

Built

2004

Keel laid

30/12/2003

Launch date

03/04/2004

Date of completion

15/06/2004

Builder

Samsung Heavy Industries Co. Ltd., Koje Shipyard
Goeje
South Korea

Yard number

1438

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil tight: 12

Continuous decks

1

Main engine

1x MAN-B&W/Doosan 6S70ME-C - 2 stroke 6 cylinder 700 x 2.800 mm combustion engine 18.889 kW at 91,0 rpm

manufacturer: HSD Engine Co.,Ltd.

Propellers

1x Controllable pitch propeller

Diameter: 8.000 mm

Manufacturer: Rolls-Royce KaMeWa Ulstein

Boilers

1x Auxiliary water tube boiler, port - 18,0 bar

1x Auxiliary water tube boiler, Stbd - 18,0 bar

Manufacturer: Mitsubishi Heavy Industries

1x Exhaust gas economiser
Manufacturer: Kangrim Industries

Shaft generator

1x NTABS-RCM 1.058,4 kW

Generators

3x MAN B&W Holeby 5L28/32H main diesel generatorsets each 900 kW

Bow thruster

2.000 kW

Manufacturer: Rolls-Royce KaMeWa Ulstein

Number of cargo tanks

12

Cargo tanks capacity 100%

177.419 m³

Number of slop tanks

4

Number of tanks

Ballast: 14

Lubricating oil: 8

Fuel oil: 7

Fresh water: 3

Sludge: 2

Chain: 2

Diesel oil: 2

Waste water: 1

Tank capacities 100%

Diesel oil: 241,9 m³

Fresh water: 508,4 m³

Fuel oil: 4.425 m³

Lube oil: 202,1 m³

Tank Ballast: 55.812 m³

Lifting equipment

1x Engine room overhead crane - SWL 6,3 t

1x Hose handling crane - SWL 15,0 t

1x Provision crane, port - SWL 6,3 t

1x Provision crane, starboard - SWL 2,5 t

Manager

Viken Shipping AS
Ervikveien 24
5106 Øvre Ervik
Norway

Operator

Wallem GmbH & Co. KG
Sprinkenhof, Burchardstrasse 8, 3rd Floor
Hamburg, 20095
Germany

Registered owner

Viken Fleet I AS

Latest data adjustment

31 May 2019
