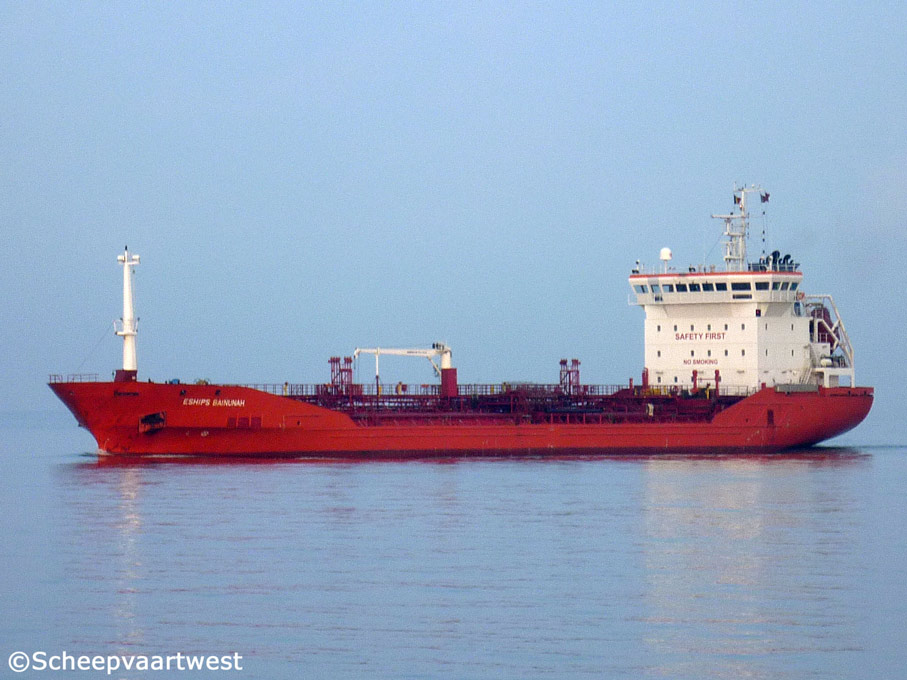

Eships Bainunah 01

Westerschelde 06 April 2012

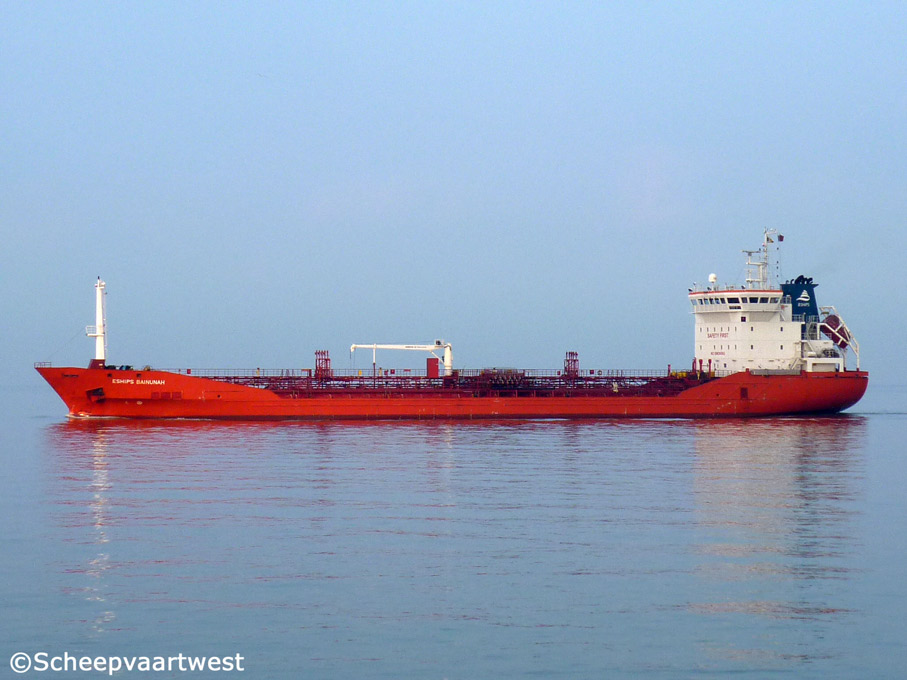

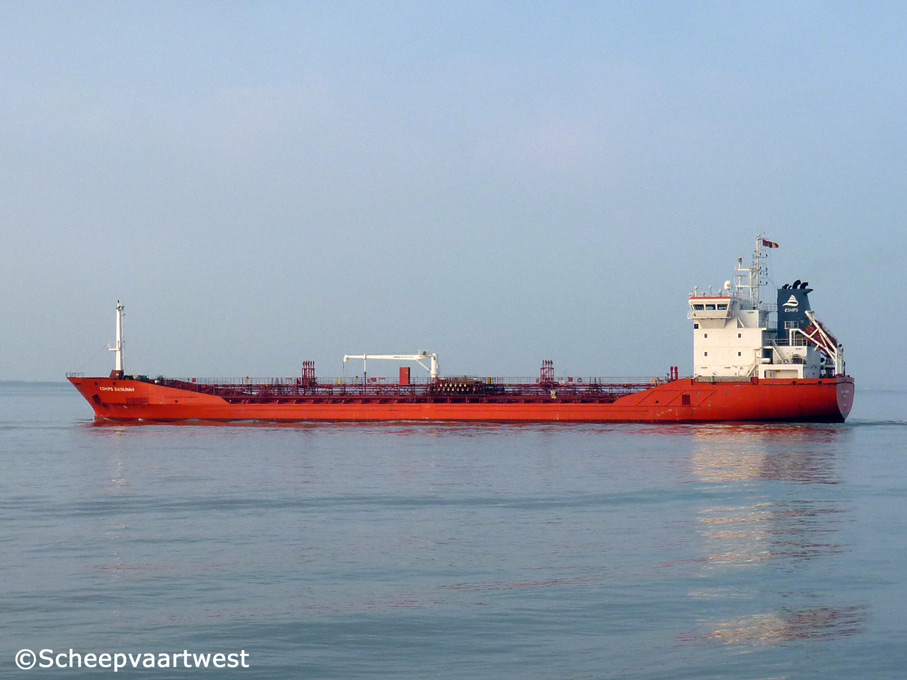

Eships Bainunah 03   Eships Bainunah 07
Westerschelde 06/04/12 Westerschelde 06/04/12


Name

ESHIPS BAINUNAH

Previous names

2005 Launch as: Eships Mazroui

2005 - 2015 Eships Bainunah

Type

Tanker for oil and chemicals

IMO-number

9293325

Call sign

ZDIQ7

Flag

Gibraltar

Port of registry

Gibraltar

Previous flags

2005 - 2005 Turkey

2005 - 2008 Marshall Islands

2008 - 2015 Gibraltar

GT

5.039 t

Suez: 5.185 t

DWT

Summer: 8.124,92 t

Winter: 7.869,13 t

NT

2.398 t

Length

121,66 m overall

116,08 m between perpendiculars

Breadth

17,23 m extreme

Draught

Summer: 6,85 m

Air draft

Light ship: 31,27 m

Normal ballast: 27,70 m

At loaded summer deadweight: 26,39 m

Keel to masthead

33,25 m

Freeboard

Summer: 1.954 mm

Winter: 2.097 mm

Tropical: 1.811 mm

Light ship: 6.825 m

Depth

8,80 m moulded

Speed

13,5 knots

Built

2005

Keel laid

08.2003

Launch date

03.2005

Delivery date

09.05.2005

Builder

Anadolu Shipyard (Anadolu Deniz Insaat Kizaklari San. ve Tic. Ltd. Sti)
Istanbul
Turkey

Yard number

187

Hull material

Steel

Hull type

Double hull

Main engine

1x MAK 8M32C - 8 cylinder diesel engine 3.840 kW

Propellers

1x Controllable pitch propeller ZF Marine KH 1070

Boilers

1x Thermal oil heater, exhaust heated (Economizer)

2x Thermal oil heater, oil fired

Generators

3x MAN 2842 LE 301 main diesel generatorsets each 620 kW

Bow thruster

1x Framo 501,85 kW / 673 bhp at 1.450 rpm

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#2: 1.253,4 m³

Seg#3: 1.454,0 m³

Seg#4: 1.460,5 m³

Seg#5: 1.539,4 m³

Seg#6: 1.229,6 m³

Seg#7: 1.250,9 m³

Total cubic capacity 98%

8.187,8 m³ excluding slop tanks

Number of slop tanks

1

Slop tanks capacity 98%

249,1 m³

Segregation

13x Grades with separate lines and pumps

Tank coating

Epoxy

Pumps

Cargo:

12x Framo Sd 150 deepwell pumps - 380 m³/h each

1x Framo Sd 100 deepwell pump - 100 m³/h

Ballast:

2x Centrifugal pumps - 250 m³/h each

Discharging rate

1.500 m²/h

Manifolds

Bow to centre manifold: 66,10 m

Stern to centre manifold: 56,50 m

Distance bridge front to centre of manifold: 35,70 m

Distance between cargo manifold centres: 570 mm

Distance ships rail to manifold: 2.770 mm

Distance manifold to ships side: 2.790 mm

Top of rail to centre of manifold: 400 mm

Distance main deck to centre of manifold: 2.219 mm

Tank capacities

Ballast capacity: 3.641 m³

IFO: 434,7 m³

MDO: 76,2 m³

Anchor equipment

Length: 495,00 m

Diameter: 46 mm

Lifting equipment

1x Cargo hose crane - SWL 3,0 t

Max. outreach: 4,50 m

Manager

2007 - 2015 Anglo-Eastern Shipmanagement (S) Pte. Ltd.

Previous managers

2005 - 2005 Furtrans Denizcilik

2005 - 2006 International Tanker Management Ltd.

2006 - 2007 International Tanker Management Holding Ltd.

Operator

Emirates Ship Investment Company (ESHIPS)
Abu Dhabi
United Arab Emirates

Owner

2008 - 2015 Eships Bainunah Limited

Previous owners

2005 - 2005 Maks Denizcilik

2005 - 2008 Probo Gull Inc.

Registered owner

Eships Bainunah Limited
Trust Company Complex, Ajeltake Road, AJeltake Island Majuro MH 96960
Marshall Islands

Renamed

09.01.2015 African Sprinter

Malta, Valletta - Call sign: 9HA3840

Latest data adjustment

29 July 2015
