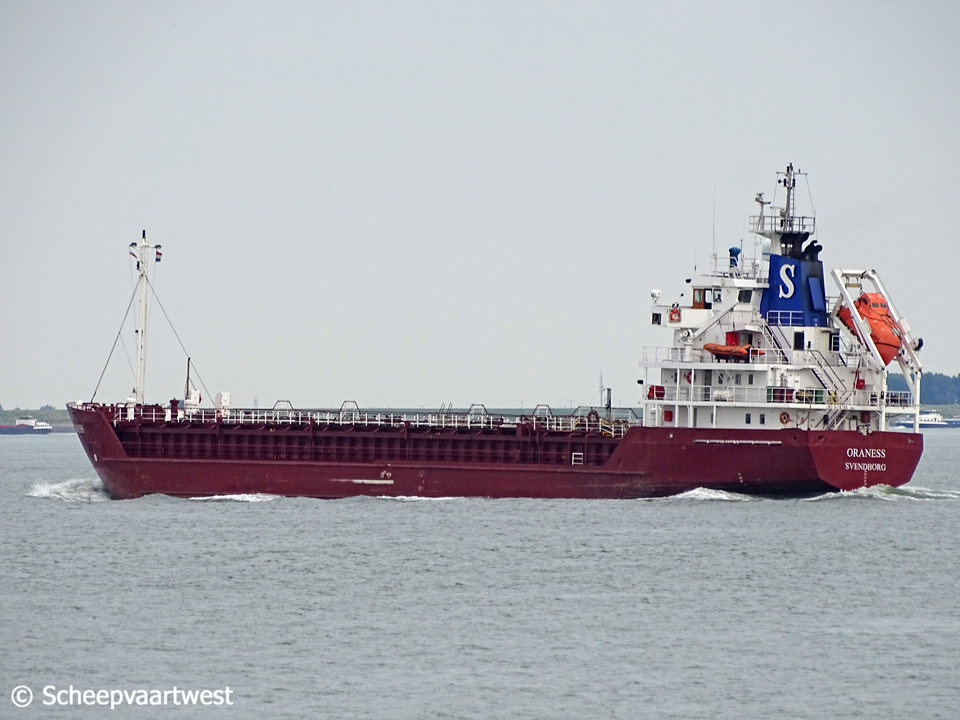

Oraness 01

Westerschelde 28 August 2018



Name

ORANESS

Previous names

1985 - 1985 Elisa Von Barssel

1985 - 1986 Flagship I

1986 - 1988 Lia Ventura

1988 - 1995 Inisheer

1995 - 1999 Dunkerque Express

1999 - 2002 Inisheer

Type

Chemical tanker

IMO-number

8416786

Call sign

OWAB2

Flag

Denmark

Port of registry

Svenborg

Previous flags

2014 - 2014 Germany

GT

1.804 t

DWT

Summer: 2.586 t

Winter: 2.491 t

NT

950 t

Displacement

Summer: 3.732 t

Winter: 3.641 t

Length

78,63 m overall

74,71 m between perpendiculars

Breadth

12,60 m extreme

Draught

Summer: 4,79 m

Winter: 4,69 m

Keel to masthead

25,00 m

Air draft

20,21 m At loaded summer deadweight

Freeboard

Summer: 730 mm

Winter: 830 mm

Depth

5,40 m moulded

Speed

12,0 knots

Built

1985

Rebuild: 2001

Keel laid

02/08/1984

Launch date

21/12/1984

Date of completion

22/04/1985

Builder

Tille Scheepsbouw B.V.
Kootstertille
The Netherlands

Yard number

246

Hull material

Steel

Hull type

Double hull

Main engine

1x Mak 8M332 - 8 cylinder combustion engine 1.263 kW / 1.770 hp

Builder: Krupp Mak Diesel GmbH & Co.KG, Kiel - Germany

Propellers

1

Bow thruster

110 hp

Number of cargo tanks

10

Total cargo tank cap. 98%

2.924,20 m³

Slop tank capacity 98%

74 m³

segregation with double valve 98%

Seg#1: 284,9 m³ (1 P)
Seg#2: 284,9 m³ (1 S)
Seg#3: 295,1 m³ (2 P)
Seg#4: 298,3 m³ (2 S)
Seg#5: 297,2 m³ (3 P)
Seg#6: 295,8 m³ (3 S)
Seg#7: 295,3 m³ (4 P)
Seg#8: 297.6 m³ (4 S)
Seg#9: 287,3 m³ (5 P)
Seg#10: 287,8 m³ (5 S)

Number of slop tanks

1

Pumps

6x Cargo pumps each 250 m³/h

2x ballast pumps each 300 m³/h

Manifolds

Bow to centre manifold: 50,00 m

Distance between cargo manifold centres: 650 mm

Distance ships rail to manifold: 2.590 mm

Distance manifold to ships side: 2.590 mm

Top of rail to centre of manifold: 2.000 mm

Distance main deck to centre of manifold: 840 mm

Tank capacities

Gas oil: 93,25 m³

Water ballast: 1.237 m³

Fresh water: 48 m³

Manager

Rederiet M.H.Simonsen ApS
Christiansmindevej 76
5700 Svendborg
Denmark

Technical operator

M.H.Simonsen Aps
Christiansmindevej 76 DK
5700 Svendborg
Denmark

Commercial operator

Simonsen Chartering
Christiansmindevej 76 DK
5700 Svendborg
Denmark

Registered owner

Rederiet M.H.Simonsen ApS
Christiansmindevej 76
5700 Svendborg
Denmark

Disponent owner

Simonsen Chartering ApS
Christiansmindevej 74
5700 Svendborg
Denmark

Latest data adjustment

16 November 2018
