Chem Altamira IMO 9705744 04

Westerschelde 21 November 2018

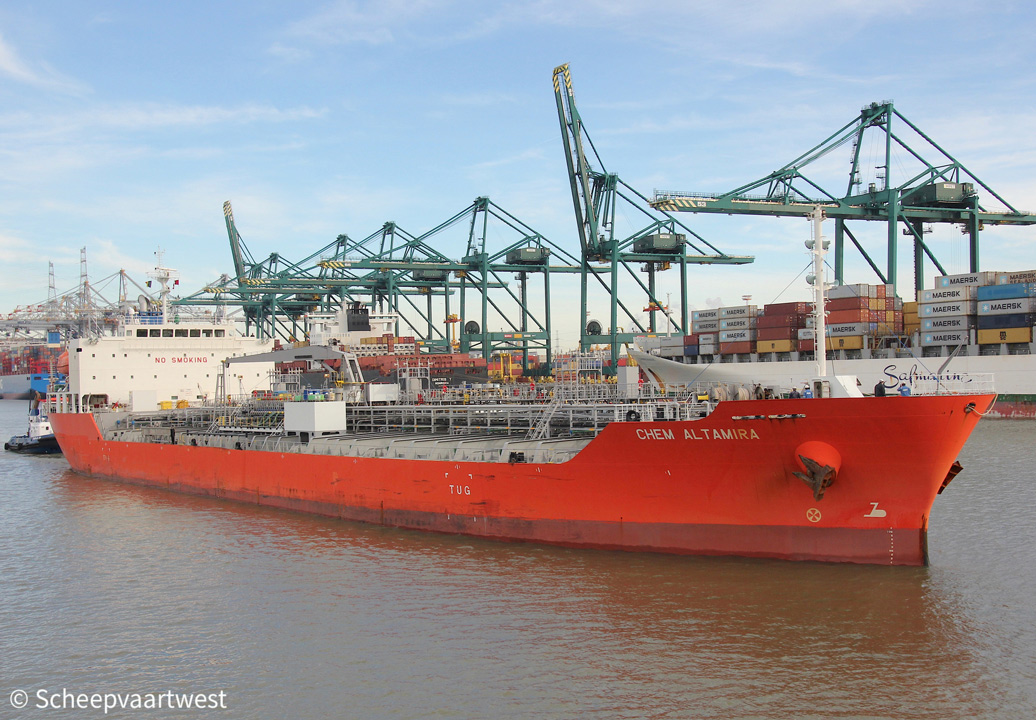

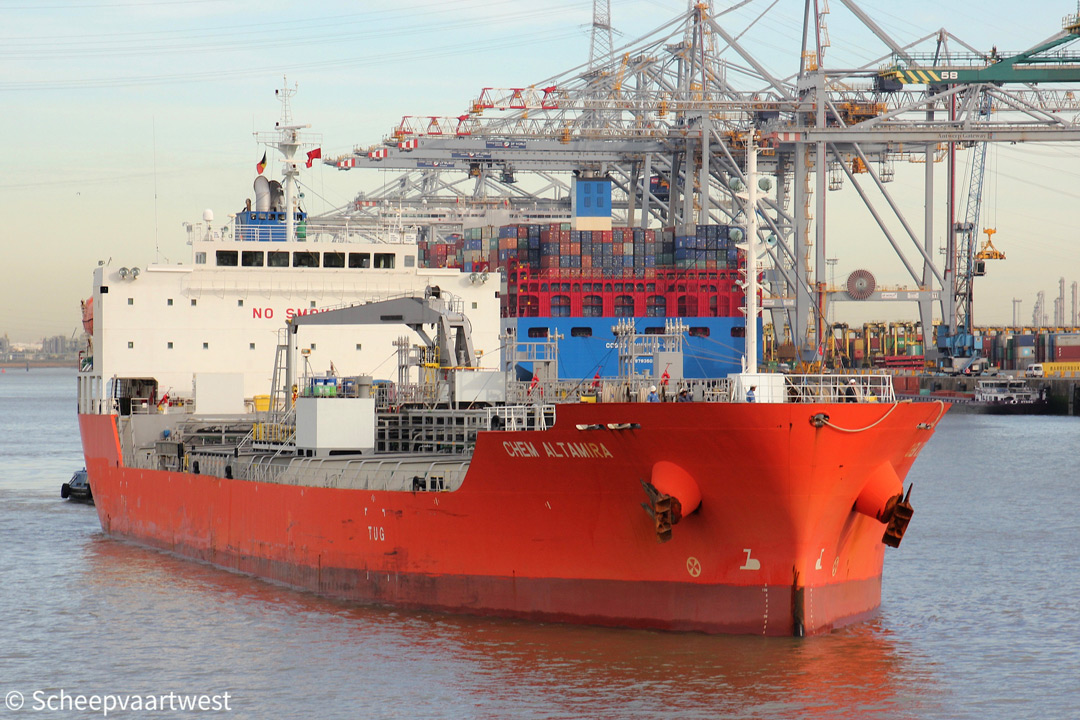

Chem Altamira 01   Chem Altamira 02   Chem Altamira IMO 9705744 03
Antwerpen 06/11/18   Antwerpen 06/11/18   Westerschelde 26/05/18


Name

CHEM ALTAMIRA

Type

Oil/Chemical carrier

IMO-number

9705744

Call sign

D5FU2

Flag

Liberia

Port of registry

Monrovia

GT

12.129 t registered

DWT

Summer: 19.996,5 t

NT

6.255 t registered

Length

145,00 m overall

Breadth

24,20 m moulded

Draught

Max: 9,78 m

Moulded L x B x D

139,00 x 24,20 x 13,20 m

Registered L x B x D

139,36 x 24,20 x 13,20 m

Keel to mast end

37,15 m

Freeboard

Summer: 3.445 mm

Depth

13,20 m moulded

Speed

Service: 14,5 knots

Max: 16,1 knots

Built

2015

Keel laid

14/04/2014

Launch date

02/10/2014

Date of completion

13/01/2015

Builder

KitaniHon Shipbuilding Co., Ltd.

Hachinohe

Japan

Yard number

568

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi-Akasaka 6UEC43LSII - 2 stroke single acting 6 cylinder 430 x 1.500 mm combustion engine 4.900 kW / 6.662 hp at 125,0 rpm

Manufacturer: Akasaka Diesels Ltd., Yaizu - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1x Fixed propeller aft

Boilers

1x Auxiliary water tube boiler - 9,0 kg/cm²

Heating Surface: 184,2 m²

1x Economizer EGE - 14,0 kg/cm²

Heating Surface: 313,1 m³

Manufacturer: Miura Machine Co., Ltd., Fushiki - Japan

Generators

3x Main diesel generatorsets each 530 kW / 688 kVA

Bow thruster

1x 700 kW

Number of tanks

20

Number of pumps

20x Cargo pumps each 250 m³/h

Cargo yank capacity

Liquid: 22.385 m³

Tank capacities

Fuel oil: 1.147,4 m³

Fresh water: 415 m³

Water ballast: 7.116,7 m³

Manager

ASM Maritime B.V.

Strawinskylaan 1979, Tower I, Level 7

1077 XX Amsterdam

The Netherlands

Operator

ACE Ships Management BV

Strawinskylaan 1979, Tower I, Level 7

1077 XX Amsterdam

The Netherlands

Registered owner

Chem Altamira SA

Monrovia

Liberia

Latest data adjustment

11 December 2022
