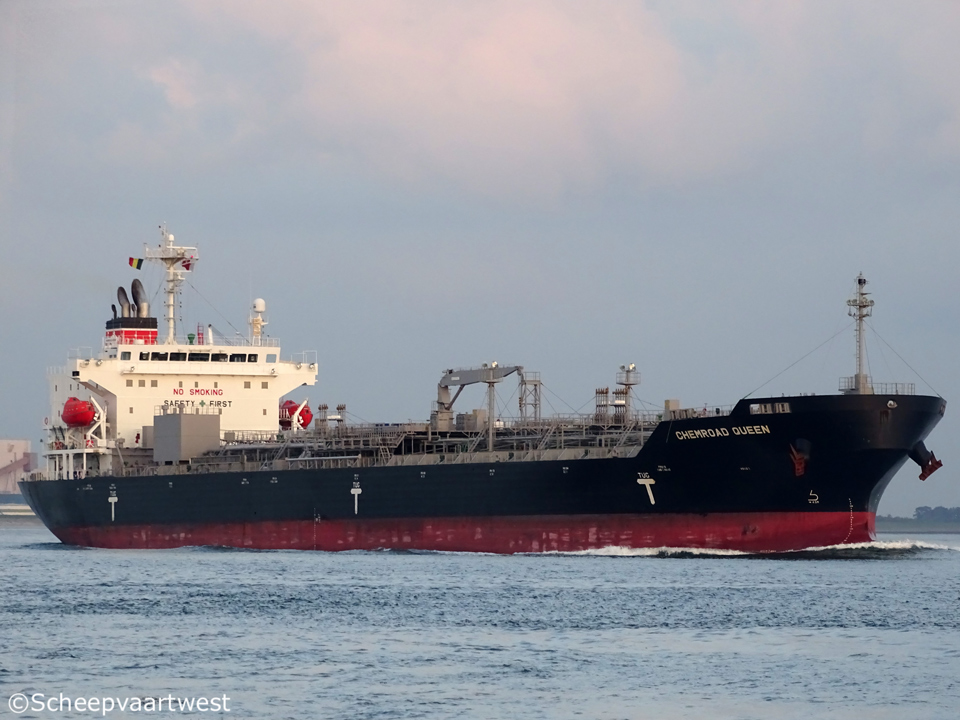

Chemroad Queen 01

Westerschelde 28 September 2017



Name

CHEMROAD QUEEN

Type

Oils, chemicals and molasses vessel

IMO-number

9737151

Call sign

3FTY4

Flag

Republic of Panama

Port of registry

Panama City

GT

21.255 t registered

DWT

Summer: 35.847 t

NT

10.204 t registered

Length

179,53 m overall

Breadth

27,40 m extreme

Draught

11,57 m

Moulded L x B x D

172,00 x 27,40 x 16,30 m

Registered L x B x D

172,99 x 27,40 x 16,30 m

Freeboard

Summer: 4.765 mm

Depth

13,60 m moulded

Speed

16,0 knots

Built

2015

Keel laid

21/01/2015

Launch date

24/04/2015

Date of completion

08/09/2015

Builder

Shin Kurushima Dockyard Co., Ltd.
Japan

Yard number

5885

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.300 mm combustion engine 6.870 kW at 94,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 485 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 24,38 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators - 2.934 kVA

Cargo tank capacity

Liquid: 39.111,62 m³

Tank capacities

Fuel oil: 1.777,84 m³

fresh water: 632,82 m³

Manager

IIno Marine Service Co., Ltd.

Operator

Iino Kaiun Group - Chemical Tanker Division

Registered owner

Cassiopeia Tankers S.A.

Latest data adjustment

23 August 2017
