Westerschelde 07 January 2019 |
 |
 |
 |
||
| Westerschelde 07/01/19 | Westerschelde 07/01/19 | Westerschelde 02/01/19 | ||
|
Name |

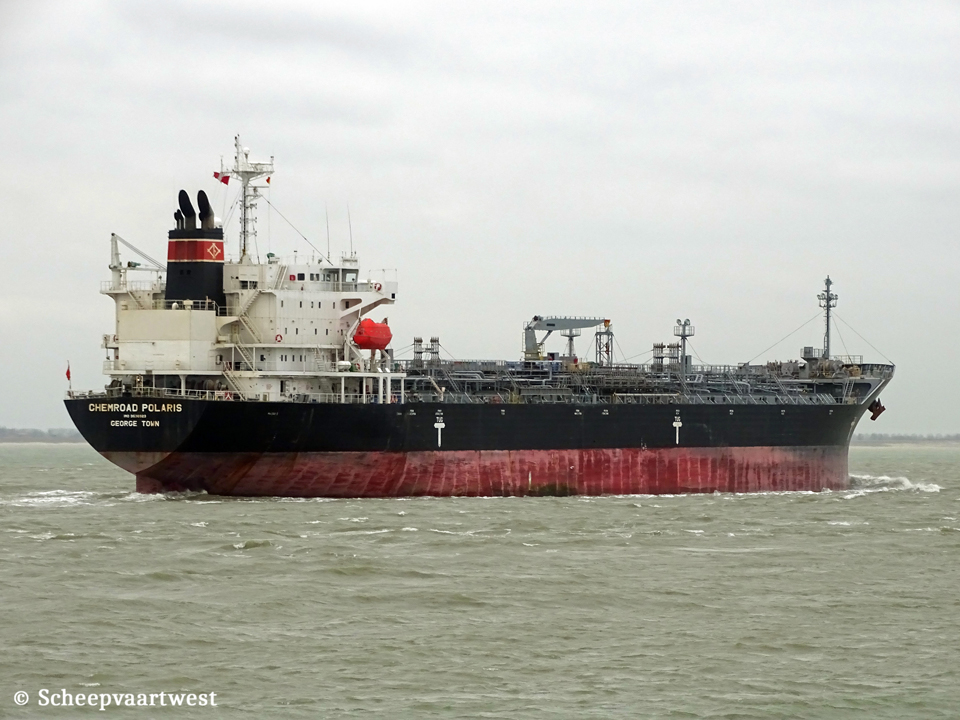

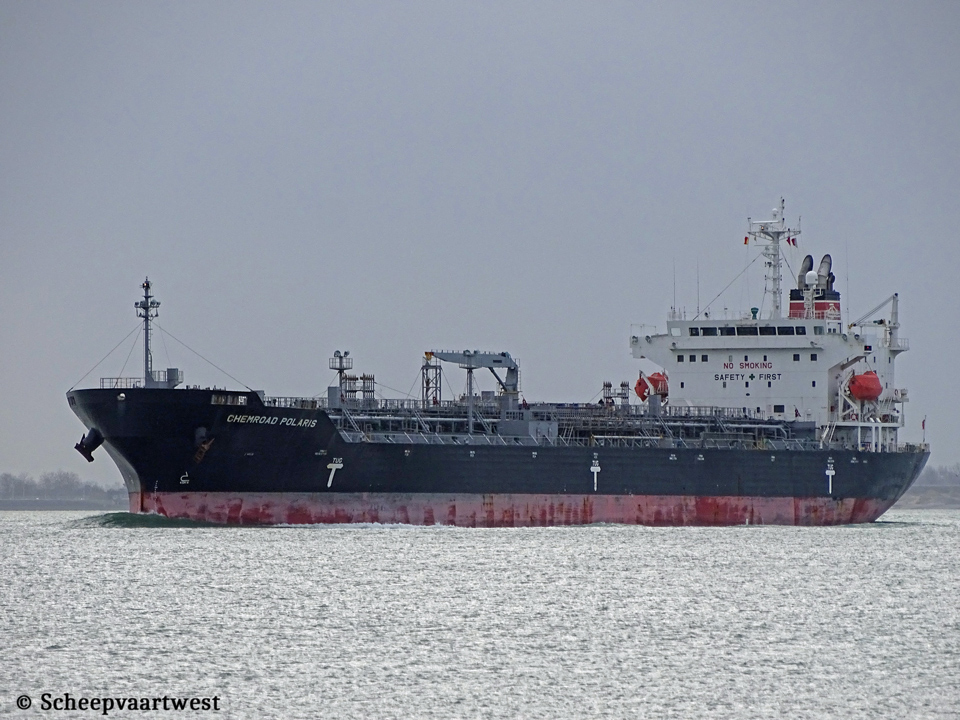

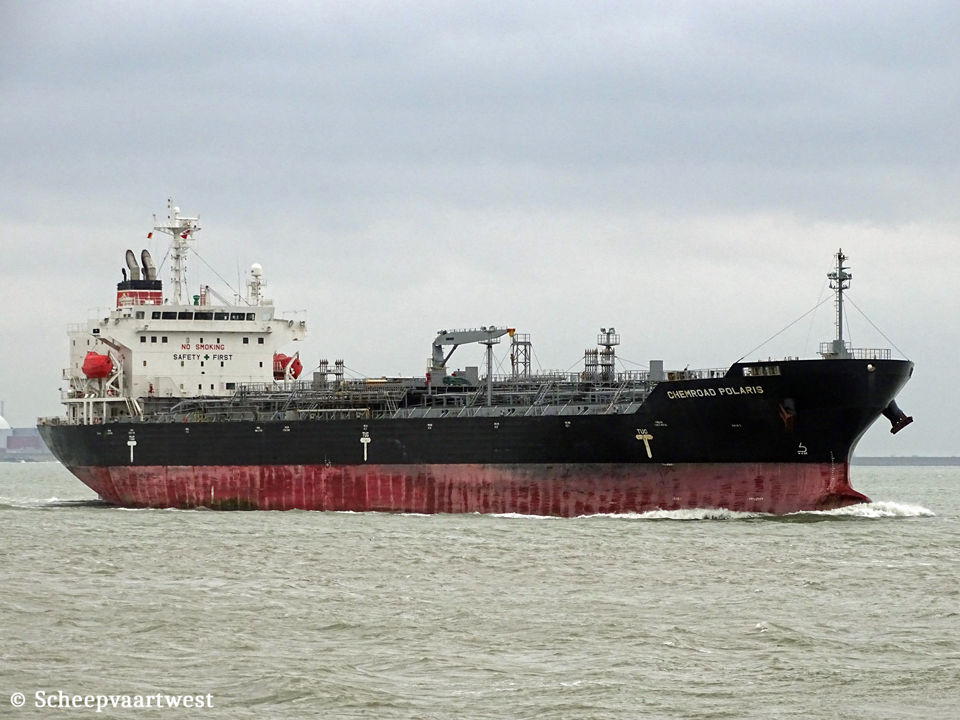

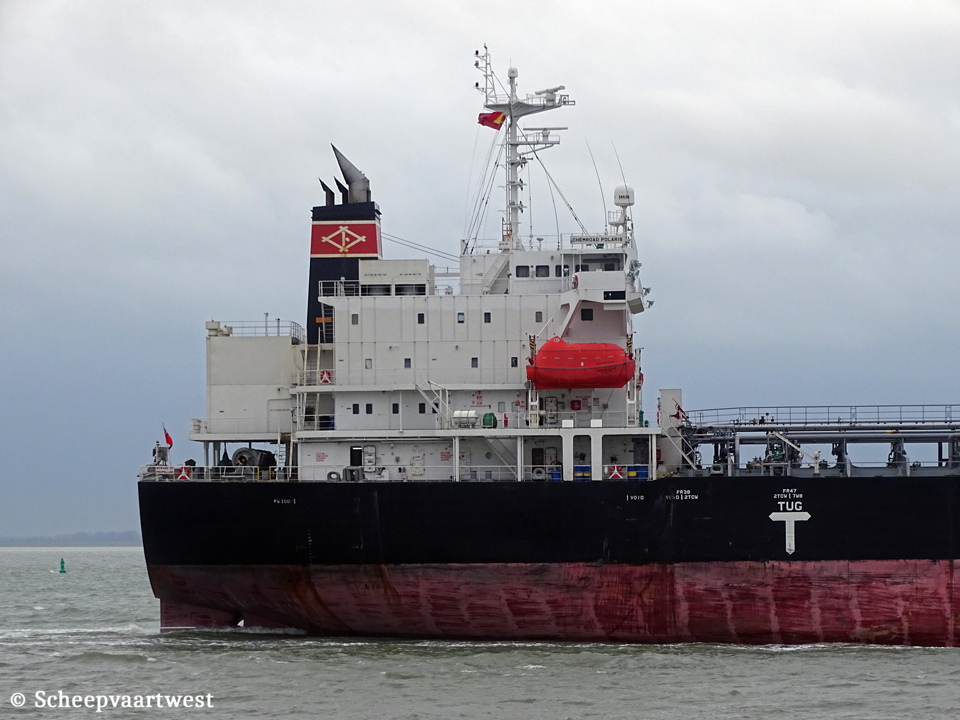

CHEMROAD POLARIS |
|
Type |
Oil and Chemical tanker |
|
IMO-number |
9536923 |
|
Call sign |
3EJK |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2014 - 2019 Cayman Islands, George Town - Call sign: ZGDM4 |
|
GRT |
21.198 t |
|
DWT |
Summer: 35.923 t |
|
NRT |
10.204 t |
|
Length |
179,53 m overall |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,57 m |
|
Moulded L x B x D |
172,00 x 27,40 x 16,30 m |
|
Registered L x B x D |
172,99 x 27,40 x 16,30 m |
|
Keel to mast end |
43,86 m |
|
Freeboard |
Summer: 4.765 mm |
|
Depth |
16,30 m moulded |
|
Speed |
Max: 15,8 knots |
|
Built |
2014 |
|
Keel laid |
21/12/2010 |
|
Launch date |
07/06/2013 |
|
Date of completion |
04/02/2014 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5683 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe 6UEC50LSH - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 6.870 kW / 9.340 hp at 109,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 510 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,98 MPa Evaporation: 18,90 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 750 ekW |
|
Number of tanks |
16 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 39.113 m³ |
|
Number of pumps |
16x Cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel oil: 1.765,00 m³ Fresh water: 633,18 m³ |
|
Crew |
22 |
|
ISM & commercial manager |
Iino Marine Service Co., Ltd. Iino Building, Uchisaiwaicho 2-1-1 Chiyoda-ku Tokyo Japan 100-0011 |
|
Registered owner |
Pyxis Line Shipping SA - Republic of Panama Care of Iino Marine Service Co., Ltd. Iino Building, Uchisaiwaicho 2-1-1 Chiyoda-ku Tokyo Japan 100-0011 |
|
Latest data adjustment |
27 September 2023 |
