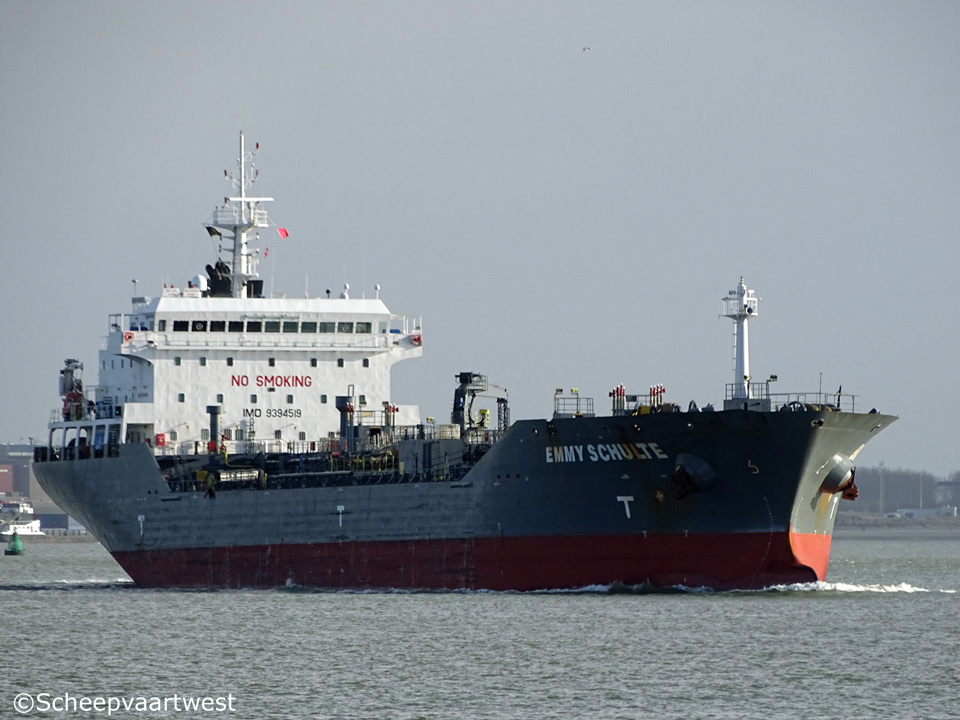

Emmy Schulte 01

Westerschelde 02 January 2017



Name

EMMY SCHULTE

Type

Oil carrier

IMO-number

9394519

Call sign

2BSM9

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

Previous flags

09.2003 - 12.2010 Isle of Man - United Kingdom, Douglas

12.2010 -12.1013 United Kingdom, London - Call sign: 2BSM9

GT

11.233 t registered

DWT

Summer: 16.669 t
Suez: 11.980,88 t

NT

5.041 t registered

Panama: 9.455 t

Suez: 10.299,57 t

Length

145,15 m overall

135,60 m between perpendiculars

Breadth

23,00 m moulded

Draught

8,80 m

Freeboard

3.715 mm

Depth

12,50 m moulded

Speed

Service: 14,5 knots

Max.: 17,1 knots

Built

2009

Keel laid

20.05.2006

Launch date

09.08.2008

Delivery date

10.03.2009

Builder

Jiangxi Jiangzhou Union Shipbuilding Co., Ltd.

China

Yard number

JZ1007

Hull material

Steel

Hull type

Double hull

Bulkheads

Water tight: 7

Oil tight: 10

Main engine

1x MAN-B&W-STX 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.440 kW at 173 rpm

Manufacturer: STX Engine Co., Ltd. (B&W), Changwon - South Korea

Propellers

1x Fixed propeller

Manufacturer: Wartsila CME Zhenjiang Propeller Co., Ltd.

Boilers

2x Auxiliary oil fired boiler - 7,0 bar

2x Exhaust gas economizer - 7,0 bar

Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 600 kW

Manufacturer: Wuxi Fenxi Electrical Machine Co. Ltd.

Bow thruster

1x 738 kW

Number of cargo tanks

15

Total cargo tank capacity 100%

21.948,16 m³

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 4

Fresh water: 3

Chain: 2

Mineral oil: 1

Waste water: 1

Tank capacities

Diesel Oil: 92,12 m³ / 79,22 t

Freshwater: 292,17 m³

Fuel Oil: 721,97 m³ / 707,53 t

Lube Oil: 85,28 m³ / 77,09 t

Tank Ballast: 7.440 m³ / 7.626 t

Lifting equipment

1x Cargo hose handling crane - SWL 8,0 t

1x Provision crane - SWL 2,0 t

Manufacture: Zhenjiang Marine Auxiliary Machinery Works

1x E/R overhead crane - SWL 2,0 t

Manufacture: Jiang Marine Machinery Factory

Crew size

24

Operator

Bernhard Schulte Shipmanagement (UK) Limited
3 Hedley Court - Orion Way, Orion Business Park
Newcastle Upon Tyne, NE29 7ST
United Kingdom

Owner

Ronague Shipping Limited
Athens
Greece

Latest data adjustment

09 March 2017
