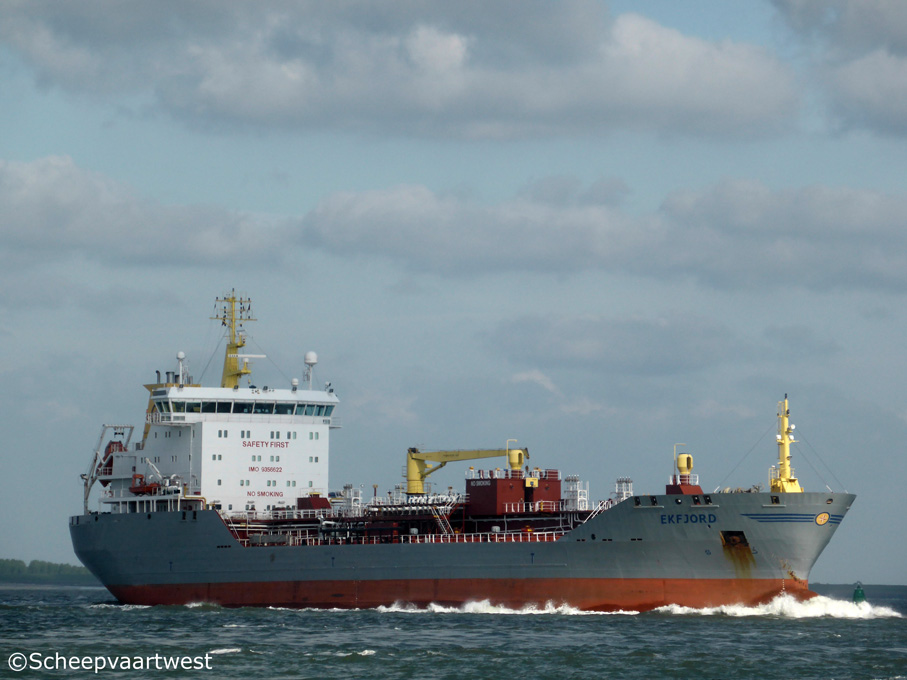

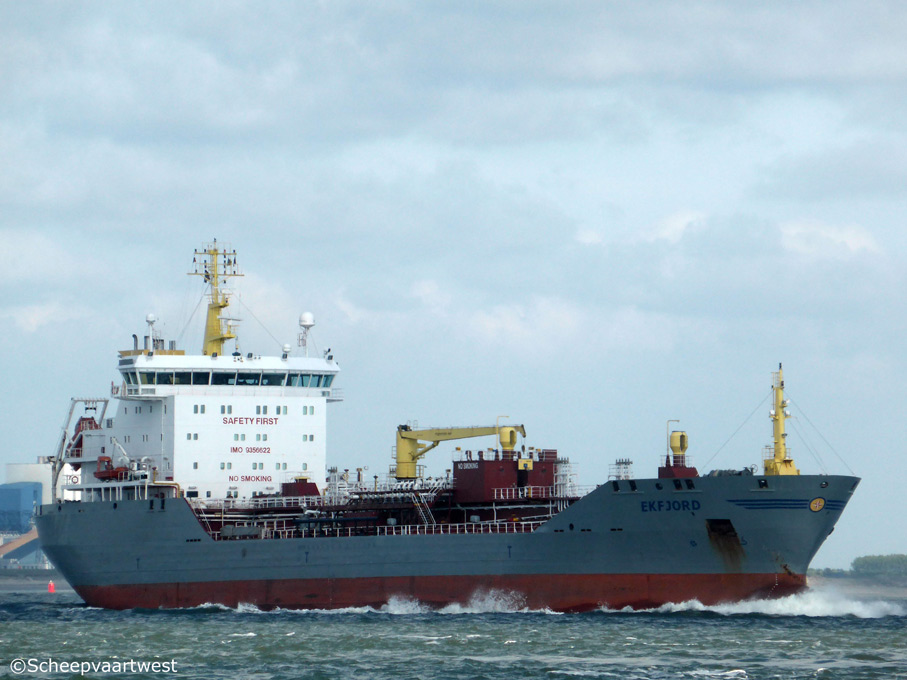

Westerschelde 13 May 2014 |
 |
| Westerschelde 13/05/14 |
|
Name |
EKFJORD |
|
Previous names |
2009 - 03.2010 Gan Sky |
|
Type |
Tanker for oil products |
|
IMO-number |
9356622 |
|
Call sign |
LAJX7 |
|
Flag |
Norway |
|
Port of registry |
Arendal |
|
Previous flags |
2009 - 2009 Liberia, Monrovia 2009 - 2010 Malta, Valletta |
|
GT |
12.162 t |
|
DWT |
Summer: 17.006 t |
|
NT |
5.491 t |
|
Length |
144,05 m overall 133,80 m between perpendiculars |
|
Breadth |
23,00 m |
|
Draught |
8,40 m |
|
Depth |
12,40 m |
|
Speed |
Max. 14,8 knots |
|
Built |
2009 |
|
Keel laid |
20.12.2006 |
|
Launch date |
03.03.2008 |
|
Date of completion |
06.01.2009 |
|
Builder |
Celik Tekne Shipyard |
|
Yard number |
65 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W 6L48/60B - 6 cylinder diesel engine 6.300 kW / 8.565 bhp Builder: MAN Diesel & Turbo SE |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite (combined) - type NG-CB 1500-12 bar 1x Auxiliary boiler, oil/gas fired GWT 10000-9 bar Builder: Garioni Naval, Castelmella - Italy |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
3x Mitsubishi S12A2-M(P)TK diesel generatorsets Builder: Mitsubishi Turbocharger and Engine Europe B.V. |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 187 kVA Builder: MAN Truck & Bus AG GE Motoren-Nürnberg - Germany |
|
Bow thruster |
1x 800 kW |
|
Number of tanks |
12 |
|
Total tank capacity |
19.594 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
Unloading capacity per tank: 358 m³/h Total unloading capacity: 2.100 m³/h |
|
Tank capacities |
Ballast: 7.677 m³ |
|
Anchor equipment |
Length: 544,40 m Diameter: 58 mm |
|
Manager |
OSM Ship Management AS |
|
Previous managers |
2009 - 2010 Dunya Denizcilik ve Ticaret A.S. |
|
Operator |
Ektank AB Gothenburg |
|
Owner |
Ekships AB Sweden |
|
Registered owner |
2009 - 2009 Gan-Sky Shipping S.A., Valletta - Malta 2009 - 2010 Gansword Shipping Ltd. |
|
Latest data adjustment |
22 March 2016 |
