Westerschelde 17 February 2016 |
 |
 |
|
| Westerschelde 16/01/16 | Westerschelde 16/01/16 | |
|
Name |

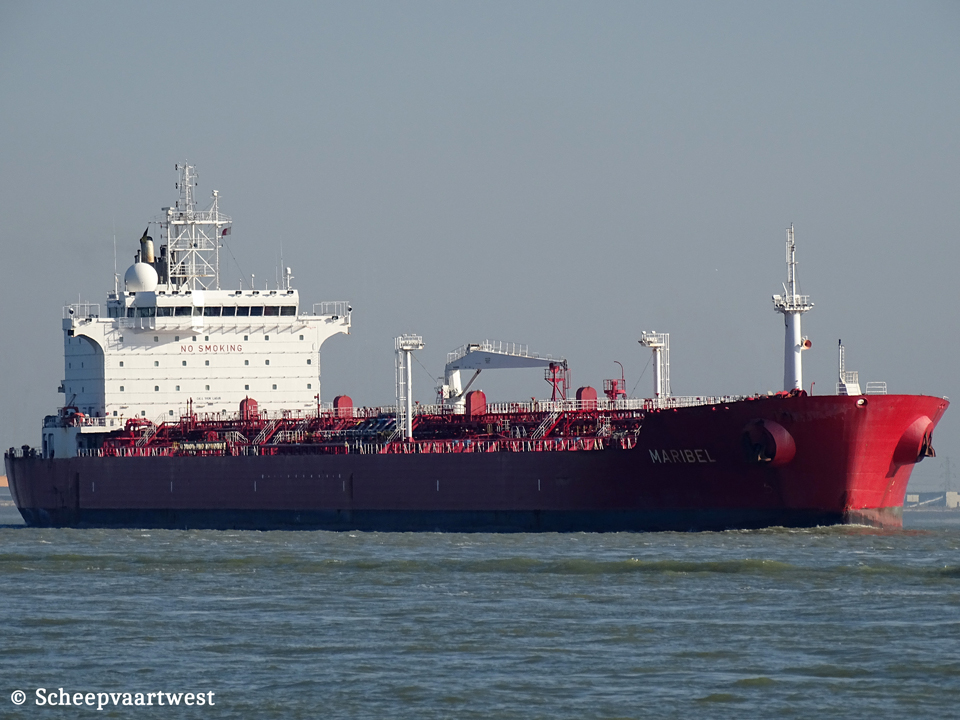

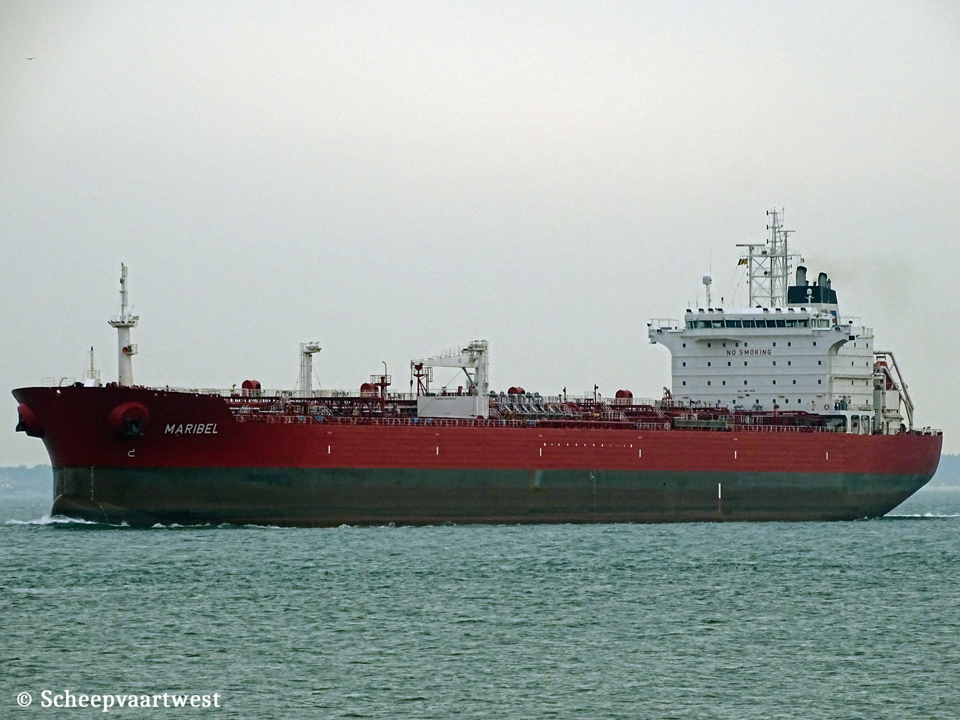

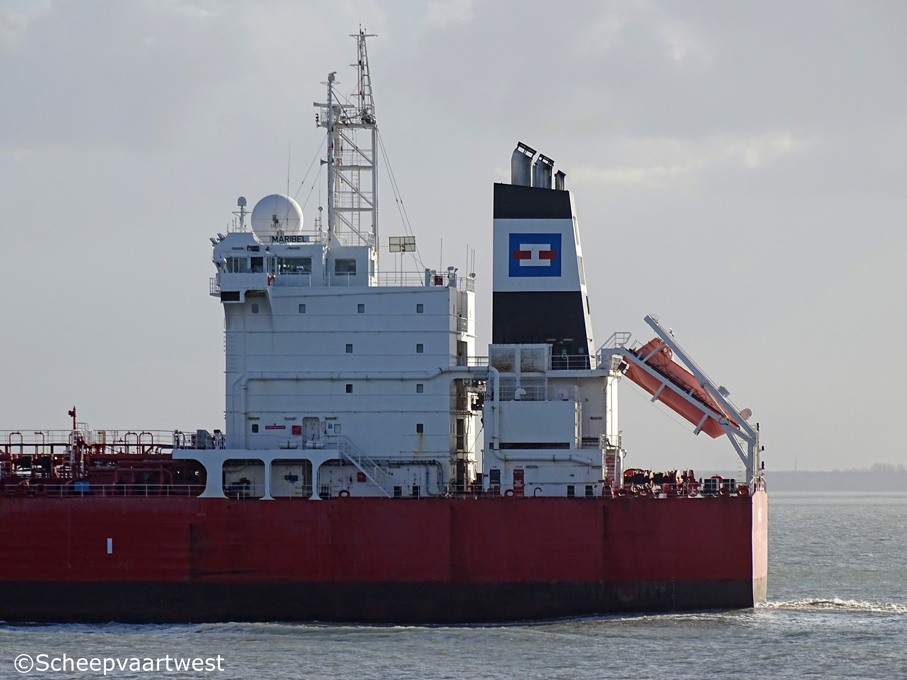

MARIBEL |
|
Type |
Tanker for oil |
|
IMO-number |
9326873 |
|
Call sign |
LAGU6 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
42.835 t |
|
DWT |
Summer: 74.998 t |
|
NT |
22.049 t |
|
Length |
228,50 m overall 220,00 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
Summer: 14,18 m |
|
Depth |
20,45 m moulded |
|
Speed |
Max.: 16,4 knots Service: 14,5 knots |
|
Built |
2007 |
|
Keel laid |
03/06/2006 |
|
Launch date |
25/11/2006 |
|
Date of completion |
25/04/2007 |
|
Builder |
Brodosplit Shipyard Ltd. Split Croatia |
|
Yard number |
449 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW at 105,0 rpm |
|
Propellers |
1x Controllable pitch propeller- 4 blades Diameter: 6.800 mm |
|
Boilers |
1x Auxiliary boiler, composite - 7,0 bar 1x Auxiliary boiler, oil/gas fired - 7,0 bar Builder: TPK Nova, Zagreb - Croatia |
|
Generators |
3x MAN 6L23/30H diesel generatorsets each 1.137 kVA / 910 kW at 900 rpm |
|
Emergency generator |
1x Caterpillar 3406 diesel generatorset 310 kVA / 248 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 100% |
Tank 1–P: 5.591,5 m³ Tank 1–S: 5.594,8 m³ Tank 2–P: 7.223,4 m³ Tank 2–S: 7.226,5 m³ Tank 3–P: 7.239,8 m³ Tank 3–S: 7.242,9 m³ Tank 4–P: 7.239,8 m³ Tank 4–S: 7.242,9 m³ Tank 5–P: 7.239,8 m³ Tank 5–S: 7.242,9 m³ Tank 6–P: 7.144,0 m³ Tank 6–S: 7.147,1 m³ Total: 83.375,2 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 100% |
Slop tank-P: 1.009,9 m³ Slop tank-S: 1.286,9 m³ |
|
Number of residual tanks |
1 278,1 m³ |
|
Nupber of pumps |
FRAMO Submerged Hydraulically driven pumps: 12x Cargo pumps 1.000 m³/h each 2x Slop pumps 300 m³/h each 1x Residual pump 80 m³/h 1x Portable pump 200 m³/h 2x FRAMO submerged ballast pumps each 1.500 m³/h 2x General Service pumps 260 m³/h |
|
Tank capacities |
Ballast: 31.818 m³ Heavy fuel: 2.228 t Diesel oil: 164 t Fresh water: 245 m³ |
|
Anchor equipment |
2x Stockless bow anchors, weight 11.000 kg each Length: 687,50 m Diameter: 81 mm |
|
Accommodation |
For 30 persons plus 6 Suez crew |
|
Manager |
Thome Ship Management Pte Ltd. |
|
Registered owner |
LR Ice Shipping Seven Ltd. |
|
Previous owners |
2007 - 2007 Marinvest Shipping AB |
|
Renamed |
2021 Sunny Lion Marshall island, Majuro - Call sign: V7A4997 Owner: Sunny Lion Shipping LLC Manager: Scorpio Marine Management (India) Pvt. |
|
Latest data adjustment |
12 May 2023 |
