| Antwerpen 20 May 2011 |
|
Name |

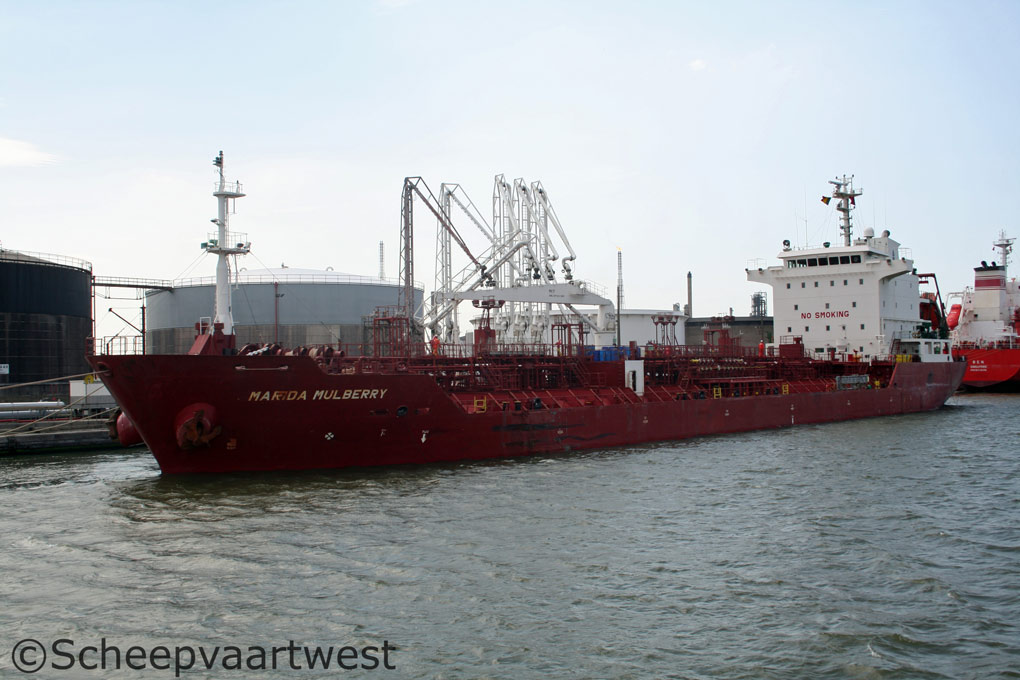

MARIDA MULBERRY |
|
Previous names |
Sichem Amsterdam |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9474151 |
|
Call sign |
V7PL7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
8.505 t registered Suez: 9.115,36 t |
|
DWT |
13.210 t |
|
NT |
4.055 t registered Panama: 7.189 t Suez: 6.992,56 t |
|
Length |
127,90 m overall 119,70 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Freeboard |
2.762 mm |
|
Depth |
11,50 m moulded |
|
Built |
2008 |
|
Keel laid |
04.03.2008 |
|
Launch date |
18.08.2008 |
|
Date of completion |
01.11.2008 |
|
Delivery |
04.11.2008 |
|
Builder |
Jinse Shipbuilding Co. Ltd. |
|
Yard number |
1012 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Oil tight: 7 Water tight: 9 |
|
Main engine |
1x STX-MAN B&W 6S35MC-MK7 - 6 cylinder 350 x 1.400 mm diesel engine - 6.060 kW at 173,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller |
1x bronze Manufacturer: Hae Yang Metal Co., Ltd. |
|
Steam piping system |
Auxiliary boiler type HB-12 - 10,0 bar Total heating surface: 2.956 m² Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x TNC6 455-6 diesel generatorsets each 480 kW Manufacturer: Uljanik-Tesu |
|
Cargo capacity |
14.203,97 m³ / 13.919,89 t |
|
Number of tanks |
Ballast: 15 Cargo oil: 14 Lubricating oil: 9 Fuel oil: 8 Fresh water: 6 Diesel oil: 4 Waste water: 3 Chain: 2 Sludge: 2 Hydraulic oil: 1 |
|
Tank capacities |
Diesel Oil: 74,78 m³ / 64,31 t Freshwater: 430,61 m³ Fuel Oil: 690,36 m³ / 676,55 t Hydraulic Oil: 4,46 m³ Lube Oil: 86,96 m³ / 78,27 t Water ballast: 5.212,31 m³ / 5.342,62 t |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t Manufacturer: MTC ENG Co., Ltd. 1x Provision crane - SWL 0,99 t Manufacturer: A Rim Machinery & Engineering Co., Ltd. |
|
Manager |
Shipcare Management GmbH & Co. KG |
|
Owner |
MT Marida Mulberry Schifffahrtsgesellschaft mBH & CO. KG |
