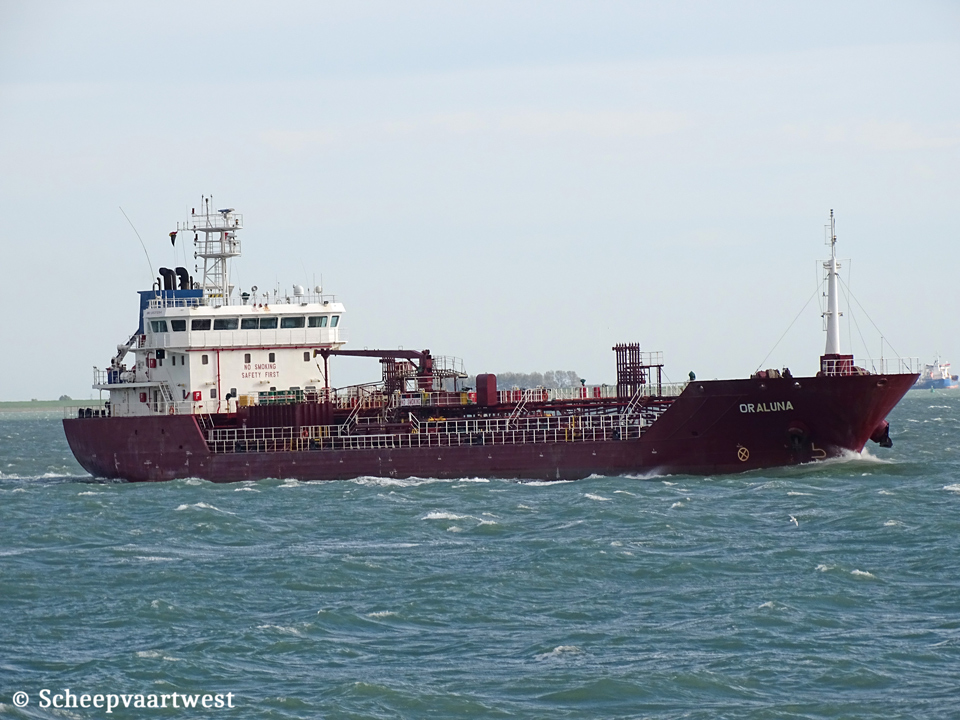

Westerschelde 30 April 2016 |
 |
 |
 |
 |
 |
||||

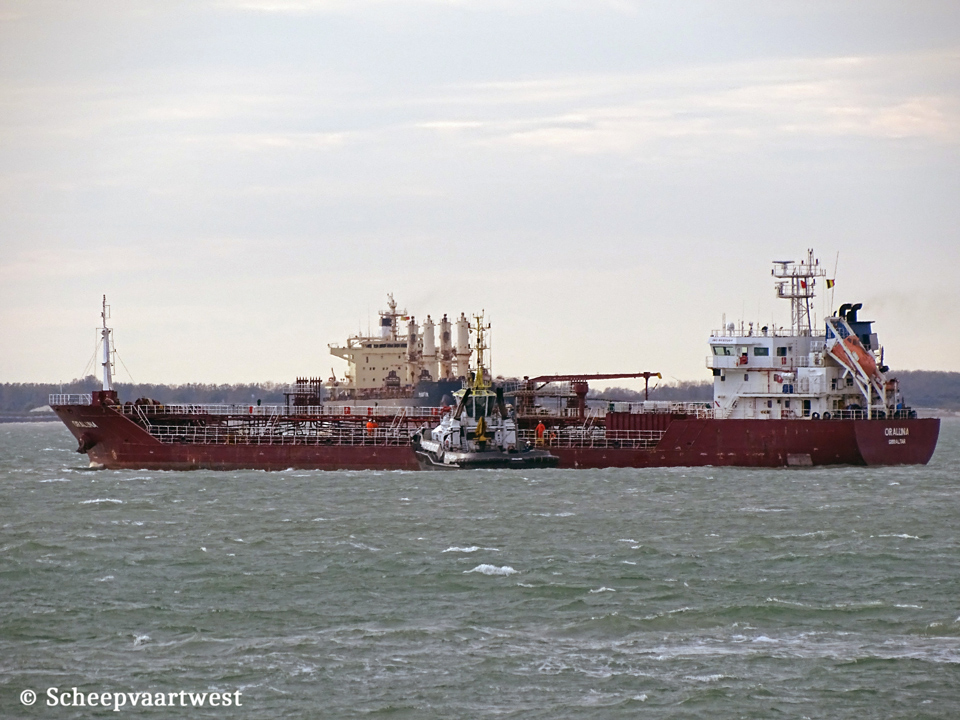

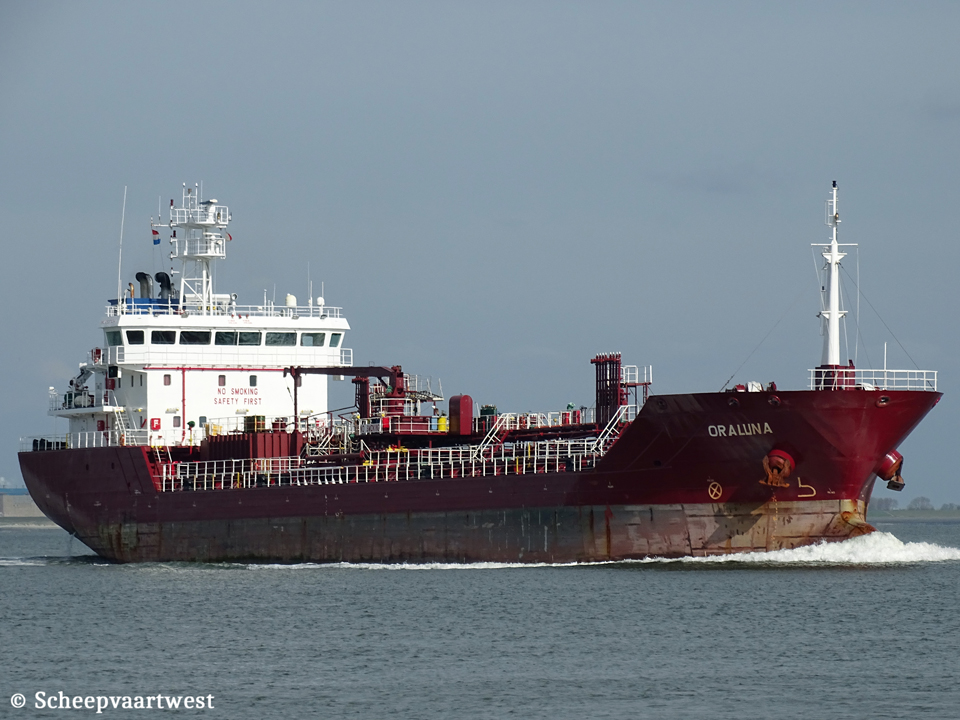

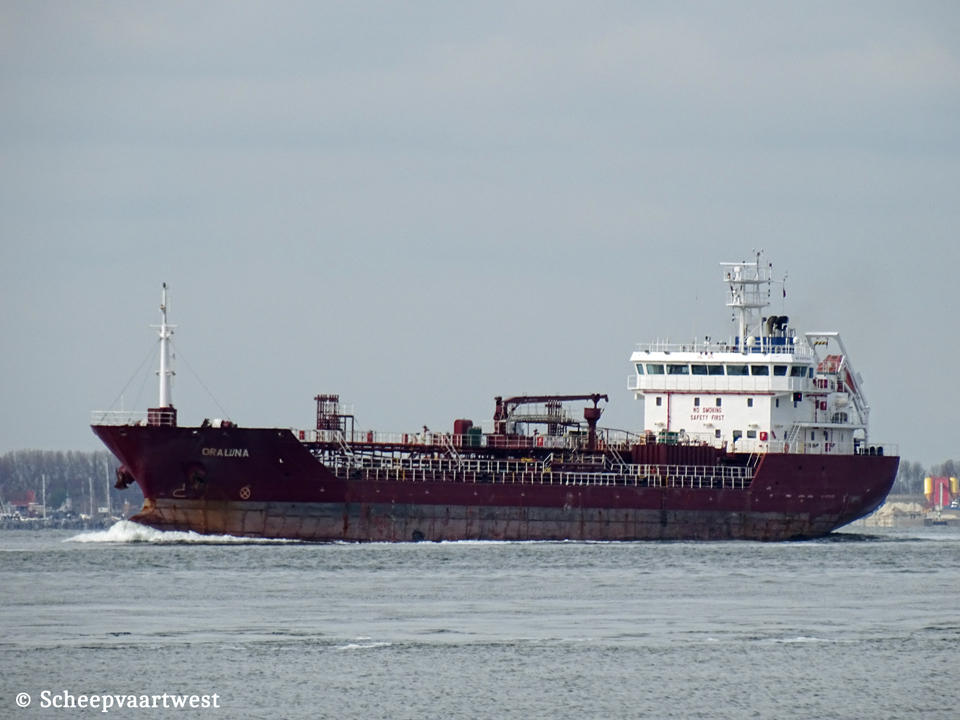

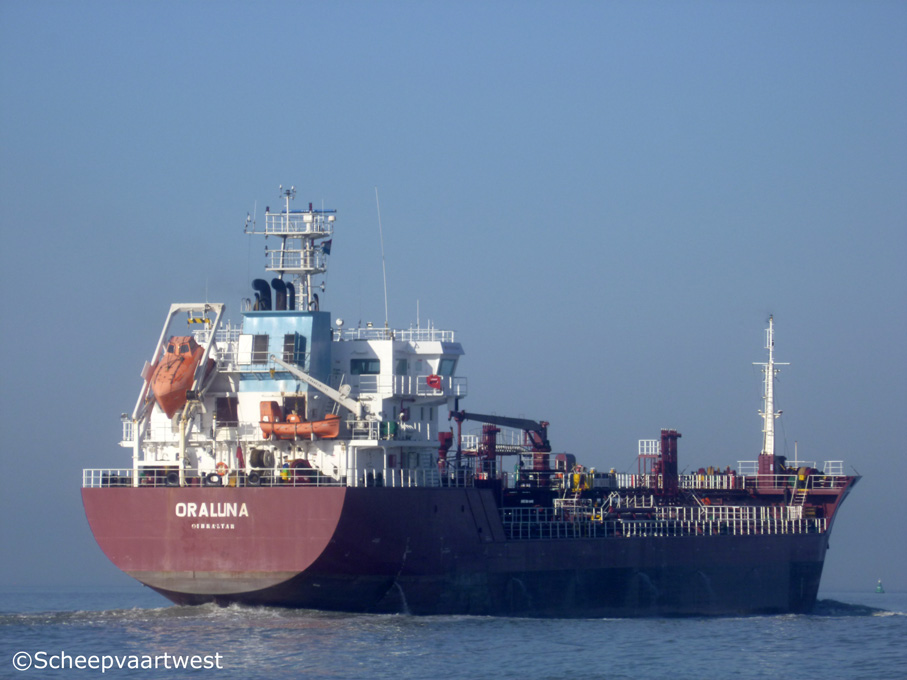

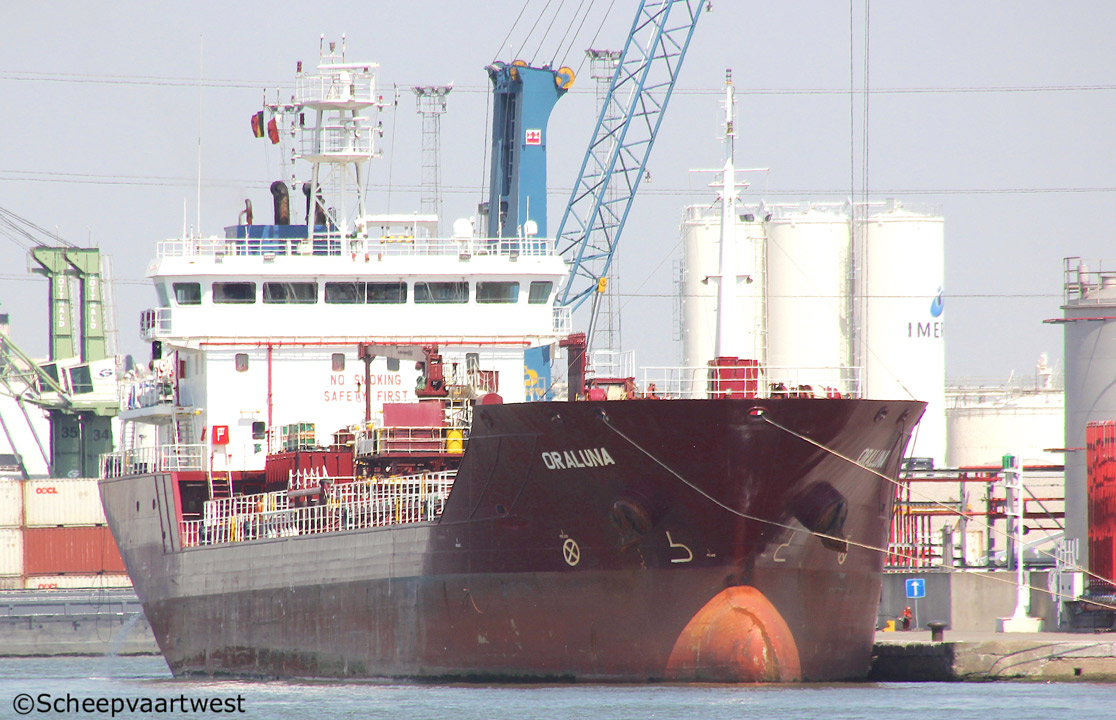

| Westerschelde 26/10/19 | Westerschelde 26/10/19 | Westerschelde 05/03/14 | Antwerpen 15/05/18 | Westerschelde 30/04/16 | ||||
|
Name |
ORALUNA |
|
Previous names |
2011 - 05/2012 Elka S 05/2012 - 07/2012 Oralina |
|
Type |
Tank for oil and chemicals |
|
Main products |
Chemicals |
|
IMO-number |
9537094 |
|
Call sign |
CQAN9 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2012 - 2012 Cyprus, Limassol - Call sign: 5BPH3 2012 - 2021 Gibraltar, Gibraltar - Call sign: ZDKZ6 |
|
GT |
3.953 t Suez: 4.269,45 t |
|
DWT |
Summer: 6.907 t Winter: 6.650 t |
|
NT |
1.940 t Suez: 3.487,24 t |
|
Displacement |
Summer: 9.130 t Winter: 8.897 t |
|
Length |
103,00 m overall 96,50 m between perpendiculars |
|
Breadth |
16,00 m extreme |
|
Draught |
Summer: 7,00 m Winter: 6,85 m |
|
Air draft |
25,81 m light ship 24,31 m normal ballast 21,31 m at loaded summer deadweight |
|
Keel to masthead |
28,31 m |
|
Freeboard |
Summer: 1.713 mm Winter: 1.846 mm |
|
Depth |
8,70 m moulded |
|
Speed |
Ballast 12,5 knots - Economical: 10,6 knots Laden: 12,0 knots - Economical: 10,0 knots |
|
Built |
2011 |
|
Date of completion |
18/05/2012 |
|
Builder |
Xixiakou Shipbuilding Co. Ltd. Rongcheng China |
|
Yard number |
XXK06-042 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 202 rpm |
|
Boilers |
1x CHO 56,00 m² - 9,0 bar 1x CHM 102,00 m² - 9,0 bar |
|
Shaft generator |
1x 750 kVA - 600 kW |
|
Generators |
2x Cummins KTA19-D(M) main diesel generatorsets each 525 kVA - 420 kW - 629 hp |
|
Emergency generator |
1x Diesel generatorset 200 kVA - 160 kW - 255 hp |
|
Bow thruster |
1x 303,5 kW / 407 bhp |
|
Number of tanks |
12 |
|
Cargo tank capacity 98% |
Seg#1: 3.253,1 m3 (1 P/S - 3 P/S - 5 P/S) Seg#2: .1.058,4 m3 (6 P/S) Seg#3: 2.344,0 m3 (2 P/S - 4 P/S) Total: 6.555,55m³ excluding slop tanks |
|
Total cubic capacity 98% |
Total: 6.555,55m³ excluding slop tanks |
|
Slop tank capacity 98% |
112 m³ |
|
Pumps |
3x Screw cargo pumps each 510 m³/h 2x Ballast pumps each 200 m³/h |
|
Manifolds |
Bow to centre manifold: 54,52 m Stern to centre manifold: 48,48 m Distance bridge front to centre of manifold: 30,40 m Distance between cargo manifold centres: 1.100 mm Distance ships rail to manifold: 2.100 mm Distance manifold to ships side: 2.100 mm Top of rail to centre of manifold: 2.100 mm Distance main deck to centre of manifold: 2.100 |
|
Tank capacities |
Fuel oil: 308,7 m³ Diesel oil: 73,8 m³ |
|
Lifting equipment |
1x Crane - SWL 075 t centre amidships |
|
Manager |
South End Tanker Management B.V. Aventurijn 218 3316 LB Dordrecht The Netherlands |
|
Registered owner |
GTM Belgium B.V. |
|
Latest data adjustment |
19 April 2023 |
