Westerschelde 04 August 2014 |
 |
| Westerschelde 07/06/16 |
|
Name |

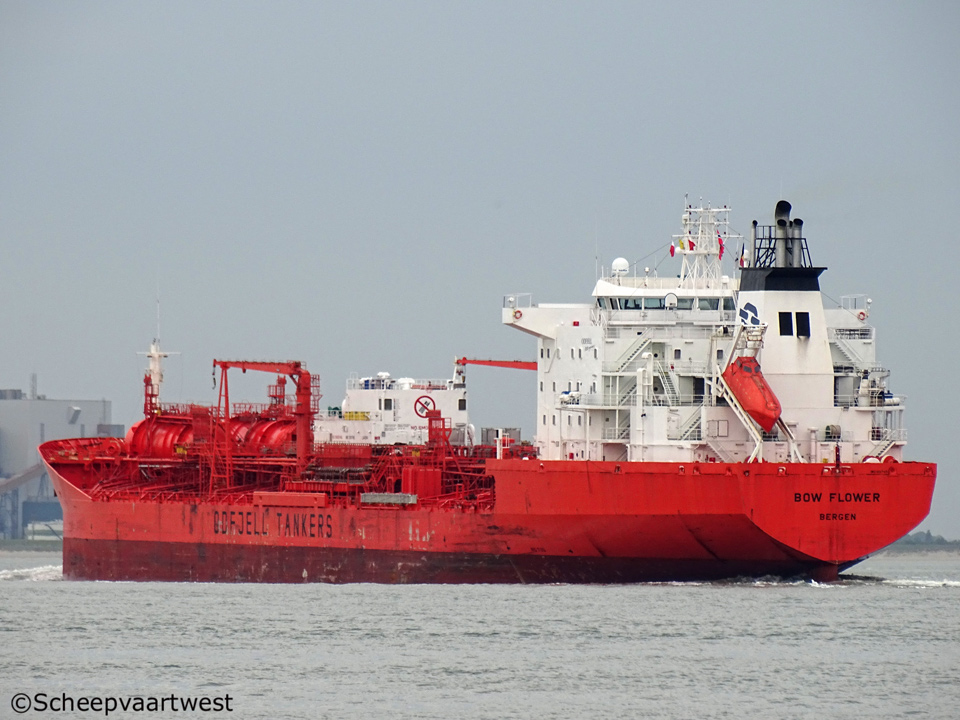

BOW FLOWER |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9047491 |
|
Call sign |
V7A5042 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
Norway, Bergen - Call sign: LAUB4 |
|
GT |
23.197 t Suez: 23.389 t Panama: 23.709 t |
|
DWT |
Summer: 37.221 t |
|
NT |
12.176 t Suez: 20.618 t Panama: 18.438 t |
|
Lightship |
11.277 t |
|
Length |
183,10 m overall 176,90 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
10,72 m |
|
Keel to mast |
42,79 m |
|
Depth |
14,00 m |
|
Speed |
14,3 knots |
|
Built |
1994 |
|
Keel laid |
05/11/1992 |
|
Launch date |
24/02/1994 |
|
Date of completion |
03/07/1994 |
|
Builder |
Kvaerner Govan Ltd. Glasgow United kingdom |
|
Yard number |
306 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side with top wing |
|
Bulkheads |
Transvese: 8 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W 6L60MC - 2 stroke 6 cylinder 600 x 1.944 mm combustion engine 10.440 kW / 14.194 hp at 123,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated AV6N 2x Auxiliary boiler, oil/gas fired AQ9 Builder: Aalborg |
|
Generators |
2x MAN-B&W 6L28/32H main diesel generatorsets |
|
Emergency generator |
1x Volvo TMD 122A diesel generatorset |
|
Bow thruster |
1x 883 kW |
|
Number of tanks |
52 |
|
Tanks capacity 98% |
Total centre tanks: 21.983 m³ Total Wing Tanks: 18.173 m³ Grand total: 40.760 m³ |
|
Number of segregations |
48 |
|
Manifolds |
Summer draft to manifold: 5,60 m Rail to manifold: 4,50 m Bow to manifold: 93,00 m |
|
Number of pumps |
5x Cargo pumps each 500 m³/h 13x Cargo pumps each 300 m³/h 20x cargo pumps each 200 m³/h |
|
Tank capacities |
Ballast: 15.438,65 m³ |
|
Anchor equipment |
Length: 632,50 m |
|
ISM & commercial manager |
Odfjell Management AS Conrad Mohrs veg 29 5072 Bergen Norway |
|
Previous managers |
1994 - 2013 Odfjell Management AS 2013 Odfjell Asia II Pte. Ltd. - Republic of Singapore |
|
Registered owner |
Odfjell Chemical Tankers AS Care of Odfjell Management AS Conrad Mohrs veg 29 5072 Bergen Norway |
|
Previous owners |
1994 - 2000 Bow Flower & Clipper AS |
|
Srapped |
22/04/2022 Beached at Alang - India |
|
Latest data adjustment |
05 June 2022 |
