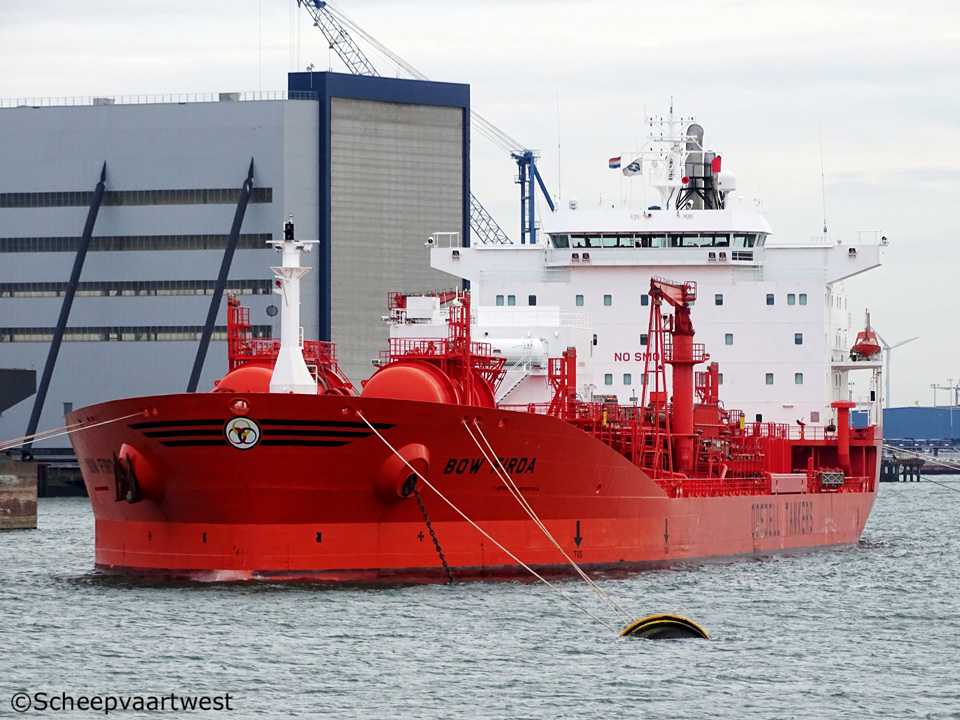

Bow Firda 02

Vlissingen 01 October 2017

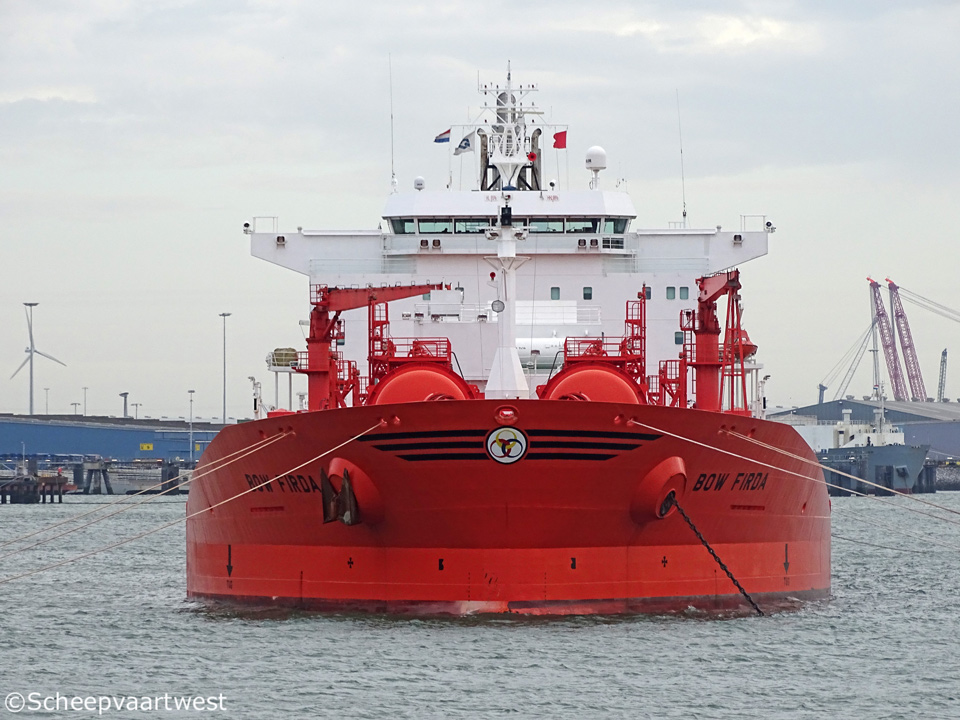

Bow Firda 01
Vlissingen 01/10/17



Name

BOW FIRDA

Type

Tanker for chemicals & oil products

IMO-number

9250751

Call sign

S6BK2

Flag

Republic of Singapore

Port of registry

Singapore City

GT

23.190 t

Suez: 23.371 t

DWT

Summer: 37.427 t

NT

11.915 t

Suez: 20.684 t

Panama: 19.320 t

Light ship

11.070 t

Length

183,10 m overall

176,90 m between perpendiculars

Breadth

32,24 m extreme

Draught

Summer: 10,72 m

Keel top mast

42,80 m

Depth

14,00 m

Speed

16,0 knots

Built

2003

Keel laid

22/04/2002

Launch date

19/09/2002

Date of completion

28/11/2002

Builder

Kleven Florø AS
Norway

Yard number

144

Hull material

Steel

Hull type

Double bottom

Double side with top wing

Main engine

1x MAN-B&W 7S50ME-C - 2 stroke 7 cylinder combustion engine 10.415 kW at 120 rpm

Propellers

1x Controllable pitch propeller - aft

Boilers

2x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Manufacturer: Aalborg

Shaft generator

1x 1.400 kW

Generators

2x MAN 6L28/32H main diesel generatorsets each 1.100 kW

Emergency generator

1x Volvo Penta diesel generatorset 238 kVA

Bow thruster

1x Kamewa Ulstein 883 kW

Number of cargo tanks

47

Cargo tank capacity 98%

Total centre tanks: 21.598 t

Total wing tanks: 17.624 t

Grand total: 39.822 m³

Manifolds

Summer waterline to manifold: 5,60 m

Normal ballast waterline to manifold: 9,80 m

Rail to manifold: 4,50 m

Bow to centre of manifold: 95,30 m

Tank capacities

Ballast: 15.033,9 m³

Anchor equipment

Length: 632,50 m

Diameter: 70 mm

Manager

Odfjell Management AS
Conrad Mohrsv. 29
5892 Bergen
Norway

Registered owner

Odfjell Asia II Pte. Ltd.
6 Shenton Way
# 27-08/09 OUE Downtown 2
Republic of Singapore

Latest data adjustment

08 July 2018
