| Antwerpen 16 May 2014 |
 |
 |
 |
 |
 |
 |
|||||

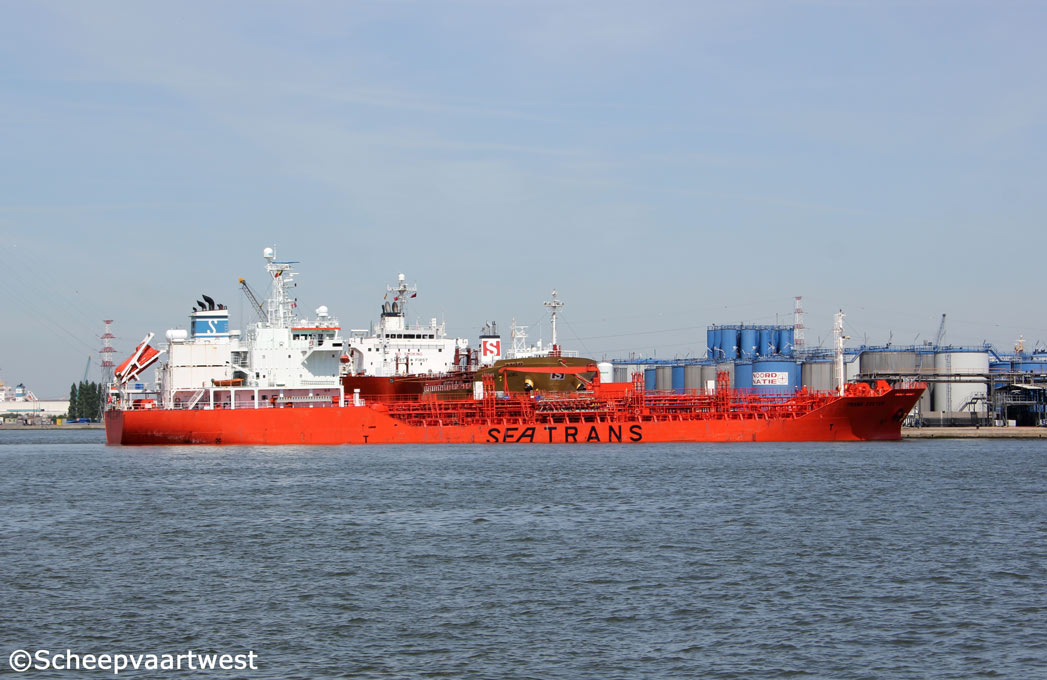

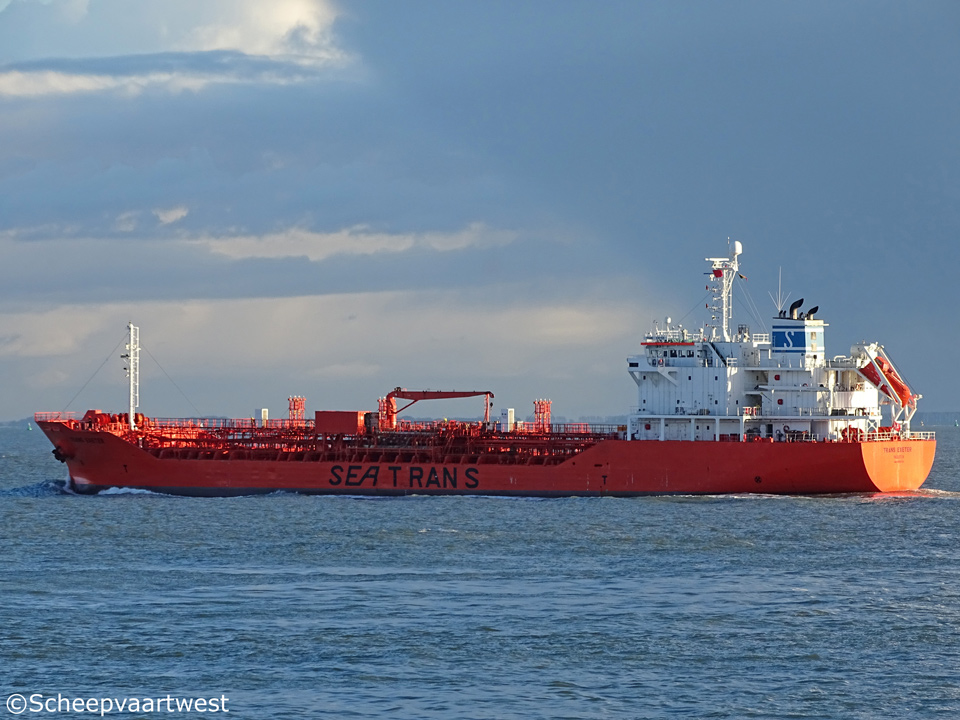

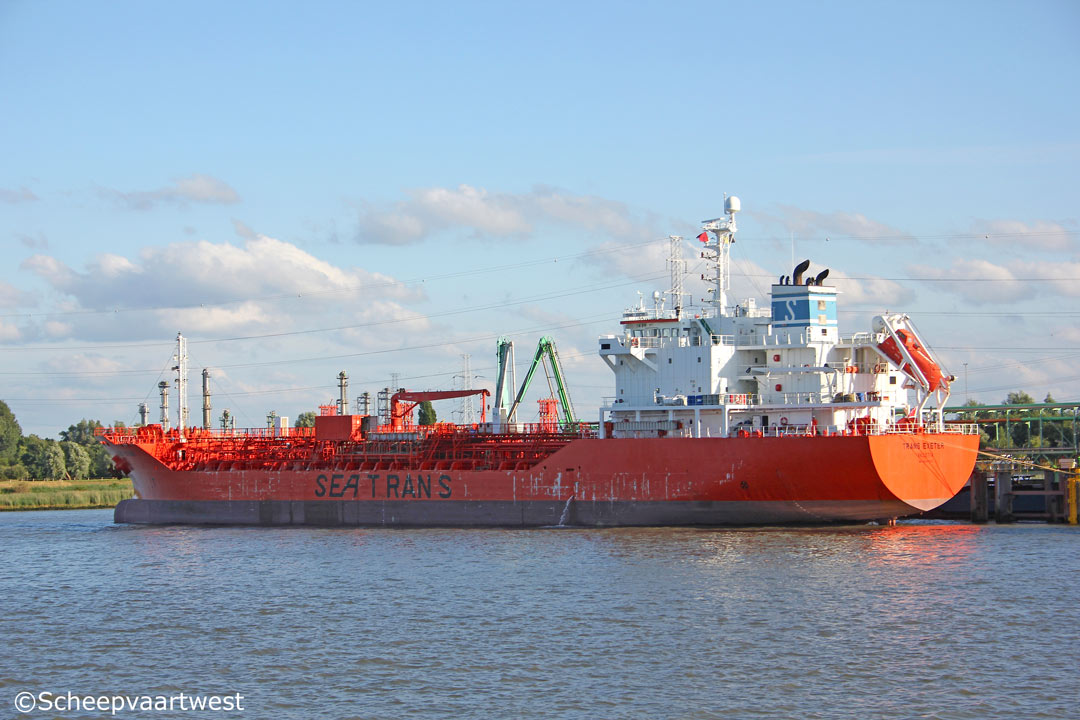

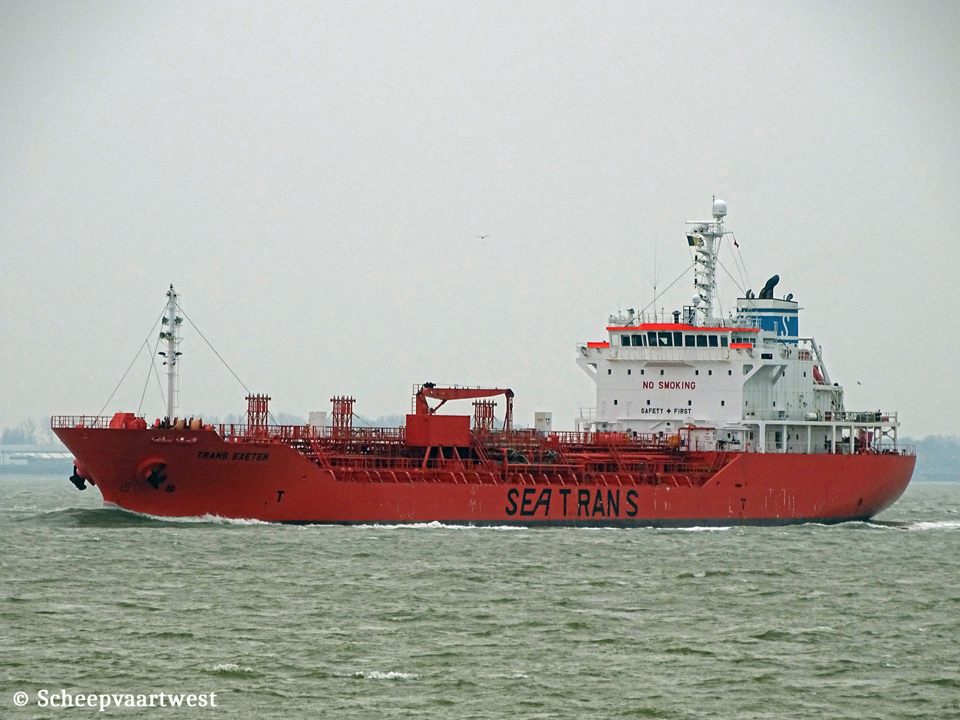

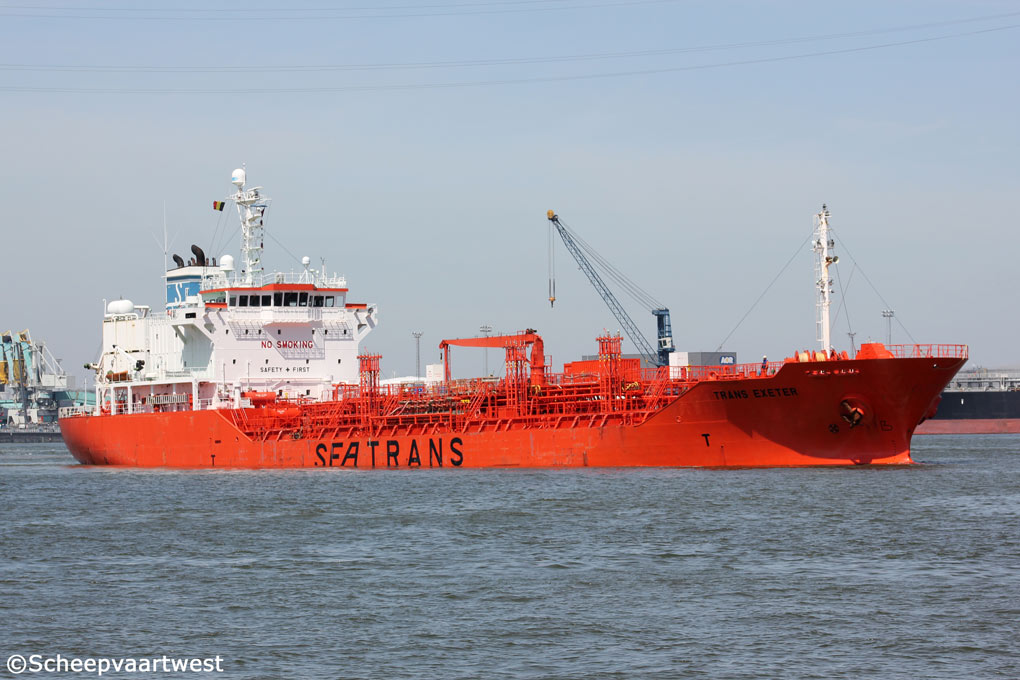

| Antwerpen 16/05/14 | Zwijndrecht 19/07/15 | Westerschelde 29/11/17 | Westerschelde 17/08/16 | Westerschelde 10/10/16 | Westerschelde 27/01/18 | |||||
|
Name |
TRANS EXETER |
|
Previous names |
2004 Launch as: Cape Exeter |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9314753 |
|
Call sign |
LAKX8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
Norway Malta, Valletta - Call Sign: 9HA2572 |
|
GT |
5.986 Suez: 6.434,01 t t |
|
DWT |
Summer: 9.436,9 t Winter: 9.169,3 t |
|
NT |
2.533 t |
|
Displacement |
Summer: 12.816,6 t Winter: 12.530,1 |
|
Light weight |
3.366 t Suez: 5.060,53 t |
|
Length |
118,14 m overall 111,06 m between perpendiculars |
|
Breadth |
18,00 m extreme |
|
Draught |
Summer: 7,81 m Winter: 7,65 m |
|
Keel to mast |
34,40 m |
|
Air draft |
26,59 m at summer deadweight 28,99 m ballast 31,97 m lightship |
|
Freeboard |
Summer: 1.901 mm Winter: 2.064 mm |
|
Depth |
9,70 m moulded |
|
Speed |
Ballast: 15,0 knots - Eco: 13,0 knots Laden: 14,0 knots - Eco: 13,0 knots |
|
Built |
2004 |
|
Keel laid |
16/02/2004 |
|
Date of completion |
16/09/2004 |
|
Builder |
Sasaki Shipbuilding CO., Ltd. Osakikamijima Japan |
|
Yard number |
649 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Hitachi 6S35MC - 2 stroke 6 cylinder combustion engine 4.457 kW / 6.060 bhp Builder: MAN-B&W Diesel A/S |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite A (oil fired/gas heated) 1x Auxiliary boiler, oil/gas fired Builder: Aalborg Industries A/S |
|
Generators |
3x Yanmar 6N18 diesel generatorsets each 560 kW |
|
Bow thruster |
1x 475 kW / 637 bhp, forward 1x 475 kW / 637 bhp, behind |
|
Number of tanks |
18 - 1 slop tank |
|
Cargo capacity 98% |
8.902,43 m³ |
|
Slop tank capacity |
747 m³ |
|
Number of pumps |
|
|
Cargo heating |
75°C |
|
Manifolds |
Bow to centre manifold: 56,00 m Stern to centre manifold: 62,14 m Distance bridge front to centre of manifold: 32,60 m Distance between cargo manifold centres: 800 mm Distance ships rail to manifold: 2.150 mm Distance manifold to ships side: 3.250 mm Top of rail to centre of manifold: 750 mm Distance main deck to centre of manifold: 2.900 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 612,69 m³ Diesel oil: 62,76 m³ Ballast: 3.552,55 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 52 mm |
|
Lifting equipment |
1x Deck cranes - SWL 4,0 t |
|
Commercial manager |
Seatrans Chemical Tanker AS Wernersholmvegen 5 5232 Paradis Norway |
|
ISM Manager |
Stödig Ship Management AS Wernersholmvegen 5 5232 Paradis Norway |
|
Previous managers |
2004 - 2013 Seatrans AS 2013 Seatrans Ship Management AS |
|
Registered owner |
Euro Trans Skips AS Wernersholmvegen 5 Paradis 5232 Norway |
|
Disponent owner |
Seatrans Chemical Tanker AS Wernersholmvegen 5 5232 Paradis Norway |
|
Previous owners |
2004 - 2011 Exeter Shipping Limited |
|
Latest data adjustment |
05 August 2023 |
