Westerschelde 28 January 2017 |
 |
| Westerschelde 20/06/14 |
|
Name |

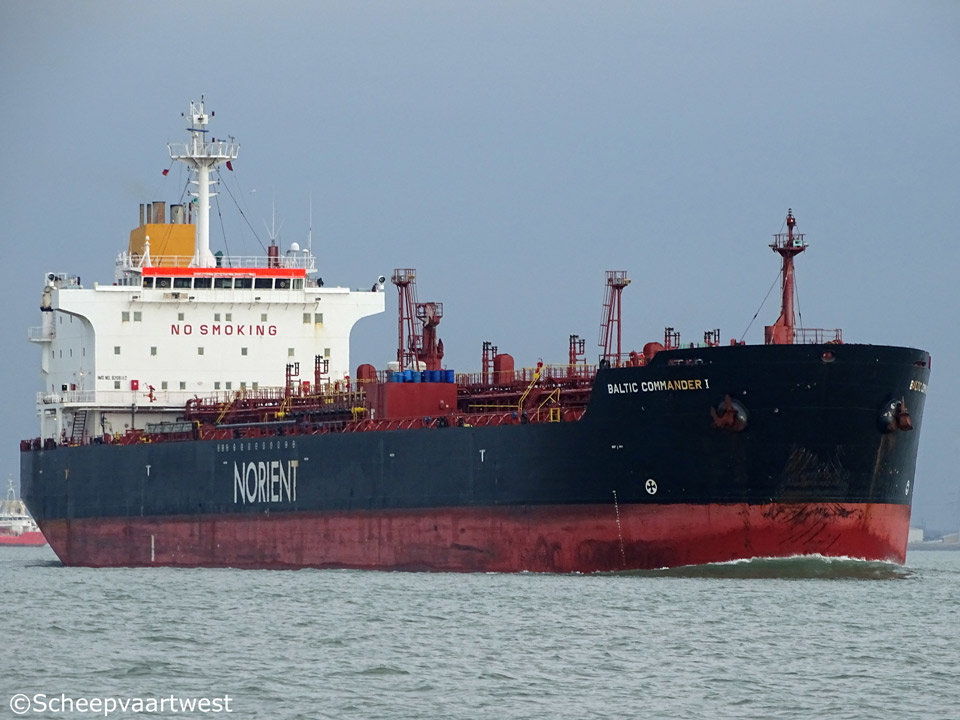

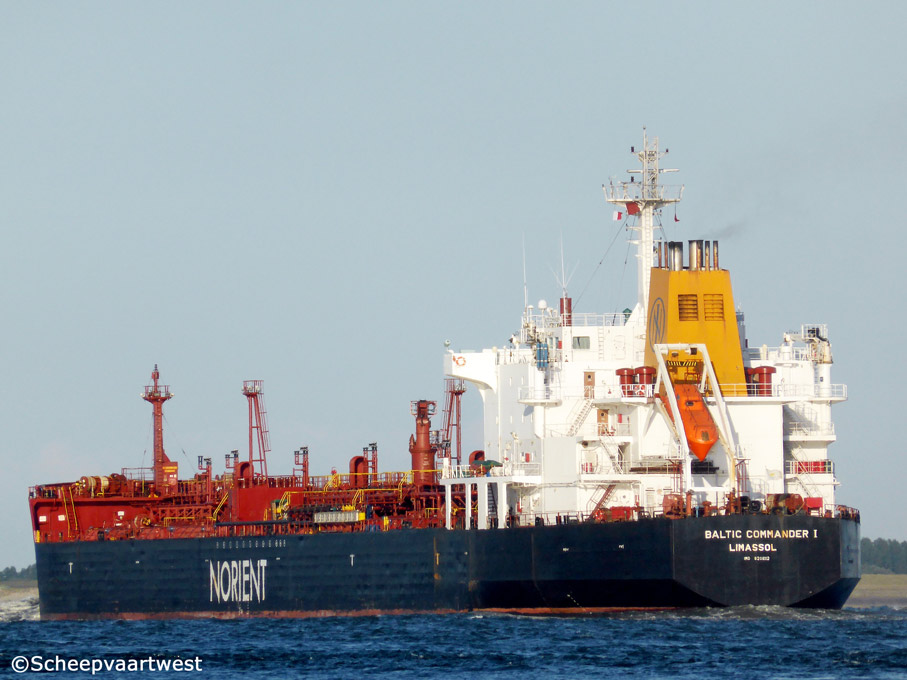

BALTIC COMMANDER I |
|
Previous names |
2000 launch as: Antifon 2000 - 02.2002 Baltic Commander |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9208112 |
|
Call sign |
D5IW6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2000 - 2000 Cyprus 2000 - 2002 Marshall Islands 2002 - 2015 Cyprus, Limassol- Call sign: P3DN9 |
|
GT |
23.235 t Suez: 24.333,69 t |
|
DWT |
Summer: 37.418 t |
|
NT |
10.107 t |
|
Length |
182,55 m overall 175,00 m between perpendiculars |
|
Breadth |
27,34 m extreme |
|
Draught |
11,20 m |
|
Keel to masthead |
45,91 m |
|
Air draft |
Lightship: 43,42 m Normal ballast: 38,78 m At loaded summer dead-weight: 34,69 m |
|
Depth |
16,70 m |
|
Speed |
12,0 knots Max.: 15,7 knots |
|
Built |
2000 |
|
Keel laid |
30.06.1999 |
|
Launch date |
06.11.1999 |
|
Date of completion |
12.04.2000 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. |
|
Yard number |
9807 |
|
Hull material |
Steel |
|
Hull type |
Double bottom with hopper |
|
Bulkheads |
Transverse: 8 |
|
Number of decks |
1 |
|
Main engine |
1xMAN B&W 6S50MC-C - 2 stroke 6 cylinder diesel engine 9.463 kW at 127 rpm Transmission: main propulsion acts directly on the propellershaft |
|
Propellers |
1x Solid fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - 12,0 bar Builder: Kang Rim Heavy Ind. Co., Ltd. Pohang Factory Heating surface: 418,0 m² 1x Auxiliary boiler, oil/gas fired Mission OL - 9,0 bar Heating surface :110,0 m² Builder: Aalborg Industries A/S |
|
Generators |
3x MAN 6L23/30 diesel generatorsets each 925 kVA |
|
Emergency generator |
1x Cummins LTA-10-G1 diesel generatorset 180 kVA |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar |
|
Bow thruster |
1x Wärtsilä FT09 - 1.072 hp / 799,39 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacities 98% |
Seg#1: 6.016,8 m³ (1 wings) |
|
Total cubic capacity 98% |
41.429,4 m³ excluding slop tanks |
|
Number of slop tanks |
2 |
|
Slop tanks capacity 98% |
864,8 m³ |
|
Pumps |
Cargo pumps: 10x Centrifugal each 450 m³/h 2x Centrifugal each 300 m³/h 2x Centrifugal each 150 m³/h Ballast: 2x Centrifugal each 500 m³/h |
|
Max. load rate |
3.000 m³/h |
|
Max. discharge rate |
1.800 m³/h |
|
Manifolds |
Bow to centre manifold: 90,14 m Stern to centre manifold: 92,41 m Distance bridge front to centre of manifold: 58,81 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 850 mm Distance main deck to centre of manifold: 2.100 mm |
|
Ballast capacity |
18.992,10 m³ Bunker: 1.182 t |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Manager |
Interorient Marine Services (Germany) GmbH & Co. KG |
|
Previous manager |
2000 - 2004 Interorient Navigation Co. Ltd. |
|
Operator commercial |
Norient Product Pool ApS |
|
Operator technical |
Interorient Marine Services (Germany) GmbH & CO. KG |
|
Owner |
Magimar Shipping Company Ltd Limassol Cyprus |
|
Registered owner |
MT "Baltic Commander" Schiffahrtsgesellschaft mbH & Co. KG |
|
Previous owners |
2000 - 2000 Interorient Navigation Co. Ltd. 2000 - 2002 Baltic Commander Shipping Co. Ltd 2002 - 2007 Magimar Shipping Company Ltd |
|
Latest data adjustment |
01 July 2017 |
