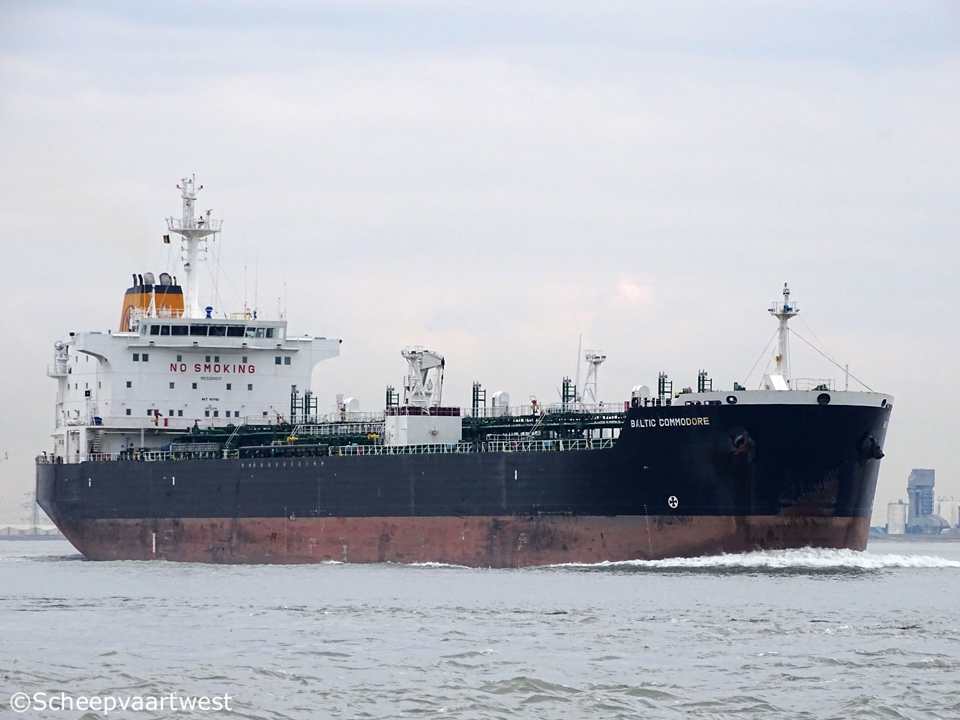

Baltic Commodore 02

Westerschelde 06 March 2018

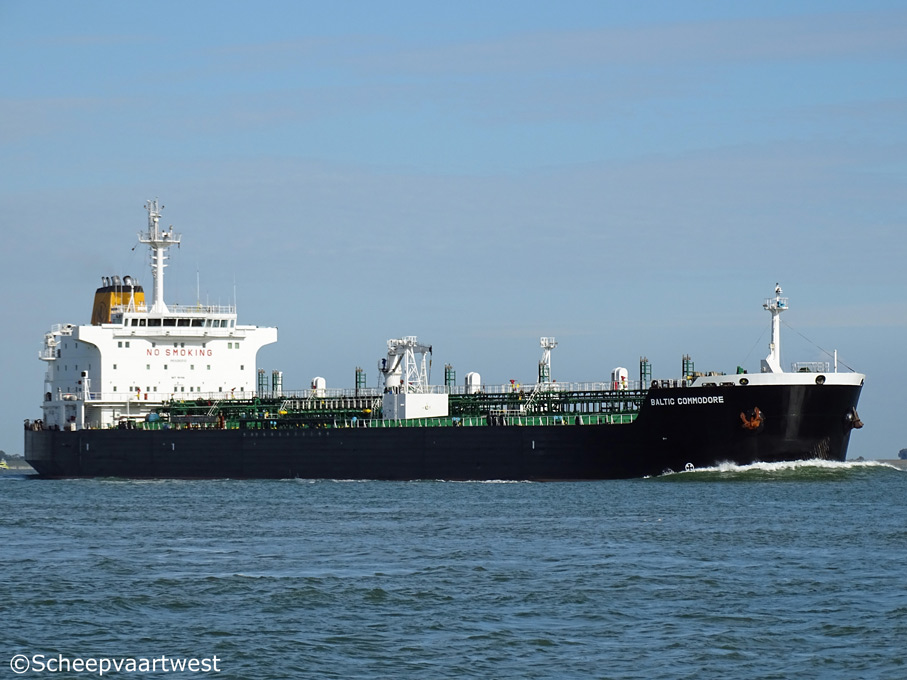

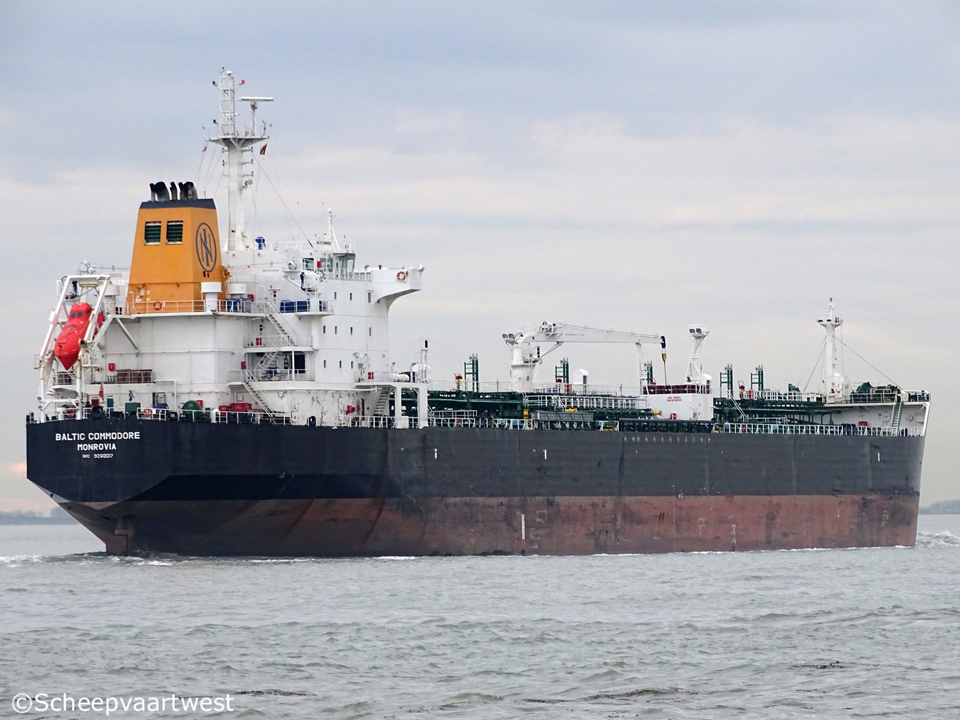

Baltic Commodore 03   Baltic Commodore 01
Westerschelde 06/03/18 Westerschelde 08/08/16


Name

BALTIC COMMODORE

Previous names

06.2003 - 10.2005 Baltic Commodore

10.2005 - 12.2007 British Engineer

Type

Tanker for oil and chemicals

IMO-number

9260017

Call sign

D5MW2

Flag

Liberia

Port of registry

Monrovia

Previous flag

Malta, Valletta - Call sign: 9HGO9

GT

23.240 t

Suez: 24.382,63 t

DWT

37.343 t

NT

10.110 t

Suez: 21.080,87 t

Length

182,55 m overall

175,11 m between perpendiculars

Breadth

27,34 m extreme

Draught

10,85 m

Air draft

Lightship: 43,26 m

Normal ballast: 39,31 m

At loaded summer deadweight: 34,59 m

Keel to masthead

45,81 m

Freeboard

Summer: 5.514 mm

Winter: 4.750 mm

Depth

16,70 m moulded

Speed

Service: 14.5 knots

Built

2003

Keel laid

05.02.2003

Launch date

23.04.2003

Date of completion

26.06.2003

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

0129

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 9

Longitudinal: 3

Main engine

1x MAN-B&W 6S50MC-C - 6 cylinder diesel engine 13.542 bhp / 9.960 kW

Propellers

1

Boilers

1x Auxiliary boiler, exhaust gas heated

Builder: KangRim Industries. Co., Ltd.

1x Auxiliary boiler, oil/gas fired

Builder: Aalborg Industries A/S

Generators

3x Himsen 6H21/32 main diesel generatorsets

Builder: Hyundai Heavy Ind. Co. Ltd.

Emergency generator

1x Sisu diesel 645 DSBIMG diesel generatorset

Bow thruster

1x 1.072 bhp

Cargo tank capacity 98%

Seg#1: 6.016,8 m³ (Wings 1)
Seg#2: 7.185,9 m³ (Wings 2)
Seg#3: 7.194,8 m³ (Wings 3)
Seg#4: 7.194,8 m³ (Wings 4)
Seg#5: 7.194,8 m³ (Wings 5)
Seg#6: 6.605,2 m³ (Wings 6)

Total: 41.342.8 m³

Slop tank capacity 98%

864,6 m³

Tanks coating

SIGMA Penguard Epoxy

Pumps

10x Centrifugal cargo pumps each 450 m³/h

2x Centrifugal cargo pumps each 300 m³/h

2x Centrifugal cargo pumps each 150 m³/h

2x Centrifugal ballast pumps each 750 m³/h

Manifolds

Bow to centre manifold: 93,93 m

Stern to centre manifold: 88,62 m

Distance bridge front to centre of manifold: 57,35 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.600 m

Top of rail to centre of manifold: 850 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.184,1 m³

Diesel oil: 147,7 m³

Gas oil: 50 m³

Anchor equipment

Length: 594.00 m

Diameter: 66 mm

Lifting equipment

1x Crane - SWL 10,0 t

Outreach: 7,30 m

Manager

Interorient Marine Services (Germany) GmbH & Co. KG
Kajen 12
20459 Hamburg
Germany

Commercial operator

Norient Product Poll ApS
Strandvejen 52
2900 Hellerup
Denmark

Technical operator

Interorient Marine Services - Germany GmbH & Co KG)
Kajen 12
20459 Hamburg
Germany

Registered owner

Titan Tankschifffahrtsgesellschaft mbH. & Co KG
Germany

Disponent owner

Baltic Commodore Shipping Ltd.
171, Old Bakery Street
Valletta
Malta

Latest data adjustment

22 March 2018
