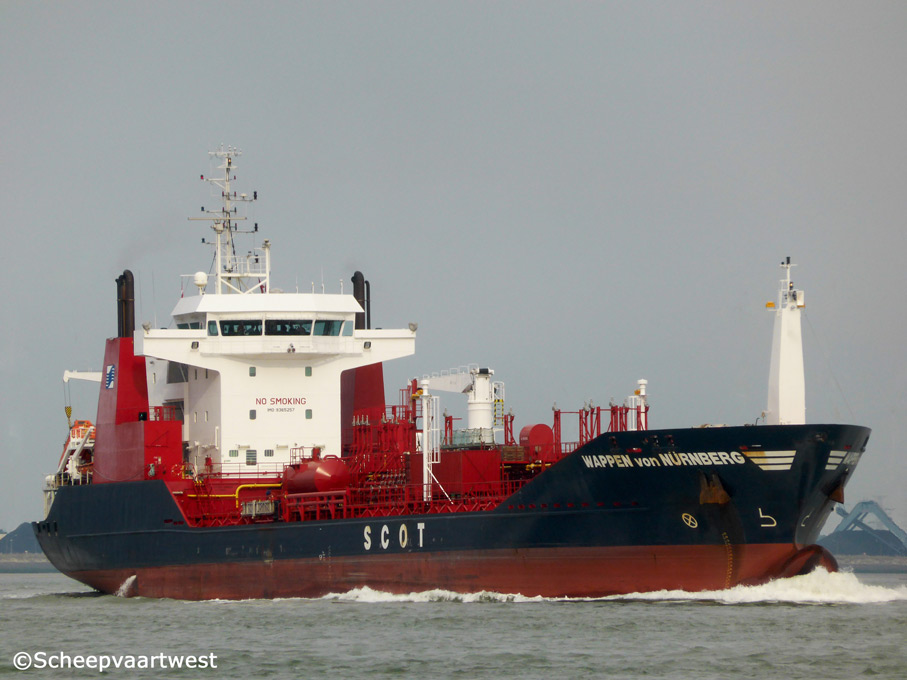

Westerschelde 25 July 2014 |
 |
 |
|

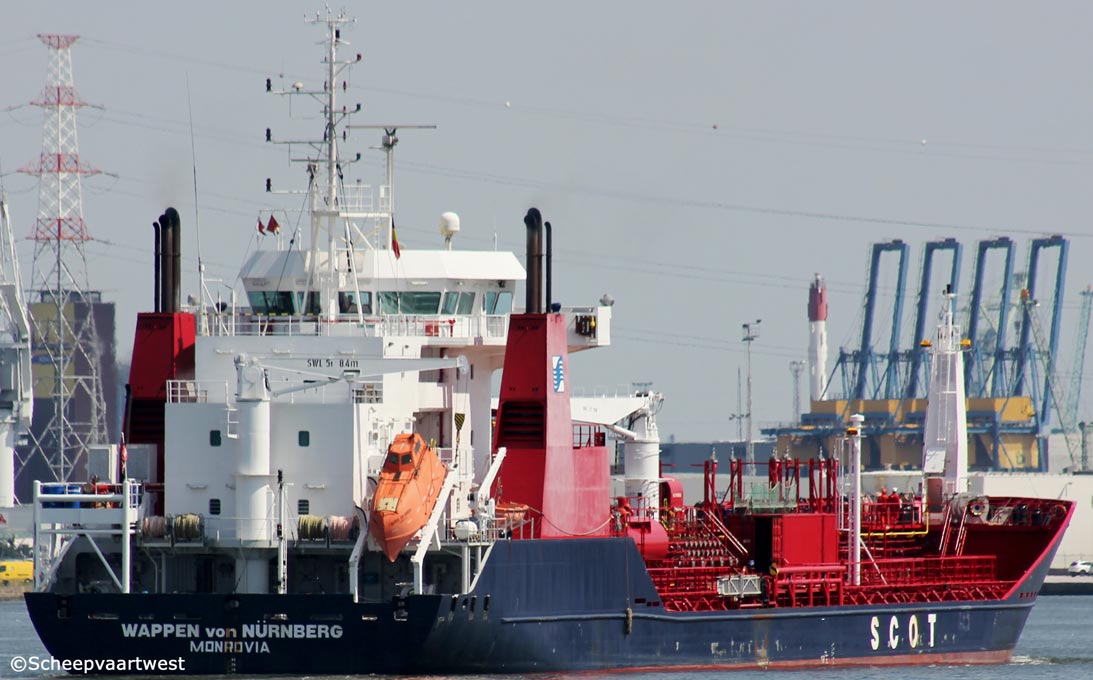

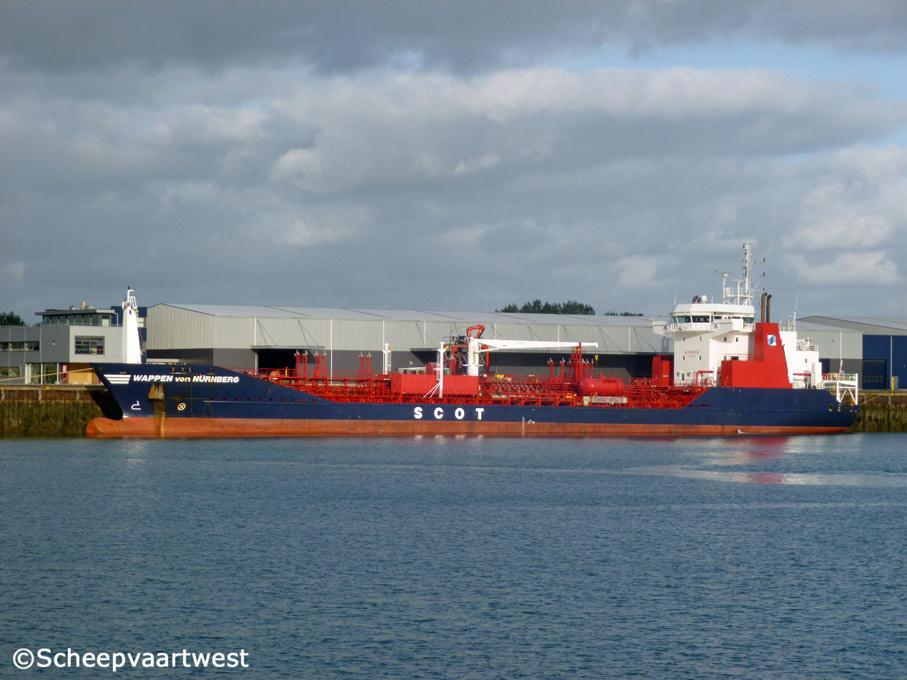

| Vlissingen 15/09/12 | Antwerpen | |
|
Name |
WAPPER VON NURNBERG |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9365257 |
|
Call sign |
D5DZ6 |
|
Flag |
Liberia |
|
Home |
Monrovia |
|
GT |
5.200 t registered Suez: 5.516,99 t |
|
DWT |
Summer: 8.157 t |
|
NT |
2.541 t registered Suez: 4.203,48 t |
|
Length |
116,89 m overall 110,40 m between perpendiculars |
|
Breadth |
18,00 m moulded |
|
Draught |
7,43 m moulded |
|
Moulded L x B x D |
110,40 x 18,00 x 9,40 m |
|
Registered L x Bx D |
110,40 x 18,00 x 9,40 m |
|
Keel to top of mast |
27,00 m |
|
Freeboard |
2.000 mm |
|
Depth |
9,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2007 |
|
Keel laid |
14.12.2005 |
|
Launch date |
07.03.2007 |
|
Date of completion |
14.12.2007 |
|
Builder |
Konsortium Lindenau GmbH, Ferrostaal AG, Santierul Naval Damen Shipyards Galati |
|
Yard number |
1110 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 5 Oil tight: 10 |
|
Main engine |
2x MAN B&W Type 6L27/38 CSR - 4 stroke single acting 6 cylinder 270 x 380 mm diesel engines - each 1.800 kW at 750 rpm Manufacturer: MAN B&W Diesel A/S - Alpha Diesel |
|
Propeller shaft |
2x oil lubrication shaft without monitoring device Diameter: 355 mm each |
|
Propellers |
2x Controllable pitch propeller - aft at 135 rpm Builder: MAN B&W Diesel A/S |
|
Boilers |
2x Auxiliary Thermal oil heater - 13,0 bar Evaporation: 1.750,00 kW |
|
Shaft generator |
2x Leroy Sommer LSA 49/1 M6 each 378 kW |
|
Generators |
2x Main diesel generatorsets each 492 kW |
|
Emergency generator |
1x Emergency and harbour diesel generatorset 473 kVA |
|
Bow thruster |
1x JASTRAM 400 kW at 479 rpm |
|
Number of cargo tanks |
16 + 2 deck tanks |
|
Cargo tank capacity |
100%: 9.104,95 m³ / 8.922,85 t 98%: 8.586 m3 |
|
Cargo pumps |
2x SD 150 - centrifugal hydraulic self priming, max 300 m³/h @ 11 bar / 2.512 rpm each 14x SD 125 - centrifugal hydraulic self priming, max 200 m³/h @ 11 bar / 2.461 rpm each |
|
Ballast pumps |
2x centrifugal electric - discharge rate 250 m³/h each |
|
Number of tanks |
Fuel oil: 12 Fresh water: 15 Water ballast: 11 Diesel oil: 5 Hydraulic oil: 4 Sludge: 4 Thermal oil: 4 Lubricating oil: 2 Chemical: 1 Chain: 1 Waste water: 1 |
|
Tank capacities |
Diesel oil: 112,2 m³ / 100,98 t Fresh water: 260,2 m³ Fuel oil: 492,01 m³ / 482,17 t Hydraulic oil: 7,6 m³ / 7,05 t Lube oil: 8,4 m³ / 7,56 t Tank ballast: 3.112,8 m³ / 3.190,62 t |
|
Manifolds |
Bow to centre of manifold: 60,05 m PBL manifold - fwd: 37,55 m PBL manifold - aft :27,85 m |
|
Lifting equipment |
1x Hose handling crane GP 150-5-19 - SWL 5,0 t 1x Provision / Service crane GP 115-5-8.4 - SWL 5,0 t Manufacturer: TTS Marine ASA |
|
Manager |
RHL Hamburger Lloyd Tanker GmbH & Co. KG |
|
Operator |
Wappen Reederei GmbH & Co KG |
|
Registered owner |
Bareboat Charterer Wappen Nurnberg Shipping Co. Ltd. |
|
Latest data adjustment |
09 February 2015 |
