Westerschelde 06 October 2017 |
 |
 |
 |
||
| Westerschelde 06/10/17 | Westerschelde 21/05/15 | Westerschelde 16/09/19 | ||
|
Name |

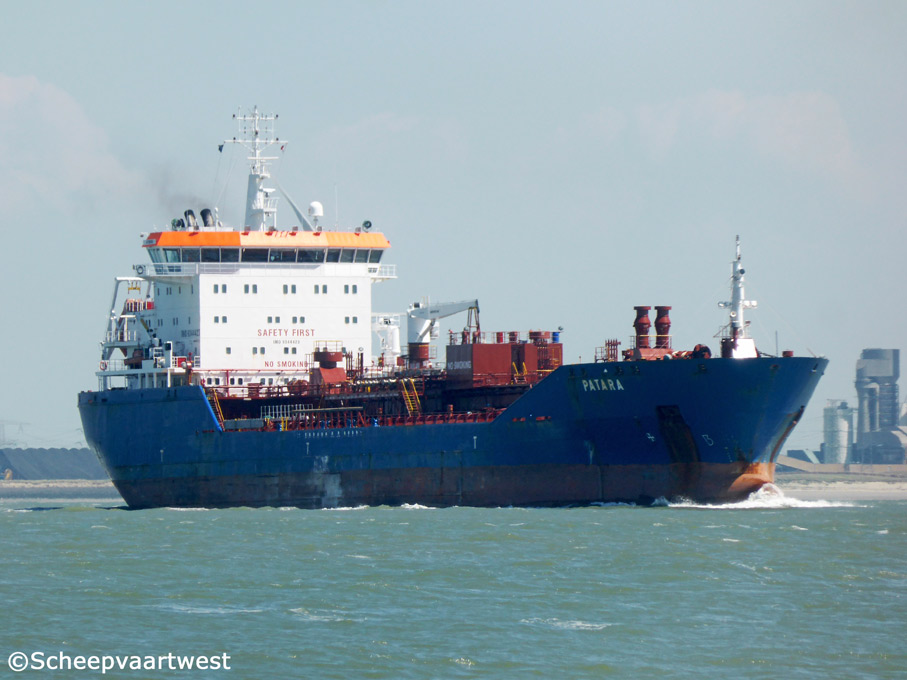

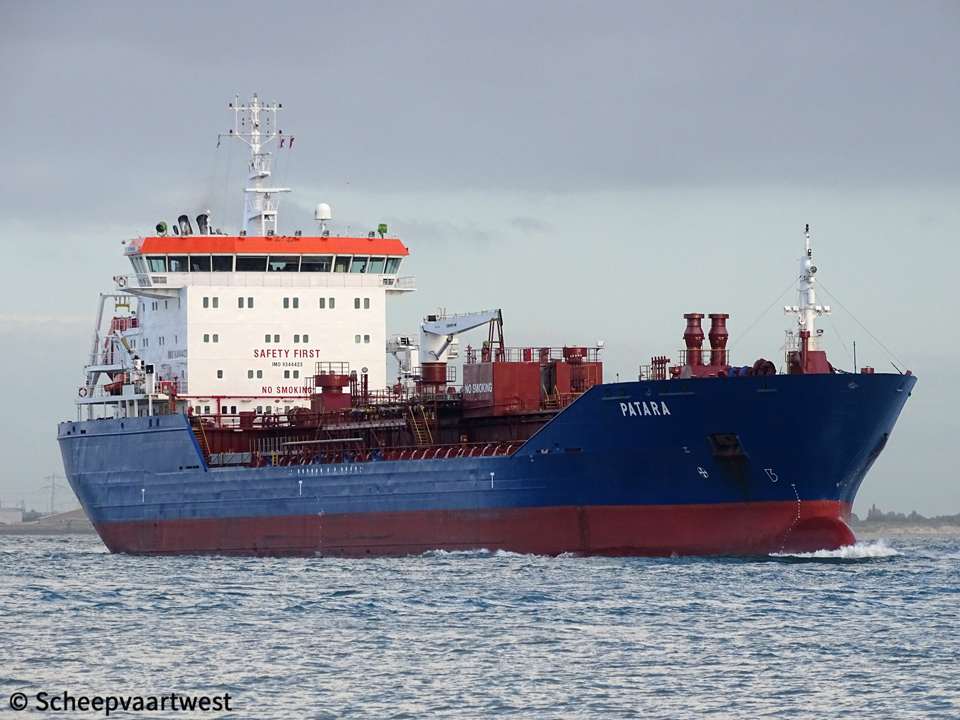

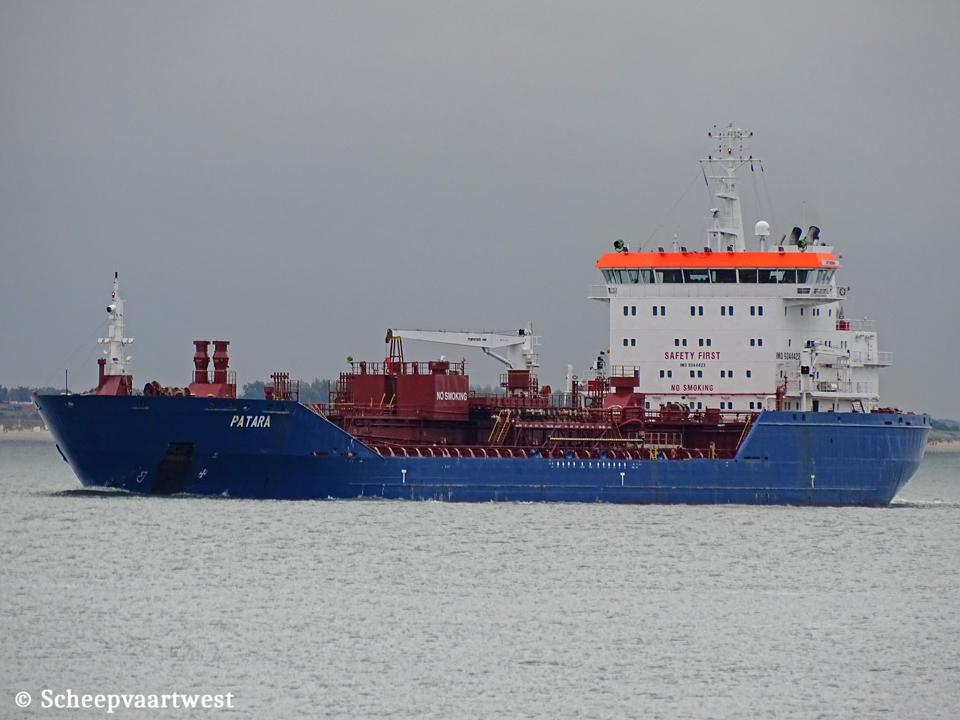

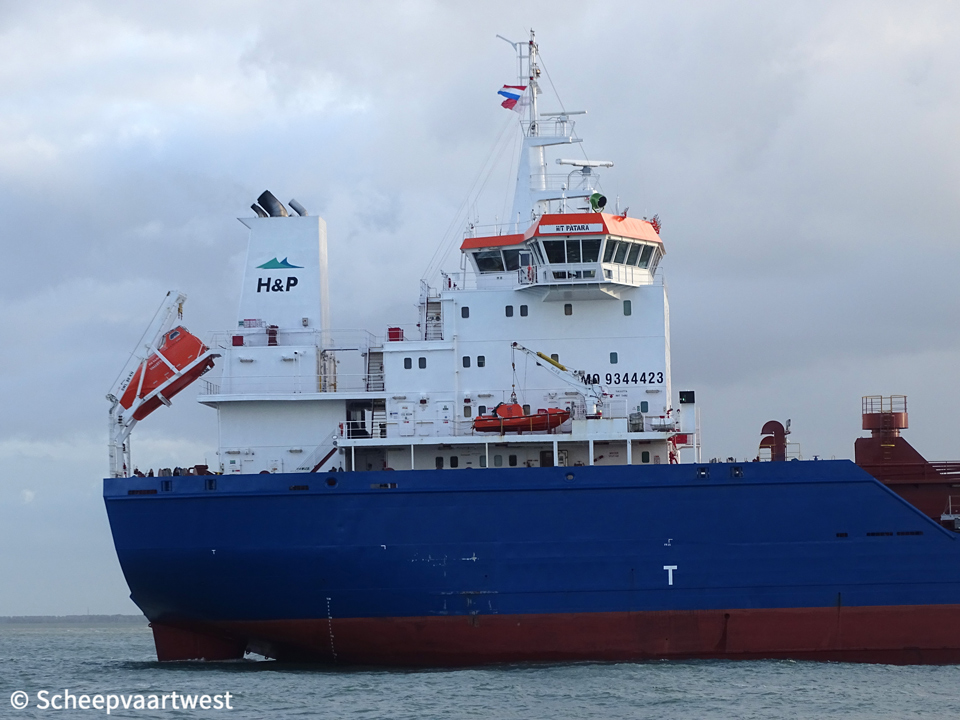

PATARA |
|
Previous names |
2007 - 04/2010 Gan Ocean |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9344423 |
|
Call sign |
CQEY4 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2007 - 2007 Liberia, Monrovia 2007 - 2021 Malta - Valletta - call sign: 9HCO9 |
|
GT |
12.164 t |
|
DWT |
Summer: 16.979 t |
|
NT |
5.492 t |
|
Length |
144,05 m overall 134,55 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
Max.: 9,01 m |
|
Keel to mast end |
43,70 m |
|
Depth |
12,40 m |
|
Speed |
14,8 knots |
|
Built |
2007 |
|
Keel laid |
05/09/2005 |
|
Launch date |
14/10/2006 |
|
Date of completion |
18/07/2007 |
|
Builder |
Tuzla Gemi Endustrisi A.S. Tersaneler Caddesi No 6 34944 Tuzla Turkey |
|
Yard number |
028 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder combustion engine 6.300 kW / 8.568 hp at 500 rpm Builder: MAN Diesel & Turbo SE |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite (Exhaust / Oil-fired) - 12,0 bar 1x Auxiliary boiler, oil/gas fired (Oil-fired) - 9,0 bar Builder: Garioni Naval, Castelmella, Italy |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
3x Caterpillar 3508B diesel generatorsets total 2.550 kVA |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 200 kVA |
|
Bow thruster |
1x 800 kW |
|
Number of tanks |
12 + 2 slop tank |
|
Number of segregations |
12 |
|
Total tank capacity |
Liquid: 20.027,8 m³ |
|
Slop tank capacity |
260 m³ |
|
Pumps |
12x RAMO pumps each 385 m³/h |
|
Cargo pumping capacity |
Unloading capacity per tank: 385 m³/h Total unloading capacity: 2.100 m³/h |
|
Tank capacities |
Fuel oil (IFO) 580,8 m³ Marine diesel oil: 106,8 m³ Ballast capacity: 7.715 m³ Fresh water tanks: 240 m³ Lube oil: 50 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Hose crane - SWL 10,0 t |
|
ISM & commercial manager |
Harren Tanker Management GmbH & Co. KG Hermann-Hollerith-Strasse 10 28355 Bremen Germany |
|
Previous managers |
2007 - 2010 Dunya Denizcilik ve Ticaret A.S. 2010 Harren & Partner Shipmanagement GmbH & Co. KG - Germany |
|
Registered owner |
75. PHOENIX PCT UG (haftungsbeschränkt) & Co. KG MS "VENUS" Boschstraße 21 49733 Haren (Ems) Germany |
|
Previous owners |
2007 - 2010 Gan-Ocean Shipping S.A. 2010 - 2010 Pat Shipping Ltd. 2010 - 2010 CIT Caspian Investment & Trading GmbH & Co. KG MS GAN-Sword 2010 - 2010 CIT Caspian Investment & Trading GmbH & Co. KG MS GAN-Ocean 2010 - 2012 CIT Caspian Investment & Trading GmbH & Co. KG 2012 Harren & Partner Schiffahrts GmbH & Co. KG MS "Patara" |
|
Latest data adjustment |
04 November 2022 |
