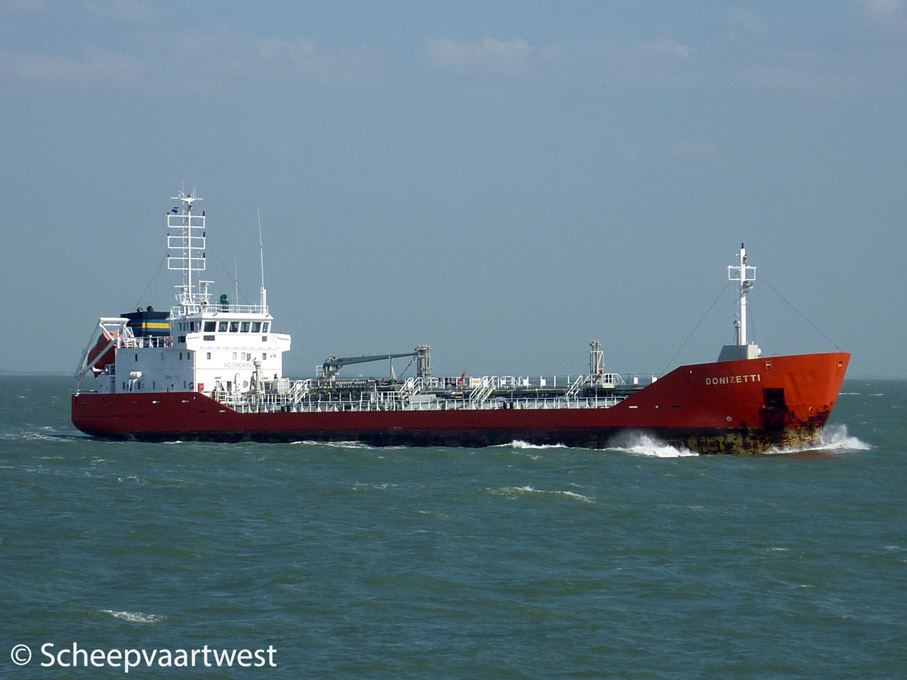

Donizetti 02
Westerschelde 14 May 2012



Name

DONIZETTI

Type

Chemical tanker

IMO-number

9174098

Call sign

LXDZ

Flag

Grand Duchy of Luxembourg

Port of registry

Luxembourg City

GT

2.335 t

DWT

3.613,60 t

NT

966 t

Length

99,95 m overall

95,85 m registered

Breadth

12,50 m registered

Draught

4,90 m

Forecastle

13,46 m

Poop

18,78 m

Depth

6,35 m moulded

Speed

13,0 knots

Built

2000

Keel laid

03.03.1998

Launch date

09.07.1999

Date of completion

15.08.2000

Builder

Ceske Lodenice A.S.
Valtirov
Czech Republic

Yard number

720

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN B&W 8 L 28/32 A - 4 stroke 8 cylinder 280 x 320 mm diesel engine - 1.960 kW at 775 rpm

Year of manufacture: 2000

Manufacturer: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft at 304 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating Surface: 64,7 m²

Year of manufacture: 2000

Manufacturer: Wiesloch Marine & Industries B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 30,0 m²

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH
Hirtscheider Str. 13-15
57647 Nistertal
Federal Republic of Germany

Electric installations

2x Plants each 440/220 V - 269 kVA

1x Plant 440/220 V - 450 kVA

1x Plant 440 V - 562 kVA

1x Plant 440 V - 156 kVA

Shaft generator

1x 562 kVA

Generators

1x Main diesel generatorset 450 kVA

2x Main diesel generatorsets each 269 kVA

Emergency generator

1x Diesel generatorset 156 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 270 kW, forward

Number of cargo tanks

14

Liquid cargo

3.562 m³

Tank capacities

Fuel oil: 196 m³

Ballast water: 1.732 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Manager

GEFO Gesellschaft für Öltransporte GmbH
Hamburg
Germany

Operator

Ahlers Belgium N.V.
Noorderlaan 139
2030 Antwerpen
Belgium

Registered owner

UNITAS United Shipping and Trucking Company N.V.
Victor Govaerslaan 16, Bus 4
2170 Merksem
Belgium

Last update

23.01.2013
