| Antwerpen 24 September 2011 |
|
Name |

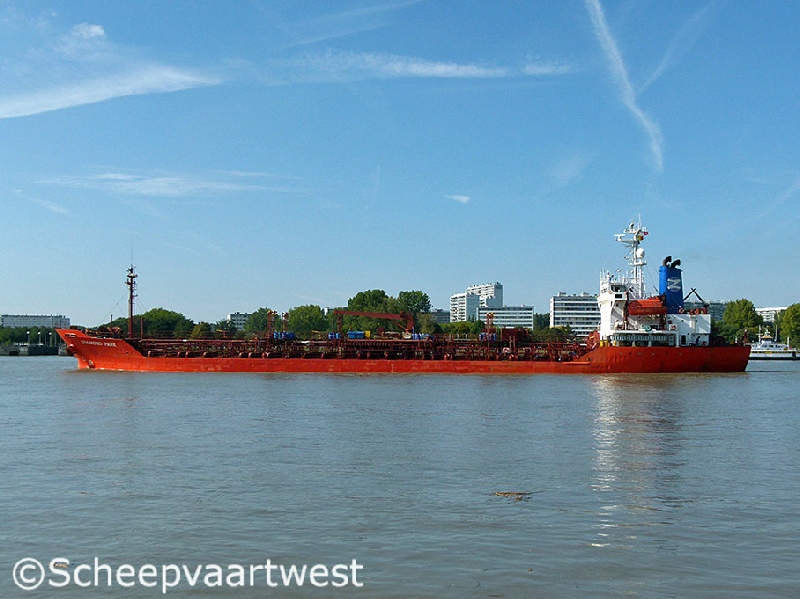

DIAMOND PARK |
|
Previous names |
1992 - 09.11.2011 Diamond Wave 09.11.2011 - 08.02.2001 Diamond Park - K/S UL Diamond - Republic of Panama 08.02.2001 - 04.03.2001 Tradewind Ocean 04.03.2001 - 01.11.2011 Diamond Park Renamed 01.11.2011 Namisa |
|
Type |
Chemical / Molasses / Oil products tanker |
|
IMO-number |
9031492 |
|
Call sign |
MGJE4 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
4.989 t |
|
DWT |
Summer: 9103,03 t |
|
NT |
2.747 t |
|
Length |
111,56 m overall |
|
Breadth |
18,00 m |
|
Draught |
7,613 m |
|
Moulded L x B x D |
104,00 x 18,80 x 9,56 m |
|
Registered L x B x D |
104,00 x 18,80 x 9,56 m |
|
Freeboard |
1.971 mm |
|
Depth |
9,56 m moulded |
|
Speed |
Service: 13,0 knots Max.: 14,1 knots |
|
Built |
1992 |
|
Keel laid |
26.09.1991 |
|
Launch date |
10.01.1992 |
|
Date of completion |
16.03.1992 |
|
Builder |
Asakawa Shipbuilding Co., Ltd. |
|
Yard number |
362 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 7UEC37LA - 2 stroke single acting 7 cylinder 370 x 880 mm diesel engine - 3.603 at 210,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
1x Sea water lubrication shaft |
|
Boilers |
1x Auxiliary vertical boiler - 9,4 bar Evaporation: 10,63 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Diesel generatorsets - 1.010 kVA |
|
Cargo capacity |
9.790 m³ |
|
Tank capacities |
Fuel oil: 595 m³ Fresh water: 359 m³ Water ballast: 2.491 m³ |
|
Manager |
Zodiac Maritime Agencies Ltd. |
|
Owner |
Lamport Maritime S.A. |
|
Renamed |
01.11.11 Namisa |
