| Westerschelde 06 September 2018 |
|
Name |

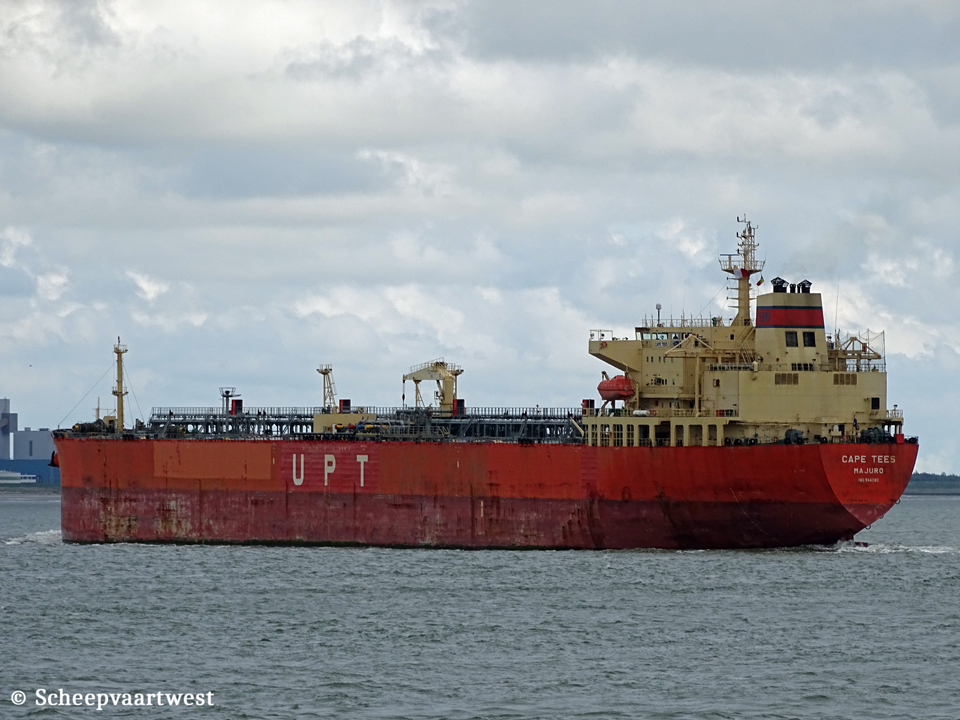

CAPE TEES |
|
Type |
Chemical & oil tanker - Panamax |
|
IMO-number |
9441180 |
|
Call sign |
V7RO4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GRT |
42.010 t |
|
DWT |
73.731 t |
|
NRT |
22.454 t |
|
Length |
228,60 m overall 219,70 m between perpendiculars |
|
Breadth |
32,30 m extreme |
|
Draught |
10,91 m |
|
Depth |
20,80 m |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
27/12/2006 |
|
Launch date |
22/01/2009 |
|
Date of completion |
12/05/2009 |
|
Builder |
New Times Shipbuilding Co., Ltd. Jingjiang City China |
|
Yard number |
0307355 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Bulkheads |
Water tight : 2 Oil tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x HHM/MAN B&W 5S60MC-C MK 7 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine Mcr 11.300 kW / 156.363 hp at 105,0 rpm Builder: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 101,0 rpm Builder: Wartsila CME Zhenjiang |
|
Boilers |
1x Auxiliary boiler Mission OC - 10,0 bar Heating surface: 548 m² 2x Auxiliary boiler, exhaust gas heated Mission OL 20T/H - 18,0 Bar Heating surface: 110 m² |
|
Generators |
3x 6N21AL-EV/Taiyo FE553B-10 main diesel generatorsets each 900 kW |
|
Emergency generator |
1x D12D-E MG/RC diesel generatorset 375 kVA - 300 kW - 408 hp |
|
Compressed air receivers |
2x Receivers, each 5.000 litres - 30,0 bar 1x Receiver 1.500 litres - 10,0 bar 1x Receiver 1.500 litres - 8,0 bar 1x Receiver 320 litres - 3,0 bar |
|
Number of tanks |
12 |
|
Cargo tank capacity |
Liquid: 81.311 m³ |
|
Slop tank capacity |
3.143 m³ |
|
Number of pumps |
3x Steam centrifugal cargo pumps each 2.300 m³/h |
|
Tank capacities |
Ballast: 25.283,02 m³ Fuel: 2.137 t |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Chain length: 687,50 m Diameter: 81 mm |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t 1x Hose handling crane - SWL 15,0 t 2x Hose handling davits each - SWL 1,0 t 1x Provision crane - SWL 5,0 t 1x Pump room pneumatic davit A-Deck - SWL 1,5 t |
|
Manager |
Columbia Shipmanagement Ltd. 21 Spyrou Kyprianou Avenue Yermasoyia - 4042 Limassol Cyprus |
|
Operator |
UPT - United Product Tankers GmbH & Co., Ltd. Große Elbstraße 275 Hamburg Germany |
|
Registered owner |
CL Cangzhou Limited Limassol Cyprus |
|
Latest data adjustment |
24 August 2023 |
