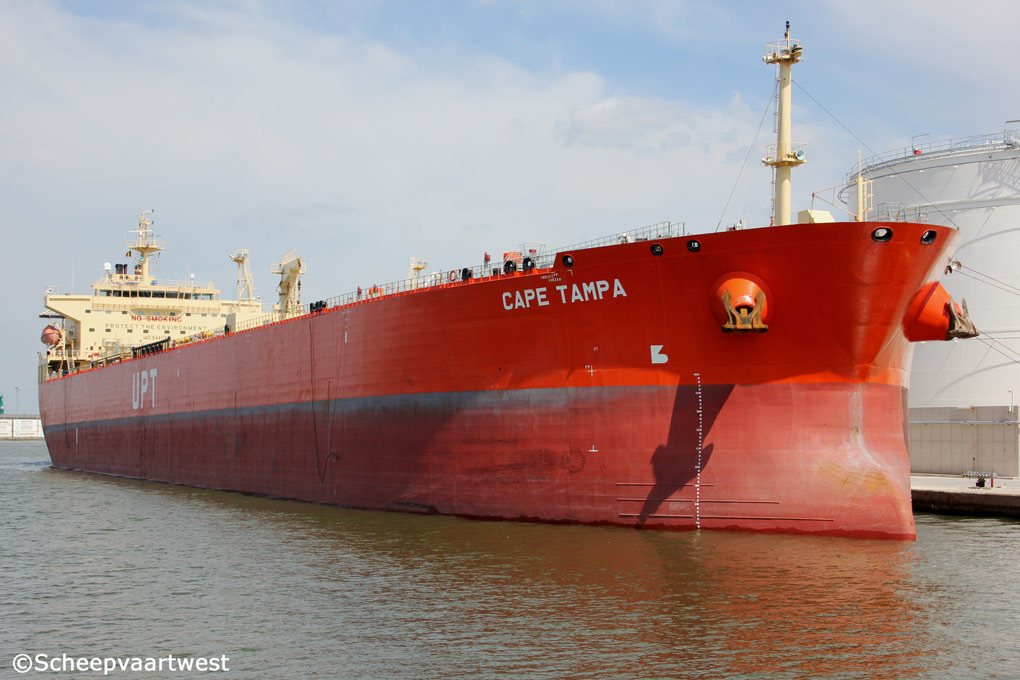

Cape Tampa 01

Antwerpen 24 July 2014

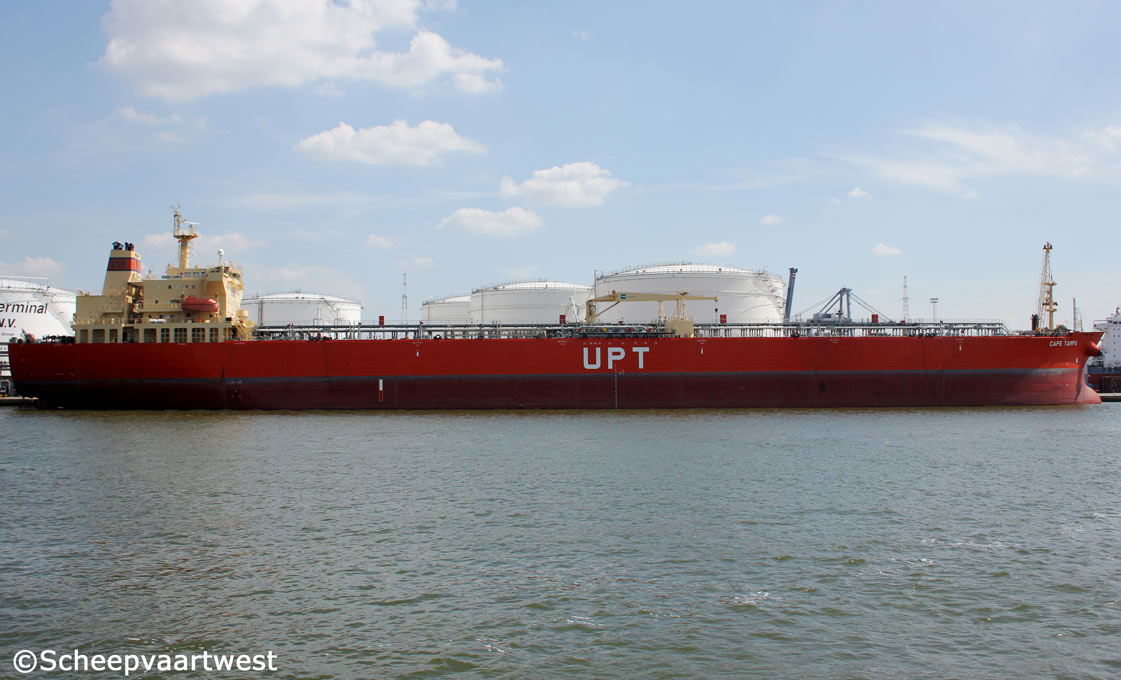

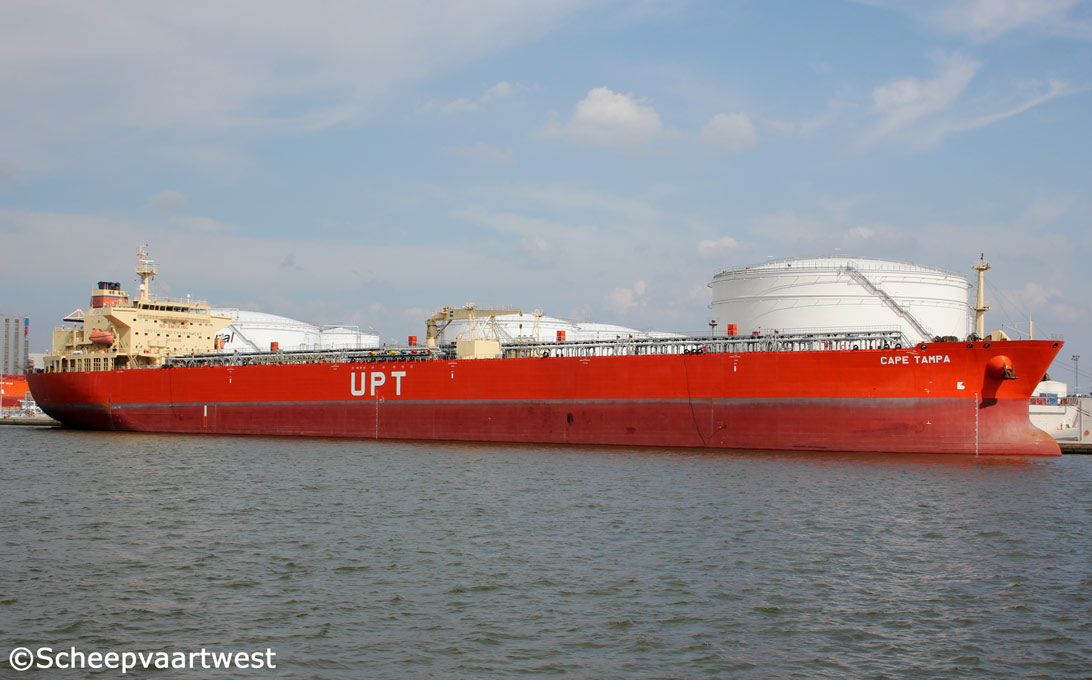

Cape Tampa 02   Cape Tampa 03
Antwerpen 24/07/14 Antwerpen 24/07/14


Name

CAPE TAMPA

Type

Tank for oil and chemical

IMO-number

9441166

Call sign

V7RC3

Flag

Marshall Island

Port of registry

Majuro

GT

42.010 t

DWT

73.719 t

NT

22.154 t

Suez: 39.766 t

panama: 34.705 t

Length

228,60 m overall

221,67 m registered

Breadth

32,26 m registered

Draught

14,50 m

Keel to mast end

49,64 m

Depth

20,80 m moulded

Speed

14,7 knots

Built

2009

Keel laid

27.12.2006

Launch date

10.12.2008

Date of completion

27.03.2009

Builder

New Times Shipbuilding Co., Ltd.
Danhua Gang Port
Jingjiang City, 214518
People's Republic of China

Yard number

0307353

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Double bottom

Watertight bulkheads

12

Continuous decks

1

Main engine

1x Hudong MAN B&W 5 S 60 MC-C MK 7 - 2 stroke 5 cylinder 600 x 2.400 mm diesel engine - 11.300 kW at 105,0 rpm

Year of manufacture: 2008

Manufacturer: Hudong Heavy Machinery Co., Ltd Jinqiao Branch
2851, Pudong Dadao
Shanghai, 200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller (Keyless) - aft at 105,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 10,0 bar

2x Steam boiler, oil fired - 18,0 bar

Heating surface: 110,0 m³

Year of manufacture: 2008

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 450 V - 1.125 kVA

1x Plant 450 V - 330 kVA

Generators

3x Main diesel generatorsets each 1.125 kVA

Emergency generator

1x Diesel generatorset 330 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 320 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

2x Receivers each 1.500 litres - 12,0 bar

Number of tanks

12

Cargo tanks 98%

81.276 m³

Slop tanks 98%

2.830 m³

Total liquid cargo cap. 98%

84.106 m³

Tank coating

Epoxy

Segregations

3

Pumps

6x 2.300 m³/h

Anchor equipment

3x Anchors weight each 11.100 kg

Chain length: 687,50 m

Lifting equipment

1x Crane - SWL 15,0 t

Manager

COLUMBIA Shipmanagement (Deutschland) GmbH
Große Elbstr. 275
22767 Hamburg
Federal Republic of Germany

Operator

UPT - United Product Tankers GmbH & Co. KG
Rödingsmarkt 20
20459 Hamburg
Germany

Registered owner

SAG Unternehmensbeteiligungsgesellschaft MT "CAPE TAMPA" mbH & Co. KG
Ruhrallee 9
44139 Dortmund
Federal Republic of Germany

Latest data adjustment

14 February 2015
