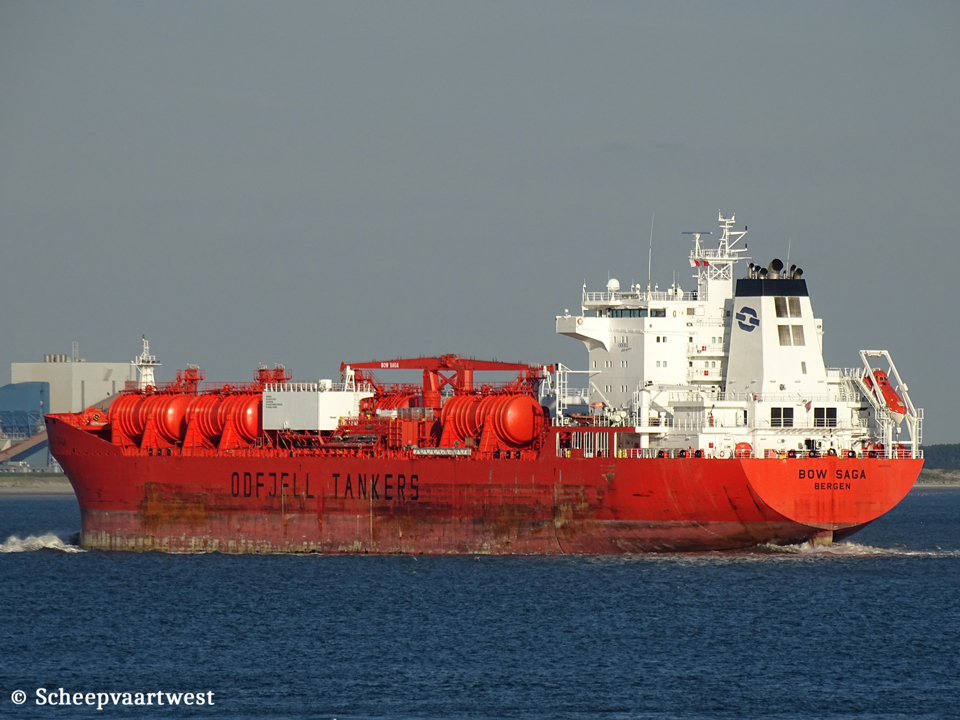

| Westerschelde 13 Auguist 2016 |
 |
|
| Westerschelde 15/08/16 | |
|
Name |
BOW SAGA |
|
Type |
Tanker for chemicals and oil products - Panamax |
|
IMO-number |
9215309 |
|
Call sign |
LADM7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
Republic of Singapore |
|
GT |
29.992 t Suez: 31.206 t |
|
DWT |
Summer: 44.950 t |
|
NT |
15.036 t |
|
Light ship |
14.372 t Suez: 26.983 t Panama: 24.903 t |
|
Length |
182,79 m overall 175,19 m between perpendiculars |
|
Breadth |
32,21 m extreme |
|
Draught |
13,28 m |
|
Keel to mast end |
46,63 m |
|
Depth |
17,96 m |
|
Speed |
Service: 14,6 knots |
|
Built |
2007 |
|
Keel laid |
15/03/2006 |
|
Launch date |
20/01/2007 |
|
Delivery date |
22/06/2007 |
|
Builder |
Stocznia Szczecinska Nowa Sp. z o.o. Szczecin Poland |
|
Yard number |
B588-III/8 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Longitudinal: 6 Transverse: 11 |
|
Continuous decks |
1 |
|
Main engine |
Wärtsilä NSD 6RTA58TB - 6 cylinder combustion engine 12.750 kW / 17.335 hp at 105,0 rpm Manufacturer: H. Cegielski Poznan - Poland |
|
Propellers |
1x Rolls-Royce controllable propeller |
|
Boilers |
2x Auxiliary boiler, oil/gas fired AQ-18 - 0,7 MPa 1x Auxiliary boiler, exhaust gas heated AV-7,- 0,7 MPa Builder: Aalborg Industries A/S |
|
Generators |
3x MAN-B&W 6L28/32H diesel generatorsets each 1.260kW / 1740 hp at 720 rpm |
|
Emergency generator |
1x MAN D 2866 E/TE/LE power generator 1.500 kVA |
|
Bow thruster |
1x Fixed pitch thruster 1.000 kW / 1.360 bhp Builder: Rolls-Royce Marine AS |
|
Number of cargo tanks |
40 |
|
Cargo tank capacity |
49.945 m³ |
|
Slop tank capacity |
1.138 m³ |
|
Number of pumps |
27x Cargo pumps each 230 m³/h 7x Cargo pumps each 330 m³/h 6x Cargo pumps each 100 m³/h |
|
Manifolds |
Summer waterline to manifold: 8,073 m Normal ballast waterline to manifold: 13,93 m Rail to manifold: 4,85 m Bow to centre of manifold:93,94 m |
|
Tank capacities |
Ballast: 16.676,7 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Crew size |
31 |
|
Manager |
Odfjell Management AS Conrad Mohrs veg 29 5072 Bergen Norway |
|
Registered owner |
Odfjell Chemical Tankers AS Conrad Mohrs veg 29 5072 Bergen Norway |
|
Latest data adjustment |
12 June 2023 |
