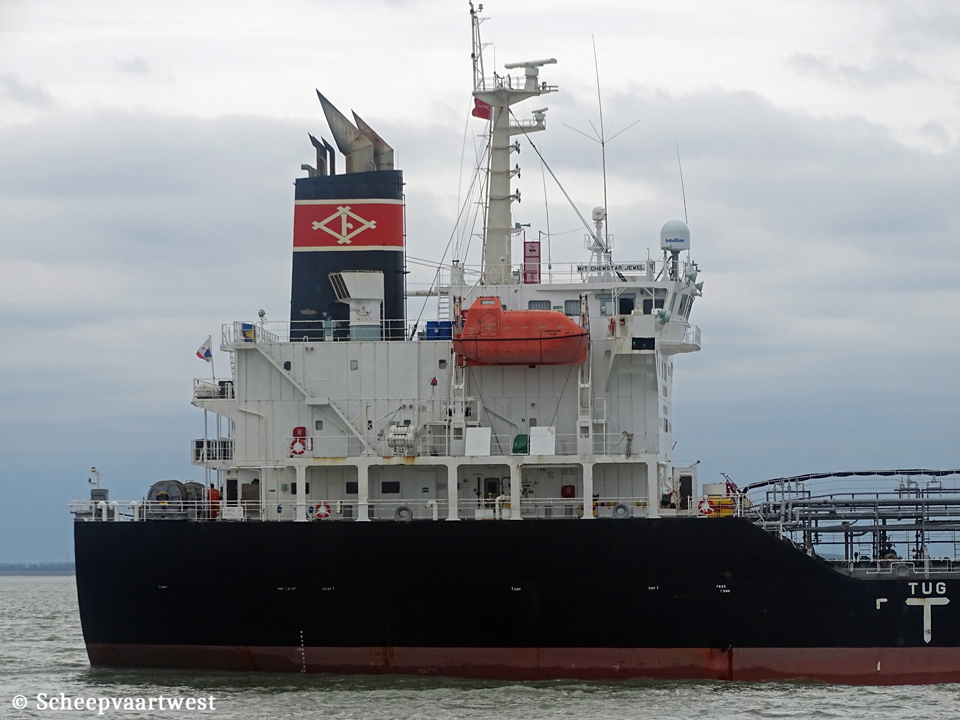

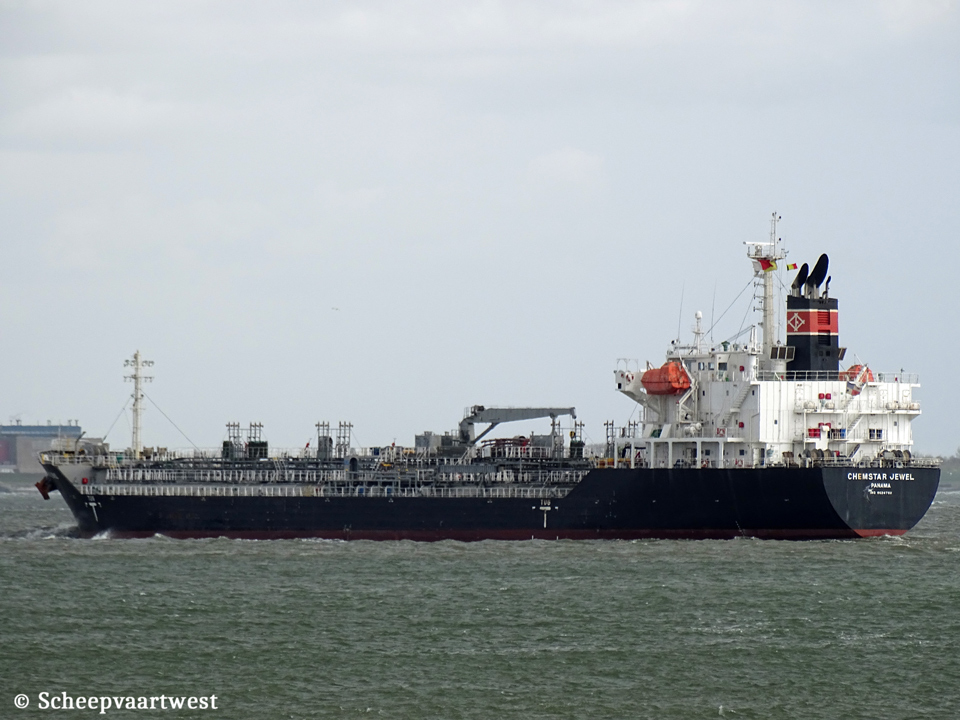

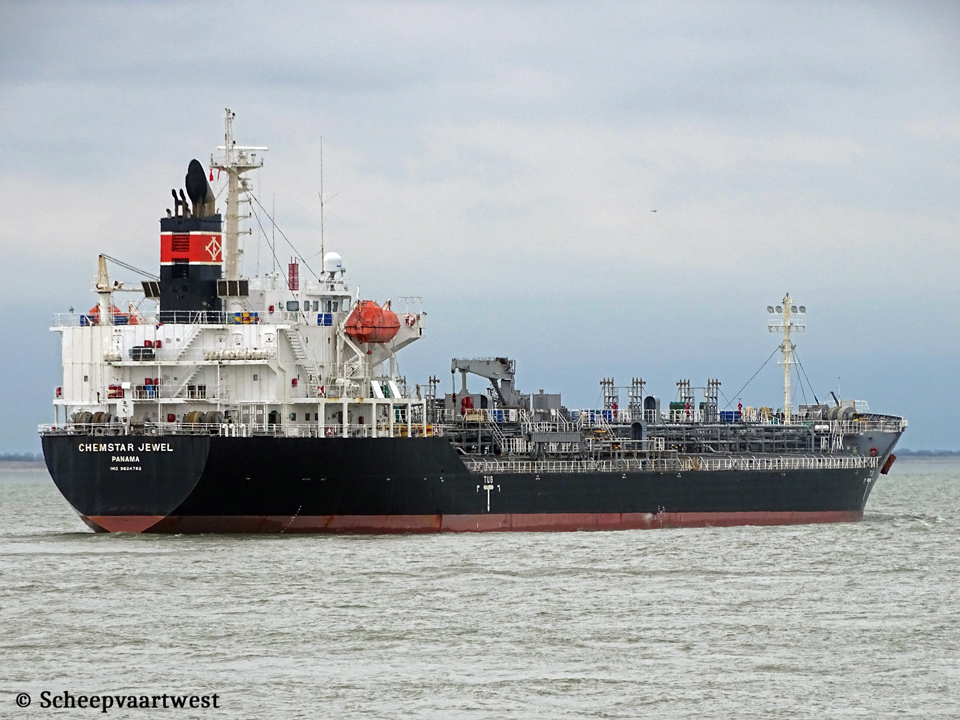

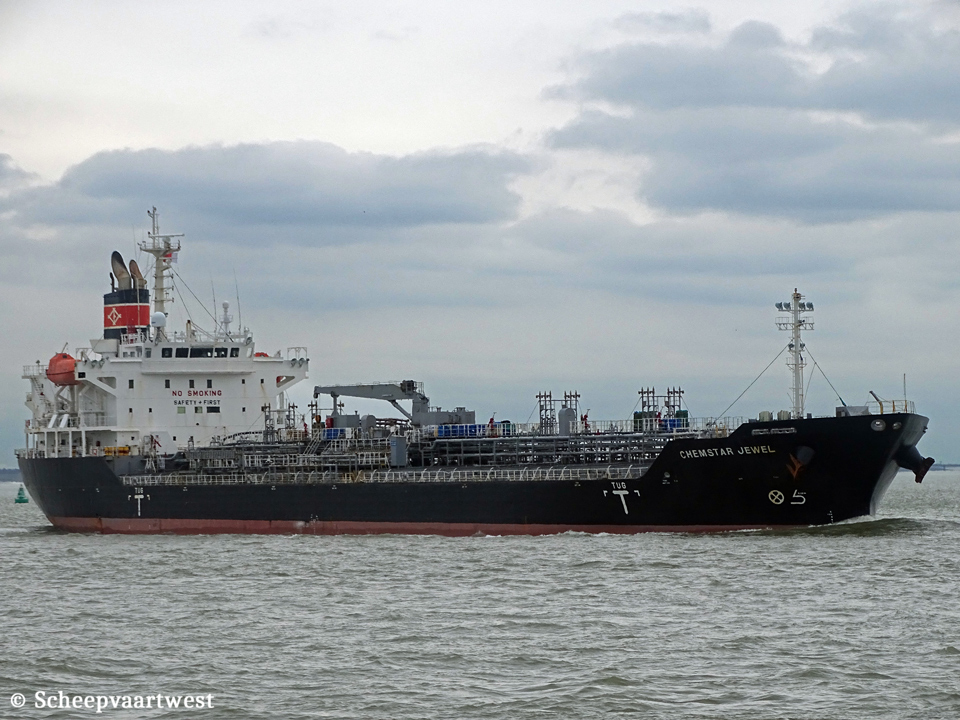

| Westerschelde 26 April 2016 |
|
Name |
CHEMSTAR JEWEL |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9624782 |
|
Call sign |
3FNI3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
12.226 t |
|
DWT |
21.313 t |
|
NRT |
6.534 t |
|
Length |
149,00 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
140,00 x 24,00 x 12,80 m |
|
Registered L x B x D |
140,03 x 24,00 x 12,80 m |
|
Freeboard |
Summer: 3.117 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max: 16,4 knots |
|
Built |
2012 |
|
Keel laid |
07/10/2011 |
|
Launch date |
08/03/2012 |
|
Date of completion |
04/06/2012 |
|
Builder |
Asakawa Shipbuilding Co., Ltd. Imabari Yard Japan |
|
Yard number |
606 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC43LSII - 2 stroke single acting 6 cylinder 430 x 1.500 mm combustion Mcr 6.300 kW / 8.565 hp at 160,0 rpm Builder: Builder: Akasaka Tekkosho KK (Akasaka Diesel Ltd.) - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 160,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 1,0 MPa Evaporation: 18,80 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 520 kW / 450 Volt 60 Hz |
|
Bow thruster |
1x Tunnel thruster 699 kW / 950 bhp, forward |
|
Cargo yank capacity |
Liquid: 22.559 m³ |
|
Number of pumps |
4x Cargo pumps each 200m³/h 14x Cargo pumps each 300m³/h |
|
Tank capacities |
Fuel oil: 1.245 m³ Fresh water: 332 m³ |
|
Manager |
Iino Marine Service Co., Ltd. Tokyo Japan |
|
Registered owner |
Sietemar SA Republic of Panama |
|
Renamed |
2021 Richmond Park Liberia, Monrovia - Call sign: 5LCM5 Owner: Noltyn Shipping Inc. Manager: Zodiac Maritime Limited |
|
Latest data adjustment |
11 April 2023 |
