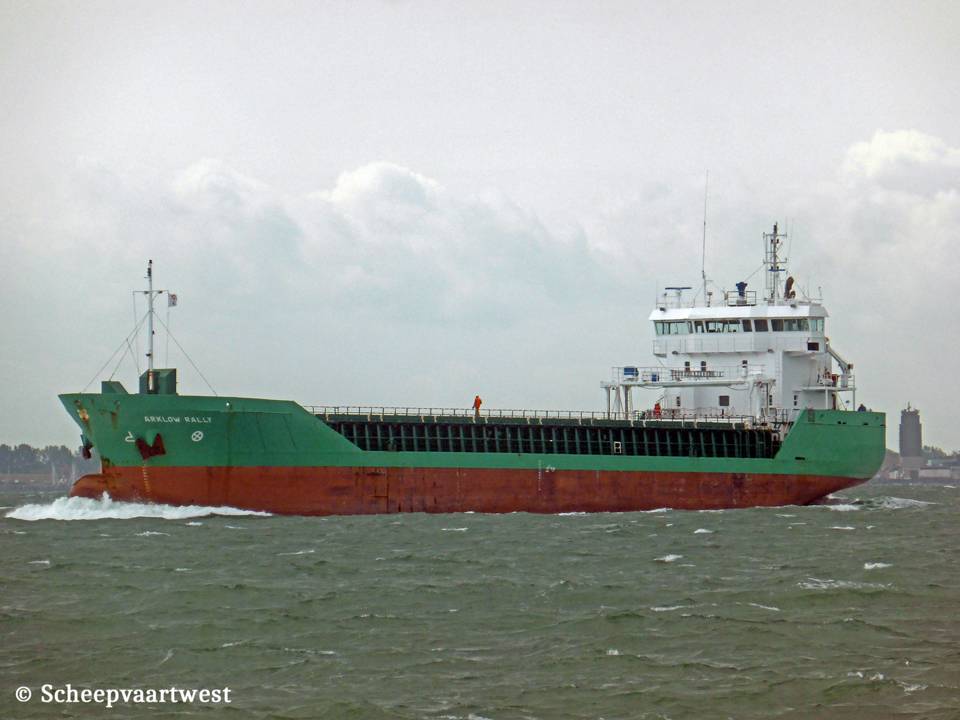

Arklow Rally 01

Westerschelde 25 June 2015



Name

ARKLOW RALLY

Type

General Cargo, Multi-purpose - heavycargo

IMO-number

9250414

Call sign

PBEG

Flag

The Netherlands

Port of registry

Rotterdam

GT

2.999 t

DWT

5.065 t

DWCC

Summer: 4.820 t

Winter: 4.700 t

NT

1.671 t

Number of 20ft containers

138

Length

89,99 m overall

84,85 m between perpendiculars

Breadth

14,45 m moulded

Draught

Max: 6,31 m

3,00 m in ballast

Air draft

Min 19,10 m at draft of 3,90 m

Freeboard

1.054 mm

Depth

7,35 m moulded

Speed

11,5 knots

Built

2002

Launch date

02/03/2002

Date of completion

12/04/2002

Builder

Scheepswerf Bijlsma Lemmer B.V. (Veka Shipyard Lemmer B.V.)
Lemmer
The Netherlands

Yard number

699

Hull material

Steel

Movable bulkheads

2x In 9 positions

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.446 hp at 750 rpm

Build: 2001

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Electric installations

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Shaft generator

1x 435 kVA

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 204 hp at 1.500 rpm

Bow thruster

260 kW

Number of holds

1x Narrows fore and aft

48,00 x 11,50 x 8,35 m full box hold

Total capacity of holds

5.922 m³ / 214.119 ft³

211.717 ft³ with bulkheads midships

Number of hatches

1

62,40 x 11,50 m clear opening

Hatch type

Roden staal pontoon type

Max permitted loads

Hatch covers: 1,6 t/m²

Tank Top: 15,0 t/m²

Tank capacities

Fuel IFO380: 190 m³

Gas oil: 190 m³

Fresh water: 40,8 m³

Lub oil: 13 m³

Ballast: 1.938 m³

Manager

Arklow Shipping Nederland B.V.,
Rotterdam
The Netherlands

Owner

S&P Bulk XI AS
Rotterdam
The Netherlands

Renamed

23/10/2017 Celtic Freedom

United Kingdom, Cardiff - Call sign: MCEF7

Manager & Owner: Charles M. Willie & Co. (Shipping) Ltd., Cardiff - United Kingdom

Latest data adjustment

21 July 2019
