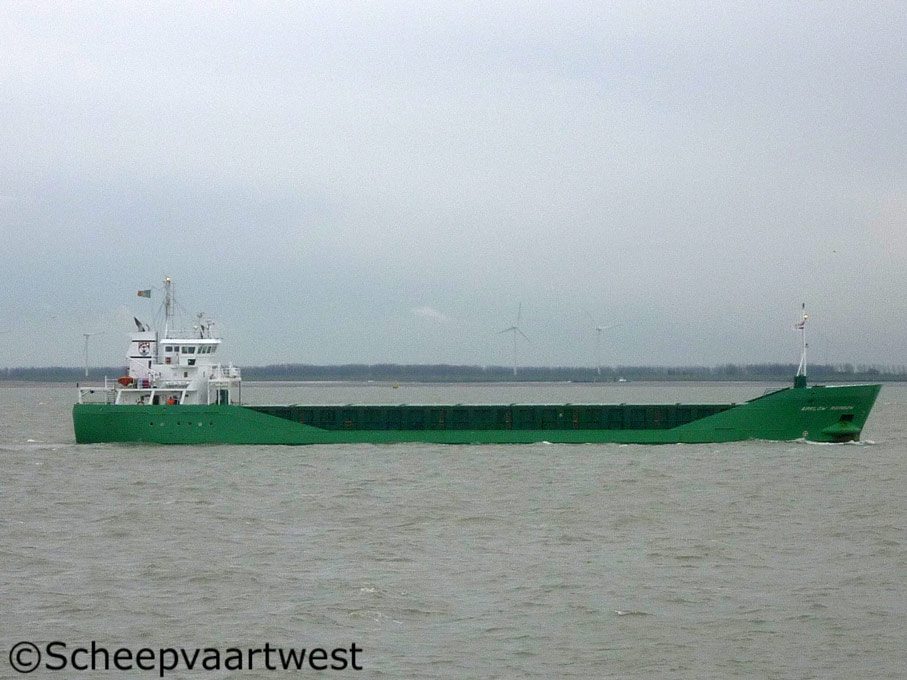

Arklow Rainbow 02
Westerschelde 14 December 2011

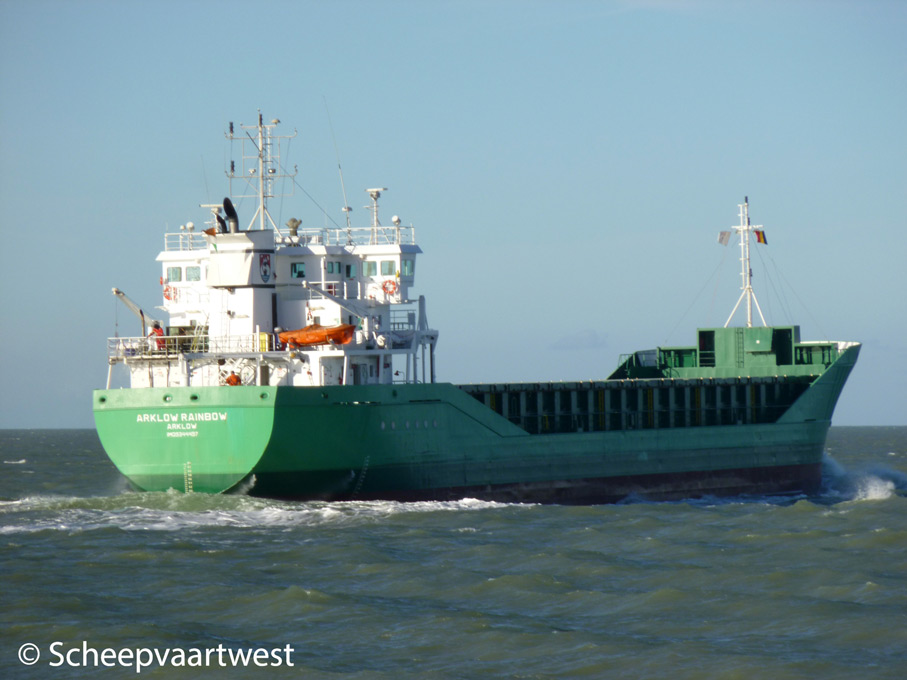

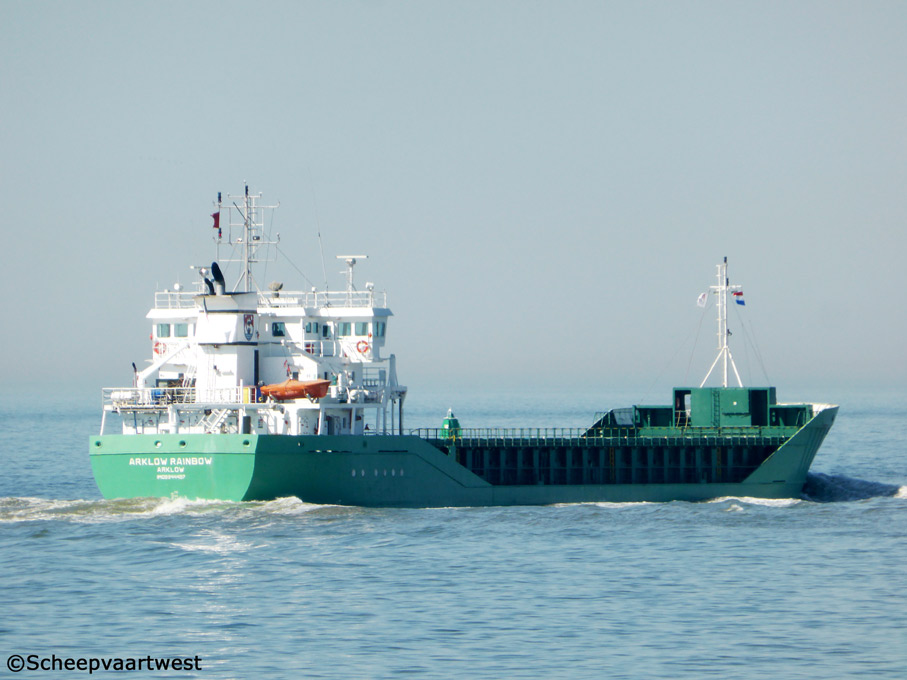

Arklow Rainbow 03   Arklow Rainbow 04
06/11/12   15/04/15



Name

ARKLOW RAINBOW

Type

General cargo ship - heavycargo

IMO-number

9344497

Official number

403348

Call sign

EICL

Flag

Ireland

Port of registry

Arklow

GT

2.999 t

DWT

4.485 t

NT

1.639 t

Displacement

5.906 t

Number of 20ft containers

In hold: 102

On deck: 36

Total: 138

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,00 m moulded

14,18 m extreme

Draught

5,68 m

Air draft

Min.: 20,60 m

Freeboard

1.286 mm

Depth

7,15 m moulded

Speed

11,5 knots

Built

2006

Date of completion

18.01.2006

Builder

Barkmeijer Stroobos B.V.
Stroobos
The Netherlands

Yard number

308

Hull material

Steel

Watertight compartments

5

Bulkheads

2x Portable bulkheads may be placed in 9 positions for cargo separation

Continuous decks

1

Main engine

1x MAK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.499 kW at 750 rpm

Built: 2005

Builder:MaK Motoren GmbH & Co. KG, kiel - Germany

Licence: Caterpillar

Electrical propulsion gen.

1x 320 kW - 400 Volt

Propelling system

1x Screw propeller controllable pitch

Electrical installation

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x Shaft alternator M8BM315MB4 - 400 kVA

Generators

2x Sisu 645BDBIC each 200 kW diesel engine at 1.500 rpm with each Stamford generator each 215 kVA

Bow thruster

1x Electric bow thruster 250kW

Number of holds

2

Total capacity of holds

Grain & Bales: 207.391 ft³ / 5.873 m³

Hatch type

Roden Staal pontoon system

Cargo hatchways

1

Dimension: 11,50 x 62,40 m

Maximum hatch top loading

1,5 t/m²

Maximum tank top loading

15,0 t/m²

Tank capacities

Ballast: 1.960 m³
Fuel - HFO: 150,52 m³
Fuel - GO: 36,42 m³
Fresh Water: 88 m³
Lub Oil: 19 m³

Manager

Arklow Shipping (Head Office)
North Quay
Arklow
Ireland

Operator

Arklow Shipping

Owner

Invermore Shipping Ltd.

Latest data adjustment

16 May 2015
