Troll 01

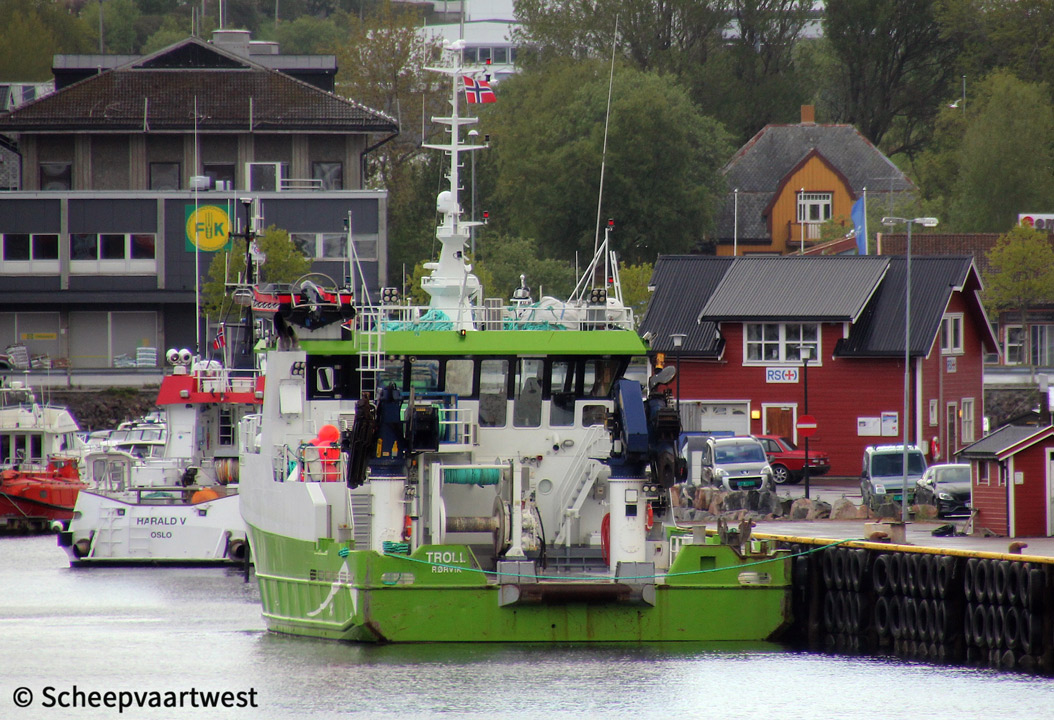

Rørvik, Norway 31 May 2019



Name

TROLL

Type

General dry cargo ship

IMO-number

9781578

Call sign

LDUZ

Flag

Norway

Port of registry

Rørvik

GT

242 t

NT

96 t

Length

23,98 m overall

Breadth

11,20 m

Draught

2,80 m

Depth

4,20 m moulded

Speed

11,0 knots

Built

2016

Builder casco

Tehnomont d.d.
Pula
Croatia

Builder completion

Moen Marin AS
Havnegt. 9
Pirsenteret
Norway

Yard number

100

Hull material

Steel/Aluminium

Hull type

Single hull

Main engine

1x Caterpillar C32Acert - 4 stroke 12 cylinder combustion engine 746 kW / 1.000 hp at 1.800 rpm

Propellers

1x Finnøy G42FK propeller

Diameter 1.900 mm / 4-blades with nozzle

Generators

1x Caterpillar C18 diesel generatorset 275 ekW at 1.500 rpm 400 Volt 50 Hz

1x Caterpillar C7.1 diesel generatorset 18 ekW at 1.500 rpm 400 Volt 50 Hz

Bollard pull

12 t

Capstan

4x Capstans are installed:

2x 3 tons and 2x 8 tons respectively

All capstans have emergency stop switches

Deck equipment

1x Double work/towing and anchor handling type 1-VA-60-AHB-SAI (60 t) build together with a 1-VA-10-AHB (10 t) winch

The Winch is delivered by MB Hydraulics

Anchor winch: MB Hydraulics 1-AV-22-K2

Hydraulics

The following equipment is powered by its own electro-hydraulic unit (3x 60kW) installed under main deck: -

1x Anchor winch

2x Deck cranes

4x Capstans

1x Hydraulic high pressure washer

1x Towing and Anchor handling winch

Hydraulic cylinders for deck hatch

Various deck equipment

Tank capacities

Fuel: 40.000 litres

Water tank: 20.000 litres

Ballast: 118 m³

Lifting equipment

1x Palfinger PK 90002 crane - SWL 6,5 t

1x Palfinger 65002 crane - SWL 3,5 t

Crew size

6x One-man cabins

Navigation & communication

JRC Radar, JMA-5312-6

Olex map-plotter

Telchart Dual Ecdis Chart System

JRC echo sounder

JRC Radio VHF

Registered owner

AQS Rederi AS
Havnegata 8
7900 Rørvik
Norway

Latest data adjustment

02 August 2019
