Triton Reefer

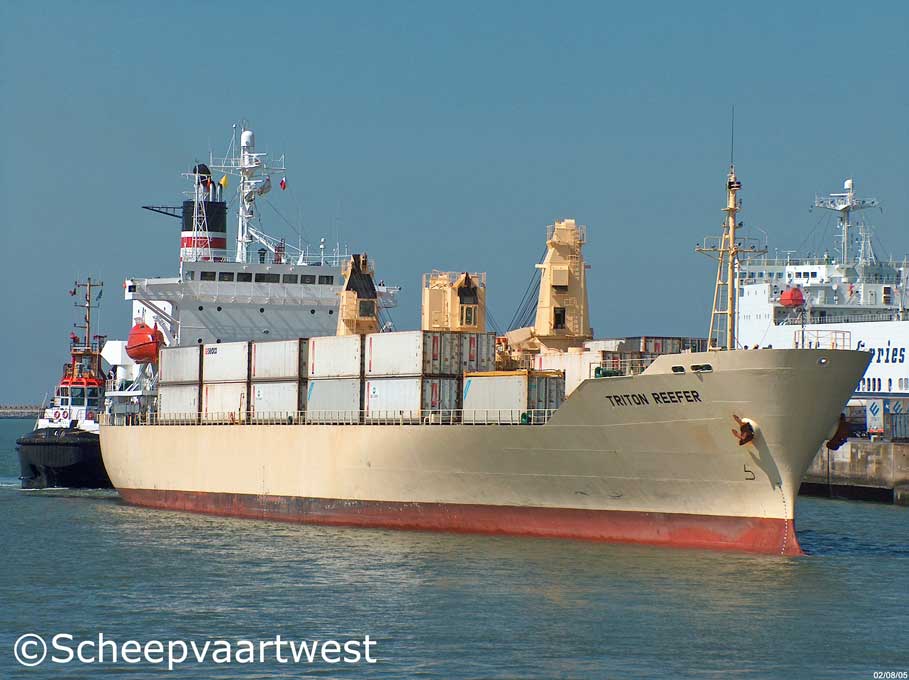

Zeebrugge 02 August 2005



Triton Reefer 02

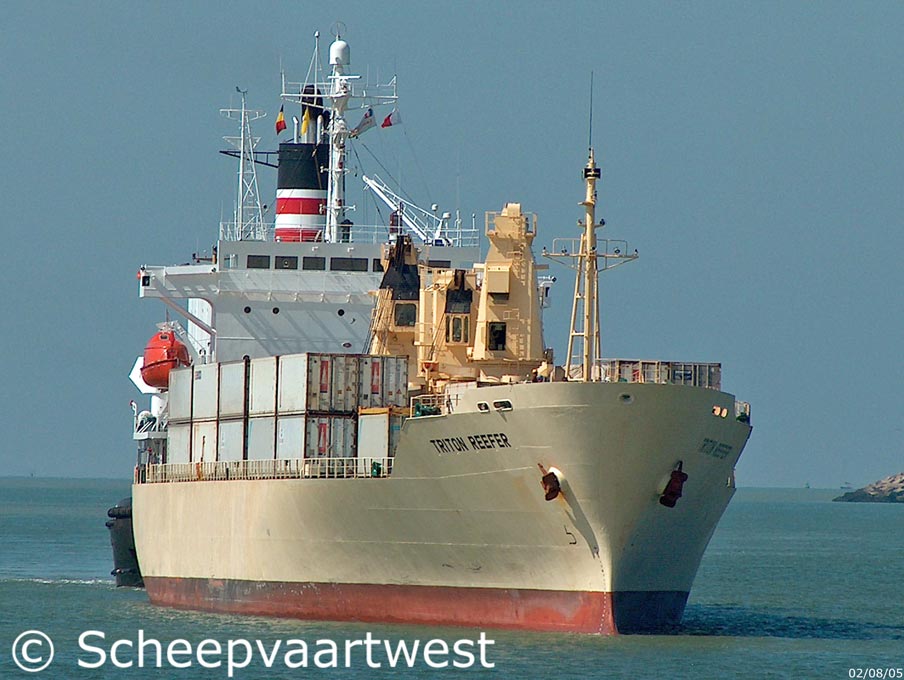

Zeebrugge 02/08/05



Name

TRITON REEFER

Location

Zeebrugge 02 August 2005 enter the 'Vandamme sea lock'

Type

Frozen cargo
Reefer vessel / Containership

IMO-number

8911102

Classification

Nippon Kaiji Kyokai

Call sign

ELLM5

Flag

Liberia

Port of registry

Monrovia

GT

8.818 t

DWT

Summer: 9.683 t

NT

3.810 t

Length

144,03 m overall
136,02 m between perpendiculars
136,42 m registered

Breadth

21,61 m overall

Moulded L x B x D

136,00 x 21,60 x 12,85 m

Registered L x B x D

136,42 x 21,60 x 12,85 m

Draught

Summer: 8,124 m

Freeboard

Summer: 4.762 m

Depth

12,86 m

Speed

Abt. 20,0 knots

Built

1990

Keel laid

05.07.1989

Launch Date

02.10.1989

Date of completion

19.01.1990

Builder

Shin Kurushima Dockyard Co., Ltd.
Onishi
Japan

Yard number

2656

Hull type

Single hull

Main engine

1x Mitsubishi - 2 stroke single acting 6 cylinder 520 x 1.850 mm diesel engine - 10.813 hp / 7.985 kW at 120 rpm

Manufacturer: Kobe Diesel Co., Ltd. Kobe Works

Number of screws

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar
Evaporation: 2,51 t/h
Manufacturer: Tortoise Engineering Co., Ltd.

Generators

5x Diesel generatorsets 3.060 kVA

Cargo capacity

Refrigerated: 12.863 m³
20 feet containers: 76
40 feet containers: 50

Tank capacities

Fuel oil: 1.275 m³
Freshwater: 252 m³
Water ballast: 1.725 m³

Cargo handling gears

1x Crane - SWL 2,0 t
2x Hydraulic cranes - SWL 5,0 t each
2x Hydraulic cranes - SWL 30,4 t each

Radio installations

GMDSS A1+A2+A3: Global Maritime Distress Safety System

Navigation equipment

GYRO: Gyro Compass
HCS: Heading Control System
RDX: 9 GHz Radar
ES: Echo Sounder

Manager

Wallem Group
Hong Kong
China

Operator

NYK - Nippon Yusen Kaisha Line

Registered owner

NYK Reefers Limited
London
United Kingdom

Scrapped

2018 at Alang - India
