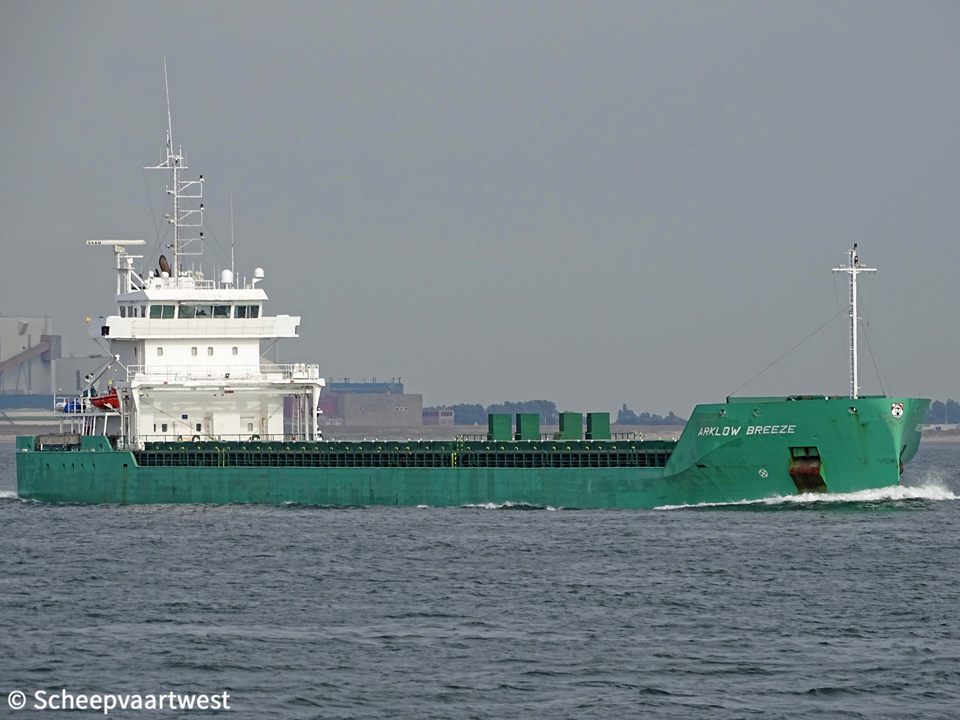

Arklow Breeze 01

Westerschelde 22 July 2018

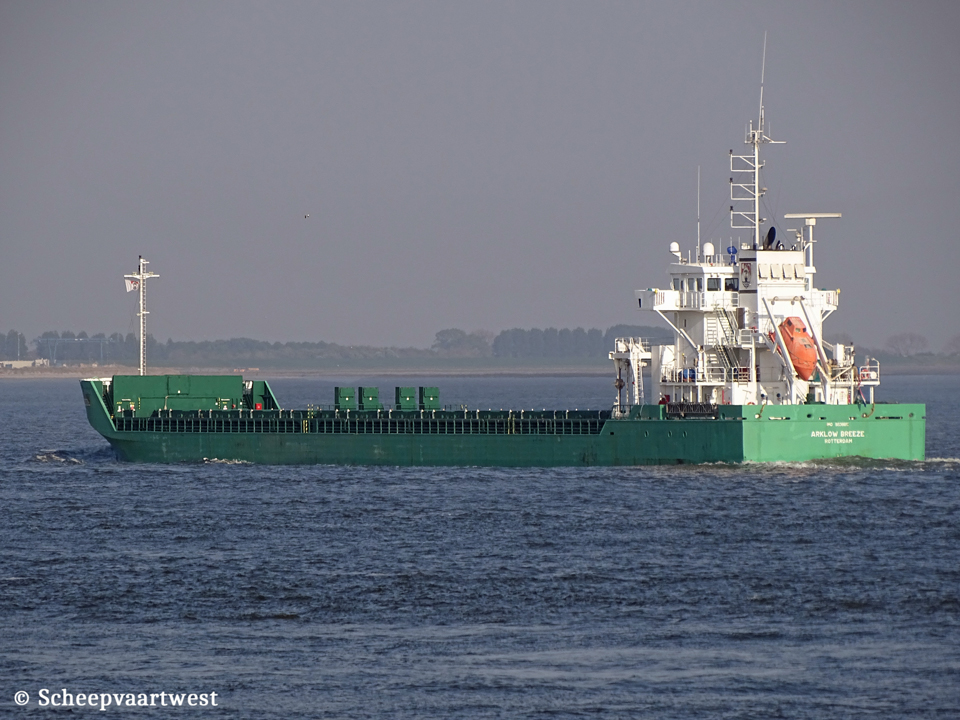

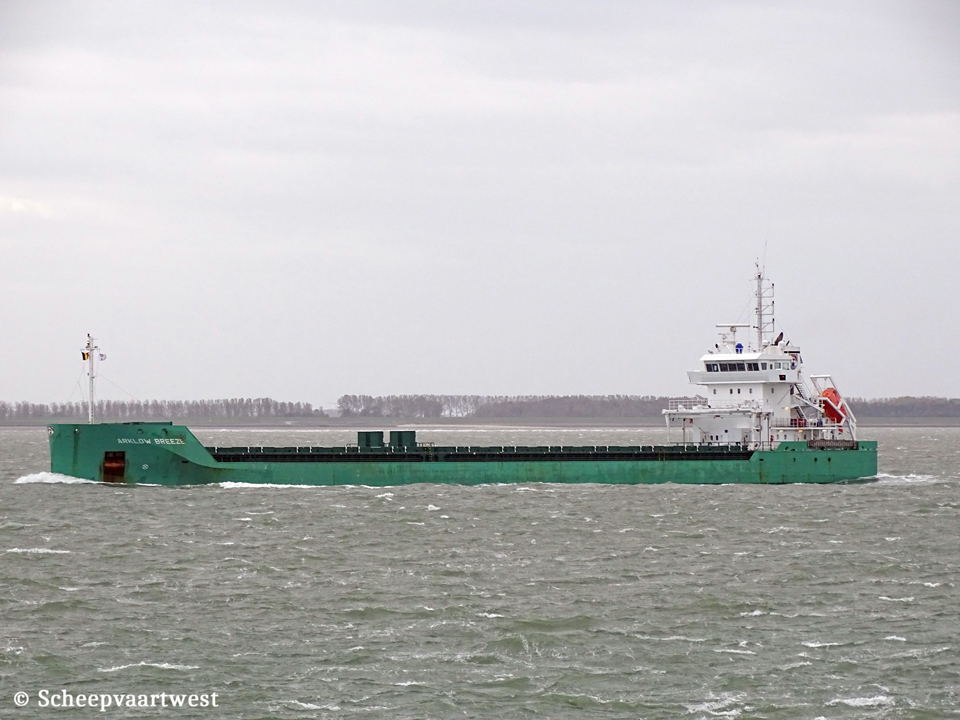

Arklow Breeze IMO 9638812 02   Arklow Breeze IMO 9638812 03
Westerschelde 02/11/19   Westerschelde 23/04/20


Name

ARKLOW BREEZE

Type

General cargo ship - Multi-purpose - heavycargo

IMO-number

9638812

Call sign

PCZP

Flag

The Netherlands

Port of registry

Rotterdam

GT

5.065 t

DWT

8.660 t

NT

2.655 t

Displacement

10.815 t

Length

119,49 m overall

116,89 m between perpendiculars

Breadth

14,99 m

Draught

Summer: 7,19 m

Freeboard

2.524 mm

Depth

9,70 m

Speed

13,1 knots

Built

2015

Launch date

20/03/2015

Date of completion

24/04/2015

Builder

Scheepswerf Ferus Smit B.V.

Westerbroek

The Netherlands

Yard number

414

Hull material

Steel

Movable bulkheads

Portable bulkhead may be placed in 5 positions for cargo separation and storage position

Continuous decks

1

Main engine

1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.665 kW / 3.621 bhp at 750 rpm

Built: 18/09/2014

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 143,0 rpm

Shaft generator

1x 530 kVA - 424 kW

Generators

2x Sisu Diesel main diesel generatorsets each 295 kVA - 236 kW - 340 hp at 1.500 rpm

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 158 hp

Bow thruster

1x Electric bow thruster 380 kW

Number of holds

2

Total capacity of holds

Grain & bale

Hold 1: 4.034,7 m³ / 142?484 ft³

Hold 2: 5.867,9 m³ / 207.222 ft³

Total: 9.902,6 m³ / 349.706 ft³

Hatch type

Coops & Nieborg pontoon system

Max permitted loads

Hatch cover: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Ballast: 3.547 m³

HFO: 286 m³

GO: 38 m³

Freshwater: 53 m³

Lub oil: 22 m³

Manager

Arklow Shipping Nederland B.V.

Hoofdweg 18

3067 GH Rotterdam

The Netherlands

Registered owner

Glenthorne Shipping Ltd.

Arklow

Ireland

Latest data adjustment

11 October 2022
