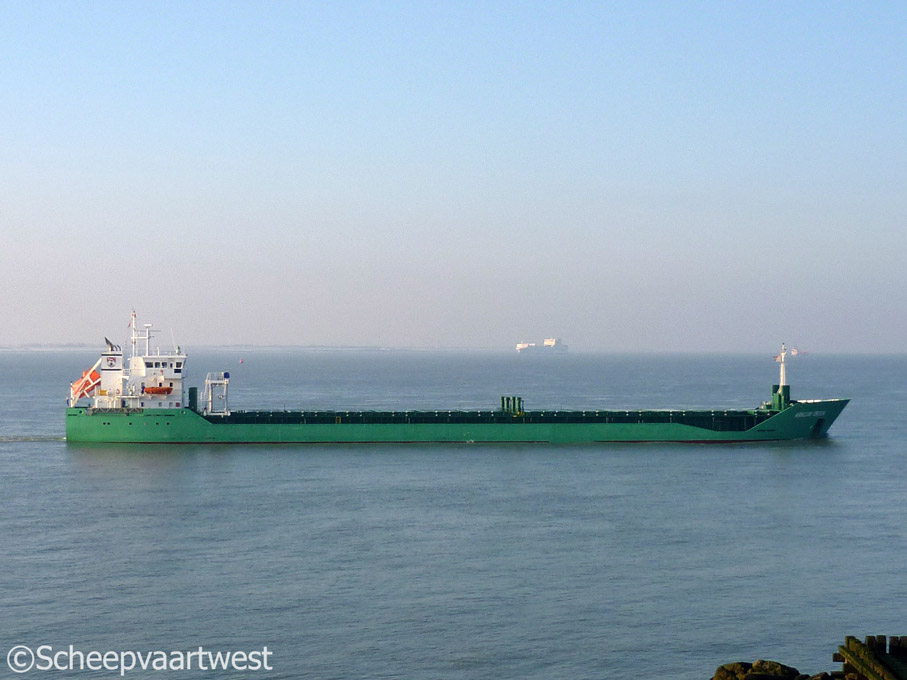

Arklow Brook 01
Westerschelde 10 February 2012

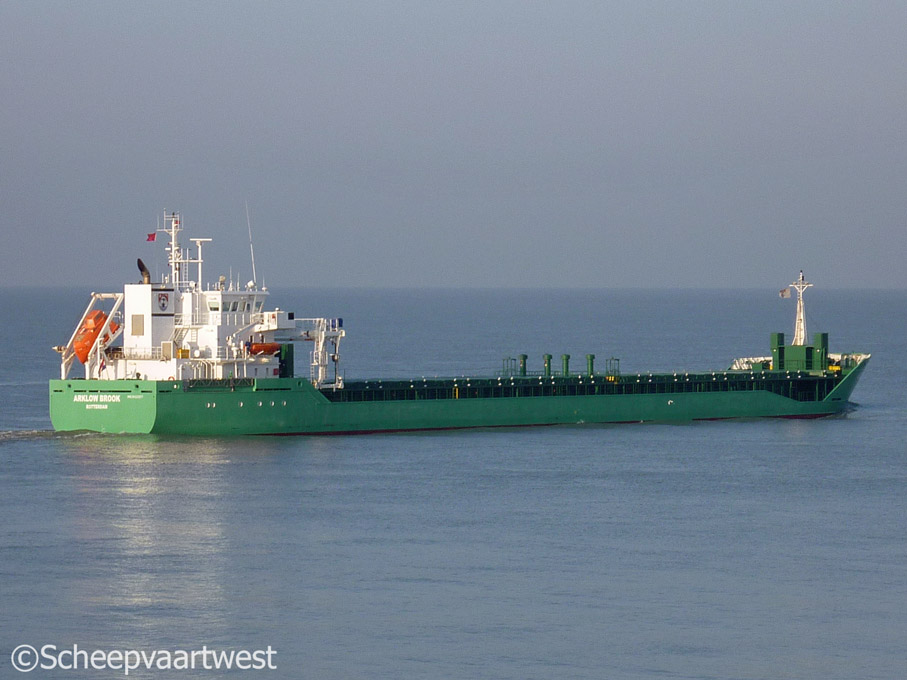

Arklow Brook 04
10/02/12



Name

ARKLOW BROOK

Launch as

2011 Ensara - Home port: St. Johns - Antigua & Barbuda - Reederei Erwin Strahlmann

Type

General cargo ship - heavycargo - equipped for carriage of containers

IMO-number

9433377

Call sign

PBGQ

Flag

The Netherlands

Port of registry

Rotterdam

GT

4.723 t

DWT

7.400 t

NT

2.493 t

Displacement

9.637 t

Number of 20ft containers

In hold: 170

on deck: 88

Total: 258

Length

116,08 m overall

109,78 m between perpendiculars

Breadth

15,80 m moulded

Draught

6,38 m

Air draft

22,25 m

Freeboard

2.524 mm

Depth

8,90 m moulded

Speed

12,5 knots

Built

2011

Launch date

09.07.2010

Date of completion

14.01.2011

Builder

Bodewes Shipyards BV
Hoogezand
The Netherlands

Yard number

774

Hull material

Steel

Bulkheads

Portable bulkhead may be placed in 8 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 6M32C with Renk gearbox - 4 stroke 6 cylinder 320 x 480 mm diesel engine - 2.999 kW / 4.075 hp at 600 rpm

Builder:Caterpillar Motoren GmbH & Co., KG, Kiel - Germany

Propellers

1x Berg screw propeller controllable pitch at 190 rpm

Shaft generator

1x 435 kVA - 348 kW

Generators

2x Sisu-Leroy Somer diesel generatorsets each 262 kVA - 210 kW - 340 hp at 1.500 rpm

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 148 hp

Bow thruster

1x Electric bow thruster 300 kW

Number of holds

2

Hold 1: 4.205,90 m³ / 148.523 ft³

Hold 2: 5.267,20 m³/ 186.001 ft³

Total: 9.473,10 m³ / 334.524 ft³

Hatch type

Coops & Nieborg pontoon system

Max. hatch top loading

1,5 t/m²

Max. tank top loading

15,0 t/m²

Tank capacities

Fuel oil: 297 m³

Gas oil: 43 m³

Fresh water: 57 m³

Water ballast: 3.120 m³

Lub oil: 12 m³

Manager

Arklow Shipping Nederland BV
Rotterdam
The Netherlands

Registered owner

Arklow Shipping Nederland BV
Hoofdweg 18
3067 GH Rotterdam
The Netherlands
