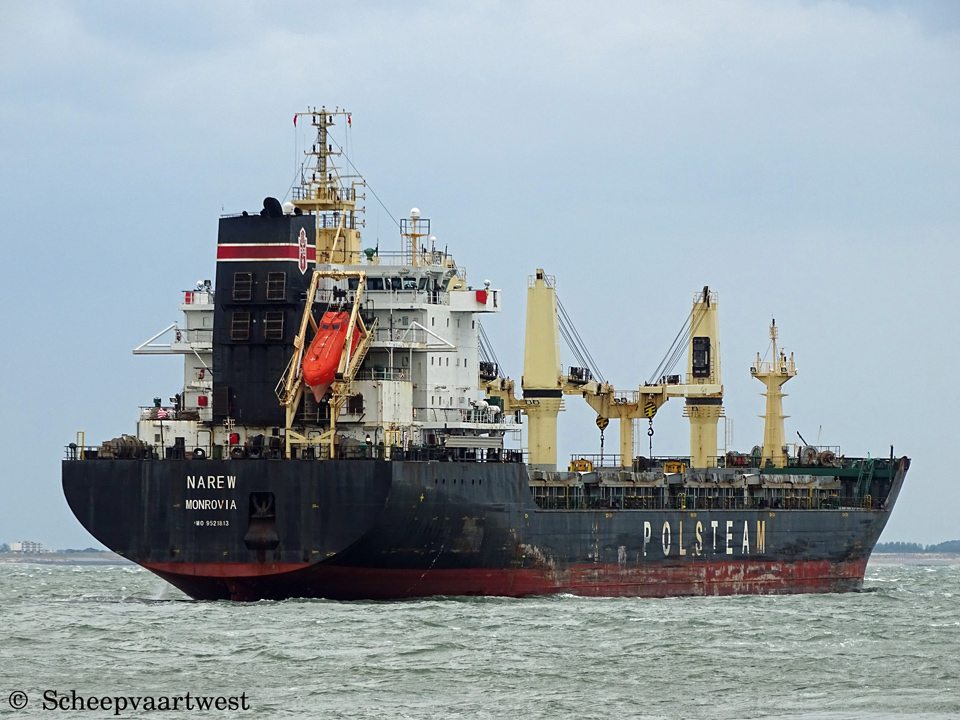

Narew 01

Westerschelde 10 August 2018

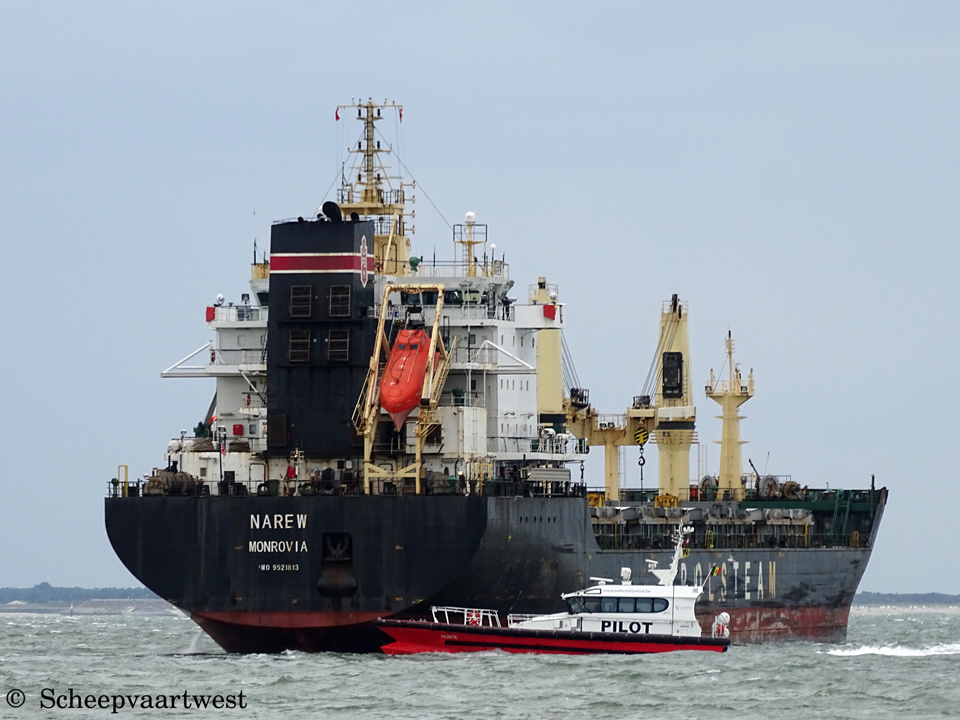

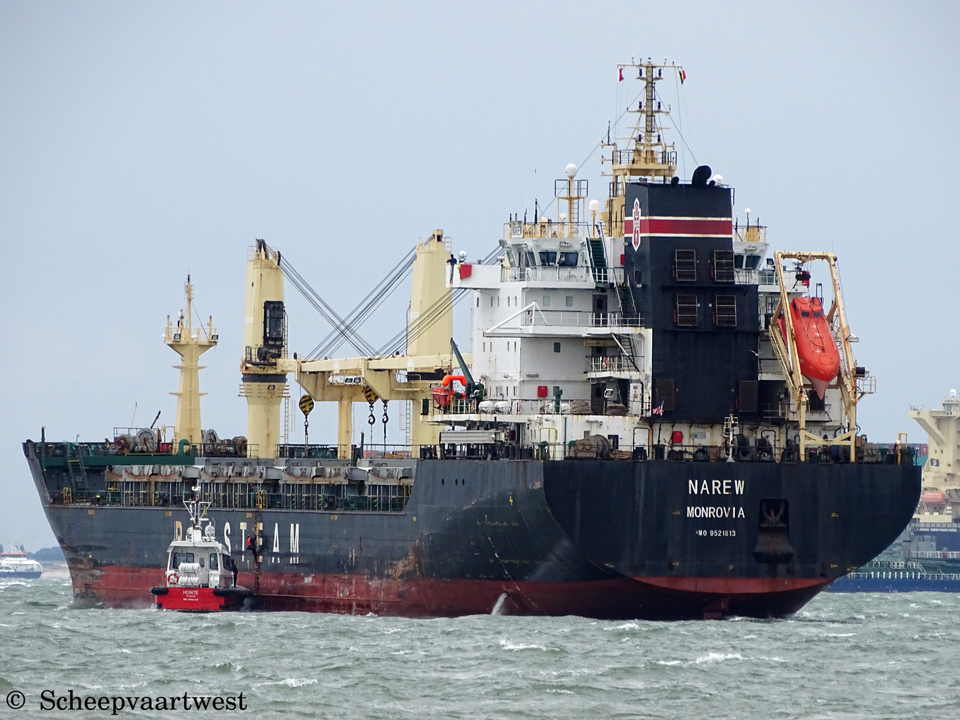

Narew 02   Narew 03
Westerschelde 10/08/18   Westerschelde 10/08/18



Name

NAREW

Type

Geared / Grab fitted bulk carrier- Handysize

IMO-number

9521813

Call sign

A8ZQ6

Flag

Liberia

Port of registry

Monrovia

GT

13.579 t

DWT

17.060 t

NT

5.247 t

Length

149,96 m overall

140,80 m between perpendiculars

Breadth

23,60 m extreme

Draught

Max: 8,60 m

Depth

12,60 m

Speed

Max: 14,5 knots

Built

2012

Keel laid

03/06/2010

Launch date

30/06/2011

Date of completion

16/03/2012

Builder

Taizhou Sanfu Ship Engineering Co., Ltd.
Jiangsu
China

Yard number

SF080102

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

12

Continuous decks

1

Main engine

1x CSIC Electrical Machinery STX MAN - 5S50MC-C - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 6.570 kW / 8.935 bhp

Propellers

1x Controllable pitch propeller Scana Zamech type PH1350/4-R355

Boilers

1x Auxiliary boiler, composite

Generators

1x Wärtsilä 4L20 main diesel generatorset 648 kW

2x Wärtsilä 4L20 main diesel generatorsets each 520 kW

Bow thruster

600 kW

Number of holds

5

Cargo hold capacity

Grain: 23.800 m³

Number of tanks

Ballast: 14
Fuel oil:12
Lubricating oil: 10
Diesel oil: 4
Fresh water: 4
Waste water: 4
Hydraulic oil: 2
Chain: 2
Sludge: 2
Organic compound: 1

Tank capacities

Ballast: 12.777 m³
Diesel oil: 139,1 t
Freshwater: 233,1 t
Hydraulic oil capacity: 2,7 t
Lube oil: 116,8 t

Lifting equipment

1x Fuchs telescope crane - SWL 3,0 t

Cargo gear

3x Nantong Rainbow Heavy Machineric cranes type: GLBE3022-2/2422GR - SWL 30,0 t each

Manager

Polsteam Polska Żegluga Morska
Szczecin
Polska

Operator

Polsteam
Szczecin
Poland

Registered owner

Hermione Two Maritime Ltd.

Latest data adjustment

23 December 2018
