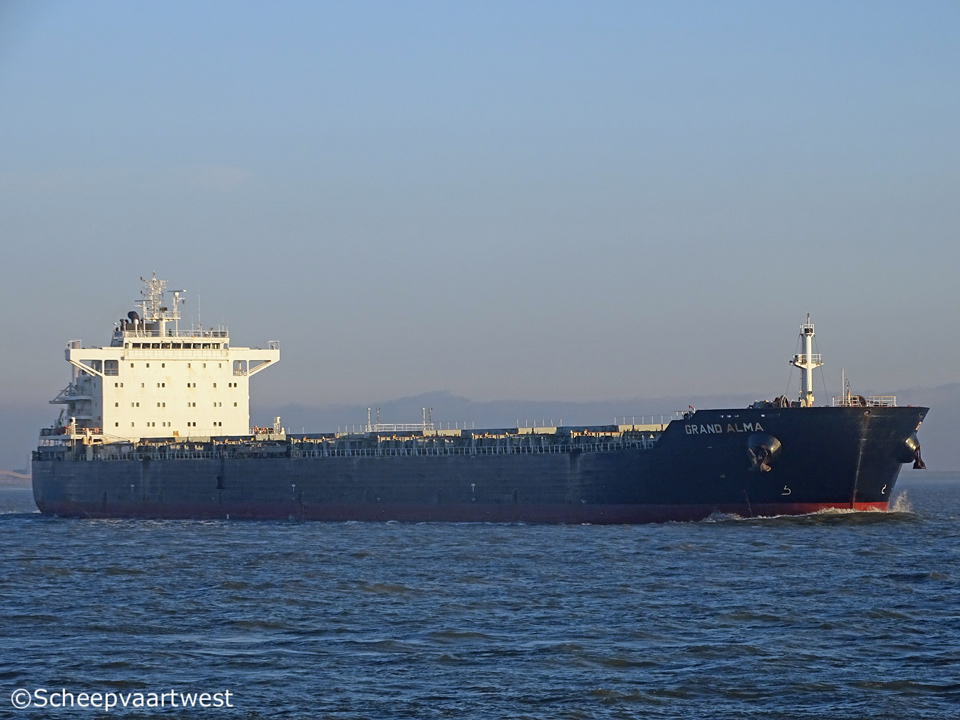

Grand Alma 01

Westerschelde 12 December 2017



Name

GRAND ALMA

Type

Bulk carrier

IMO-number

9566825

Call sign

VRIM6

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

43.501 t registered

Suez: 45.258,49 t

DWT

Summer: 79.445 t

NT

27.819 t registered

Panama: 35.918 t

Suez: 41.283,93 t

Length

229,00 m overall

222,00 m between perpendiculars

Breadth

32,36 m moulded

Freeboard

5.653 mm

Depth

20,25 m moulded

Speed

14,0 knots

Built

2011

Keel laid

08/04/2010

Launch date

02/03/2011

Delivery date

06/09/2011

Builder

Zhoushan Jinhaiwan Shipyard Co., Ltd.
Zhoushan
China

Yard number

J0072

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

9

Continuous decks

1

Main engine

1x ZHD MAN B&W 5S60MC-C8 - 5 cylinder 600 x 2.400 mm combustion engine 11.900 kW at 105,0 rpm
Manufacturer: Zhongji Hitachi Zosen Diesel Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Co., Ltd.

Boilers

1x Composite boiler type Mission O - 7,0 bar

Manufacturer: Greens Power Equipment (China) Ltd.

Generators

3x Main diesel generatorsets each 700 kW

Manufacturer: Nishishiba Electric Co., Ltd.

Number of holds

7

Cargo hold capacity

Grain:

Hold 1: 10.660,03 m³
Hold 2: 15.752,09 m³
Hold 3: 15.406,18 m³
Hold 4: 13.761,38 m³
Hold 5: 14.833,68 m³
Hold 6: 15.761,21 m³
Hold 7: 11.711,14 m³

Number of hatches

7

1x 13,05 × 13,20 m
5x 15,56 × 15,00 m each
1x 13,05 × 15,00 m

Number of tanks

Ballast: 24

Fuel oil: 11

Lubricating oil: 9

Fresh water: 5

Sludge: 4

Diesel oil: 3

Chain: 2

Waste water: 1

Sea water: 1

Organic compound: 1

Tank capacities 100%

Diesel Oil: 193,11 m³ / 164,14 t

Freshwater: 427,29 m³

Fuel Oil: 3.079,26 m³ / 3.018,11 t

Lube Oil: 192,19 m³ / 173,53 t

Tank Ballast: 19.440,34 m³ / 19.926,34 t

Lifting equipment

1x Engine room overhead crane - SWL 4,0 t

Manufacture: Jiangyin Xingcheng Marine Machinery Factory

1x Mono-rail provision crane - SDWL 4,0 t

Manufacture: Ningbo Kairong Ship Machinery Co., Ltd.

Manager

Shanghai Zhi Jing International Ship Management Co., Ltd.
Room Fghij, 15F Pufa Tower, No. 588 South Pudong Rd
Shanghai
China

Registered owner

Grand Huanghe Shipping Limited

Latest data adjustment

14 June 2018
