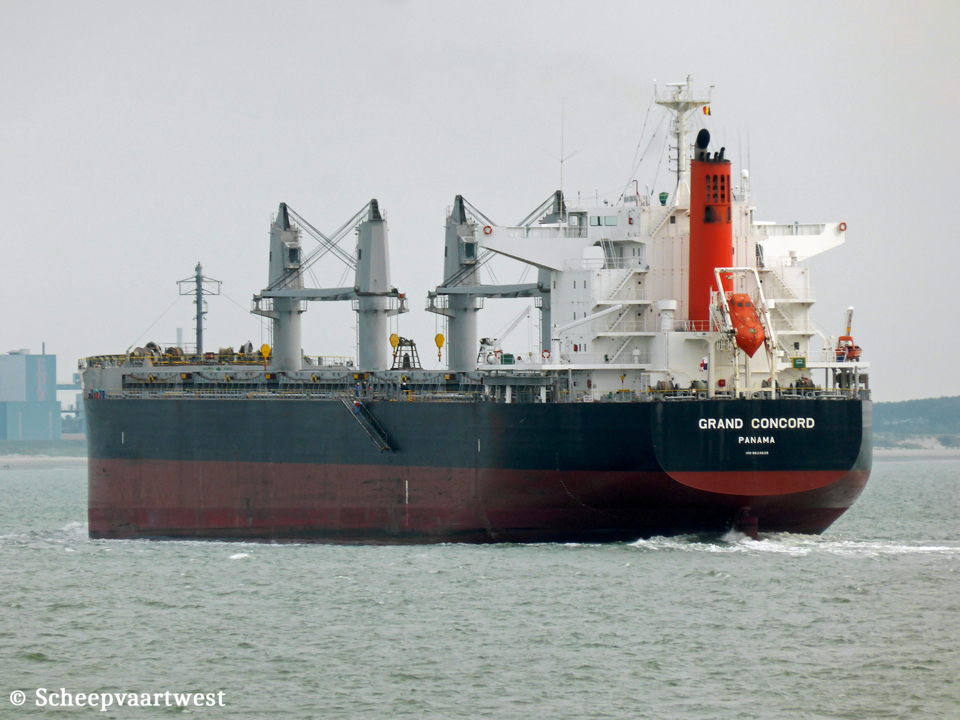

| Westerschelde 21 April 2015 |
 |
|

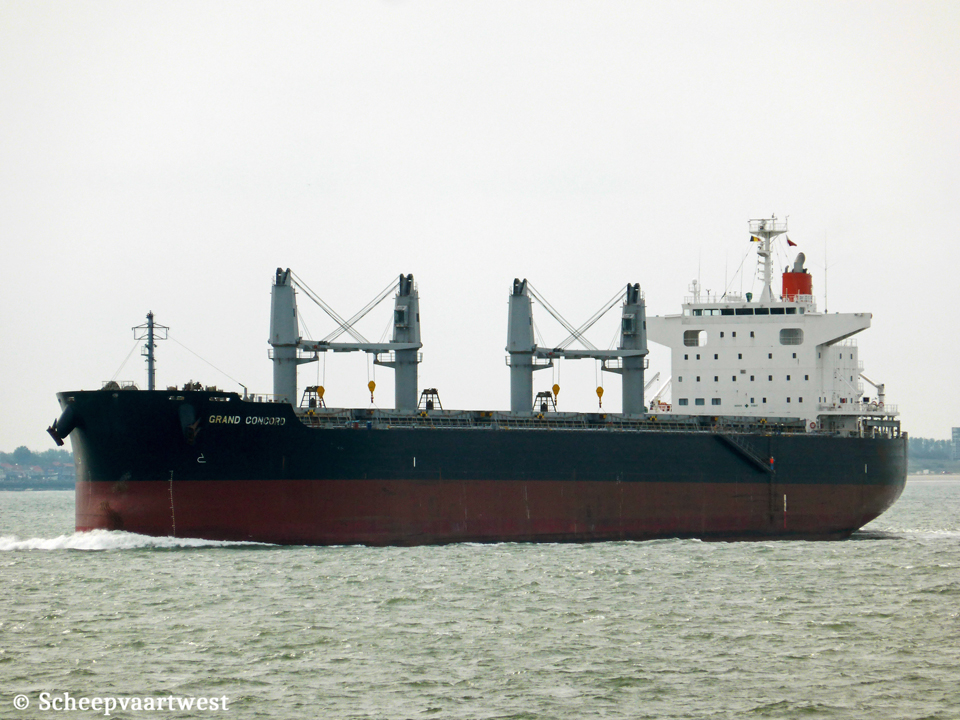

| Westerschelde 21/09/15 | |
|
Name |
GRAND CONCORD |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9624639 |
|
Call sign |
3FCH9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
34.777 t |
|
DWT |
Summer: 61.444 t Winter: 59.782 t |
|
NT |
20.209 t |
|
Length |
199,98 m |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,01 m Winter: 12,73 m |
|
Moulded L x B x D |
195,00 x 32,24 x 18,60 m |
|
Registered L x B x D |
195,39 x 32,24 x 18,60 m |
|
Keel to mast end |
46,70 m |
|
Freeboard |
Summer: 5.540 mm |
|
Depth |
18,60 m moulded |
|
Speed |
Max: 16,0 knots Ballast: 14,0 knots Laden: 11,8 knots |
|
Built |
2012 |
|
Keel laid |
15/12/2010 |
|
Launch date |
28/05/2012 |
|
Date of completion |
12/07/2012 |
|
Builder |
Shin Kasado Dockyard Co., Ltd. Kudamatsu Japan |
|
Yard number |
S-K032 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN B&W 6S50MC-C8 - 2 stroke single acting 6 cylinder 600 x 2.000 mm combustion engine 8.450 kW / 11.489 hpat 108,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 500 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 2,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.965 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: Hold 1: 14.129,47 m³ Hold 2: 16.020,98 m³ Hold 3: 16.010,98 m³ Hold 4: 16.037,52 m³ Hold 5: 15.675,74 m³ Total: Grain: 77.674,69 m³ Bale: 73.552 m³ |
|
Number of hatches |
5 Hatch 1: 18,40 x 18,72 m Hatch 2: 23,20 x 18,72 m Hatch 3: 23,20 x 18,72 m Hatch 4: 23,20 x 18,72 m Hatch 5: 23,20 x 18,72 m |
|
Hatch cover type |
Steel, Double skin, weather tight, end folding type |
|
Max permitted loads |
Hold 1: 23,67 t/m² Hold 2: 17,95 t/m² Hold 3: 23,81 t/m² Hold 4: 17,94 t/m² Hold 5: 23,85 t/m² Upper deck: 3,10 t/m² Hatch covers: 2,29 t/m² |
|
Tank capacities |
HFO: 2.565 m³ Diesel oil: 193,85 m³ Fresh water: 669 m³ |
|
Cargo gear |
4x Hydraulic deck crane - SWL 30,5 t each Max. Outreach: 26,00 mm 4x Grabs each 12,0 m³ |
|
ISM & commercial manager |
Daiwa Kisen Co., Ltd. Kyukan-Hakata Building, 26-29, Hakataekimae 3-chome, Hakata-ku, Fukuoka-shi, Fukuoka Prefecture, 812-0011, Japan |
|
Registered owner |
Forward Gloria Navigation SA Kyukan-Hakata Building, 26-29, Hakataekimae 3-chome, Hakata-ku, Fukuoka-shi, Fukuoka Prefecture, 812-0011, Japan |
|
Latest data adjustment |
01 February 2024 |
