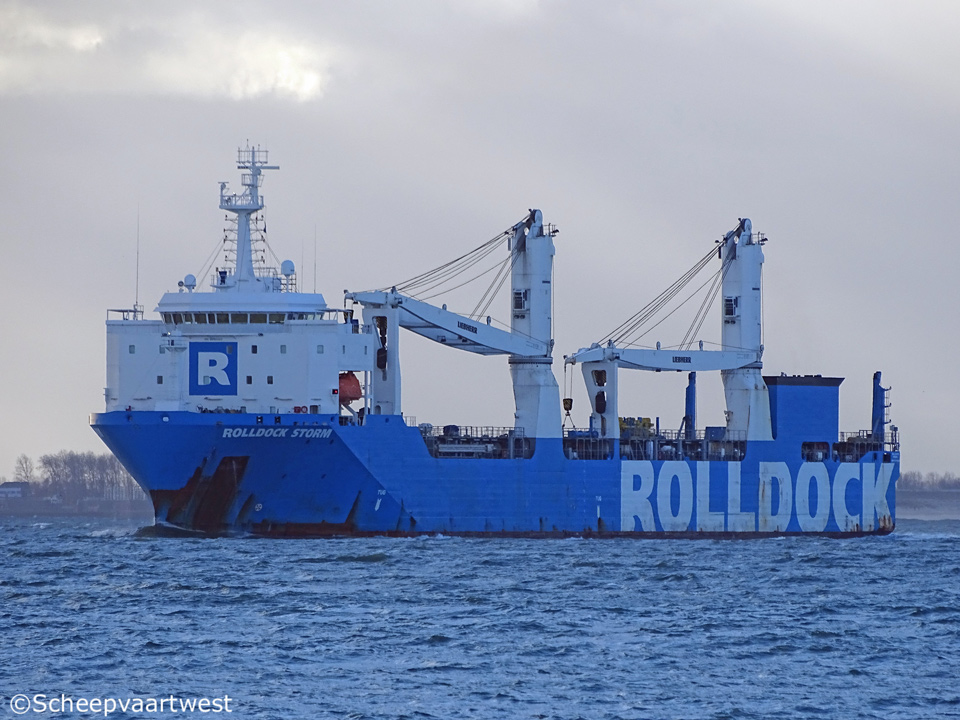

Westerschelde 26 November 2017 |
 |

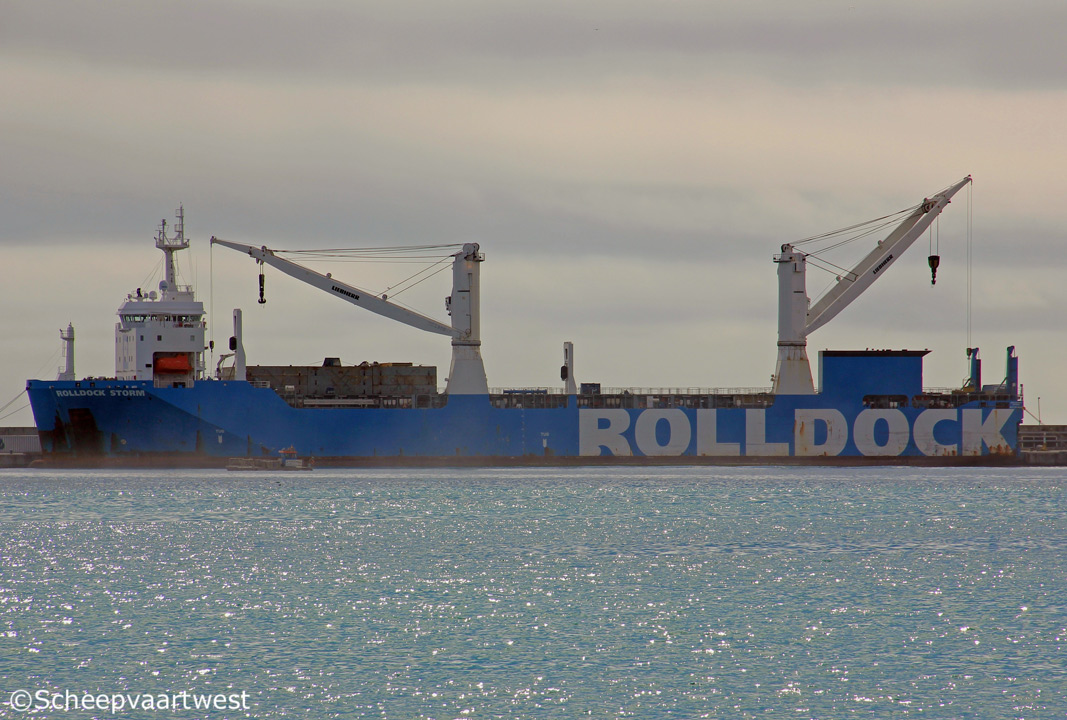

| Malaga, Spain 08/03/18 |
|
Name |
ROLLDOCK STORM |
|
Type |
Multi-purpose dry cargo ship heavy lift carrier Dock type semi-submersible multifunctional heavy transport vessel - Float-in Float-out / Roll-on Roll-off / Lift-on Lift-off |
|
IMO-number |
9656503 |
|
Call sign |
PCQW |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
15.382 t |
|
DWT |
Summer: 9.063,2 t |
|
NT |
4.615 t |
|
Length |
151,54 m overall 145,04 m between perpendiculars |
|
Breadth |
25,50 m extreme 15,40 m moulded |
|
Draught |
Summer: 5,67 m |
|
Depth |
5,90 m to main deck |
|
Speed |
Max.: 17,0 knots |
|
Built |
2014 |
|
Keel laid |
17.06.2013 |
|
Launch date |
31.01.2014 |
|
Date of completion |
11.06.2014 |
|
Builder |
Flensburger Schiffbau-Gesellschaft mbH & Co. KG |
|
Yard number |
759 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x MaK 9M32C - 4 stroke single acting 9 cylinder diesel engine each 6.035 bhp total 9.000 kW / 12.070 bhp |
|
Propellers |
2x Controllable pitch propellers |
|
Boilers |
Thermal oil heater, oil fired KOH 0.63/25 2x Thermal oil heater, exhaust heated AKV 0.6/50 |
|
Generators |
2x Caterpillar C32 ACERT main diesel generatorsets each 895 kW |
|
Emergency generator |
1x Caterpillar C18 diesel generatorset 550 kW |
|
Bow thruster |
1x Fixed Schottel propeller 1.200 kW |
|
Number of holds |
1x Fully box shaped 119,44 x 19,40 x 8,10 m |
|
Hold capacity |
± 18.768 m³ |
|
Ro-Ro stern ramp |
19,40 x 9,50 m (excluding 2 m flaps) Allowing Ro-Ro cargo upto 4.500 t unit weight depending on cargo configuration |
|
Max. permitted loads |
Deck (tanktop): 12,0 t/m² Hatch covers: 7,0 t/m² without support (can be increased with support) |
|
Tank capacities |
Ballast: 14.965,4 m³ |
|
Anchor equipment |
Length: 606,00 m Diameter: 62 mm |
|
Cargo gear |
2x Lienherr deckcranes - SWL 350 t each Combi - SWL 700 t Outreach: Main hoist: 350 t @ 18,00 m & 200 mt @ 33,00 m Aux. hoist: 45 t @ 41,00 m |
|
Accommodation |
32 persons |
|
Manager |
RollDock Shipping B.V. Fascinatio Boulevard 882 |
|
Owner |
Rolldock NB 2 B.V. |
|
Remarks |
Weather deck plus Ro-Ro stern ramp adjustable in 6 positions serving various quay heights for operations with exceptional loads. The Ro-Ro ramp is also removable to accommodate oversized cargo(s). |
|
Latest data adjustment |
09 January 2018 |
