Antwerpen 28 November 2014 |
|
Name |

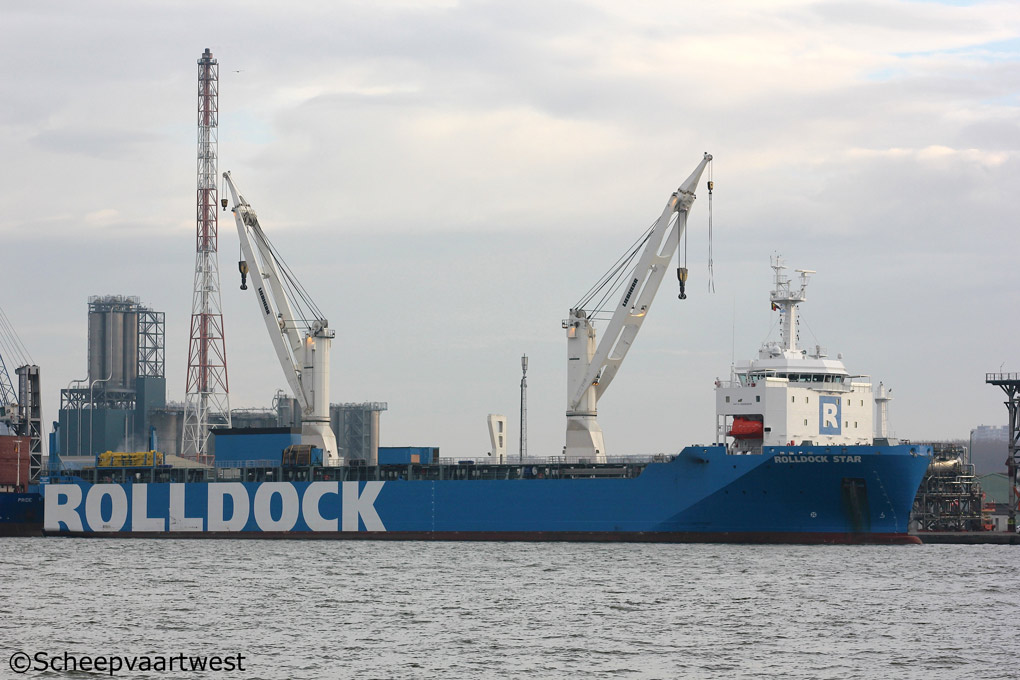

ROLLDOCK STAR |
|
Type |
Multi-purpose dry cargo ship - strengthened for heavy cargo Dock type Semi-submersible Multifunctional Heavy Transport vessel Float-in Float-out / Roll-on Roll-off / Lift-on Lift-off |
|
IMO-number |
9656498 |
|
Call sign |
PBIK |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
15.382 t |
|
DWT |
Summer: 9.161,1 t |
|
NT |
4.615 t |
|
Length |
151,49 m overall 145,04 m between perpendiculars |
|
Breadth |
25,46 m extreme 25,38 m moulded |
|
Draught |
Max. summer: 5,67 m |
|
Depth |
5,90 m to main deck 13,16 m |
|
Speed |
17,0 knots |
|
Built |
2013 |
|
Keel laid |
03.06.2013 |
|
Launch date |
30.08.2013 |
|
Date of completion |
18.12.2013 |
|
Builder |
Flensburger Schiffbau-Gesellschaft mbH & Co. KG |
|
Yard number |
758 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Mak 9M32C - 4 stroke single acting 9 cylinder diesel engines total 9.000 kW / 12.240 bhp |
|
Propellers |
2x Controllable pitch propeller |
|
Boilers |
2x Thermal oil heater, exhaust heated AKV 0.6/50 1x Thermal oil heater, oil fired KOH 0.63/25 |
|
Generators |
2x Caterpillar C32 ACERT diesel generatorsets each 1.140 kVA |
|
Emergency generator |
1x Caterpillar C18 diesel generatorset |
|
Bow thruster |
1x Schottel 1.200 KW |
|
Submerged draft of vessel |
12,50 m |
|
Submerged draft of vessel |
6,60 m |
|
Number of holds |
1x Fully box shaped 119,44 x 19,40 x 8,10 m |
|
Hold capacity |
Abt. 18.768 m³ |
|
Ro-Ro Stern Ramp |
Ramp dimensions: 19,40 x 9,50 m - (excluding 2 m flaps) Capacity: Allowing Ro-Ro cargo upto 4.500 t unit weight depending on cargo configuration |
|
Max. permitted loads |
Deck (tank top) strength: 12,0 t/m² Hatch covers: 7,0 t/m² without support (can be increased with support) |
|
Tank capacities |
Ballast: 14.963 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 350 t |
|
Accommodation |
32 persons |
|
Manager |
RollDock Shipping B.V. |
|
Owner |
RollDock ST1 B.V. |
|
Latest data adjustment |
16 March 2016 |
