Antwerpen 09 April 2017 |
|
Name |

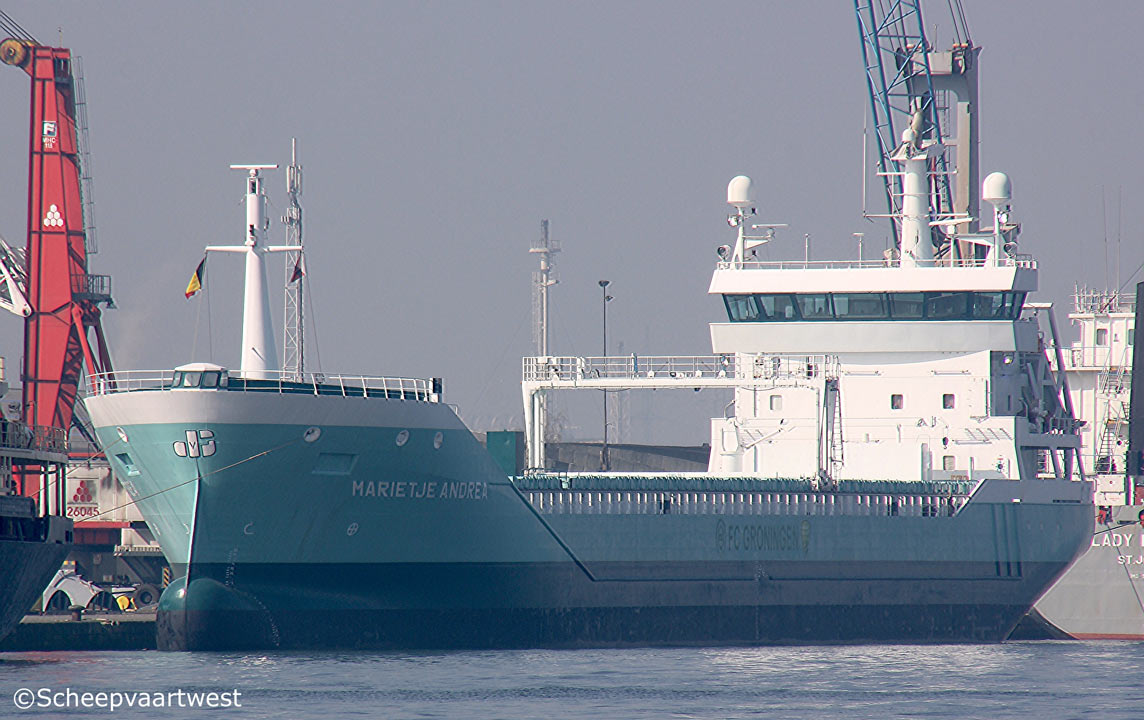

MARIETJE ANDREA |
|
Type |
Multi-purpose dry cargo ship - heavy cargo |
|
IMO-number |
9361134 |
|
Call sign |
PBWR |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
5.418 t |
|
DWT |
Summer: 8.334 t |
|
DWCC |
Summer: 7.850 t |
|
NT |
2.627 t |
|
Number of 20ft containers |
305 |
|
Length |
126,13 m overall 121,93 m between perpendiculars |
|
Breadth |
15,20 m |
|
Draught |
Summer: 6,98 m Winter: 6,84 m |
|
Air draft |
25,00 m in ballast |
|
Freeboard |
2.536 mm |
|
Depth |
9,50 m moulded |
|
Speed |
Service: 13,75 knots |
|
Built |
2009 |
|
Launch date |
03.07.2009 |
|
Date of completion |
12.11.2009 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. |
|
Yard number |
319 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L27/38 - 4 stroke single acting 9 cylinder 270 x 380 mm diesel engine 2.999 kW / 4.077 hp at 800 rpm Built: 27.05.2009 Builder: MAN Diesel A/S, Frederikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch - aft at 152 rpm |
|
Boilers |
1x CHO Konutherm 16,10 m² - 10,0 bar |
|
Shaft generator |
1x 585 kVA - 468 kW |
|
Generators |
1x Caterpillar 3406 main diesel generatorset 300 kVA - 240 kW - 353 hp |
|
Emergency generator |
1x Caterpillar 3406 diesel generatorset 300 kVA - 240 kW - 353 hp |
|
Bow thruster |
1x 400 kW |
|
Number of holds |
2 Hold 1: 20,71 x 12,80 x 9,38 m Hold 2: 68,63 x 12,80 x 9,38 m |
|
Cargo hold capacity |
Grain: 9.769 m³ / 330.771 ft³ |
|
Number of hatches |
2 Hatch 1: 20,71 x 12,80 m Hatch 2: 68,63 x 12,80 m |
|
Tank capacities |
Fuel oil: 575,81 m³ MGO: 85 m³ Water ballast: 3.640 m³ Fresh water: 50 m³ |
|
Manager |
Wagenborg Shipping B.V. |
|
Registered owner |
Danser Van Gent M.A. C.V. The Netherlands |
|
Latest data adjustment |
12 May 2017 |
