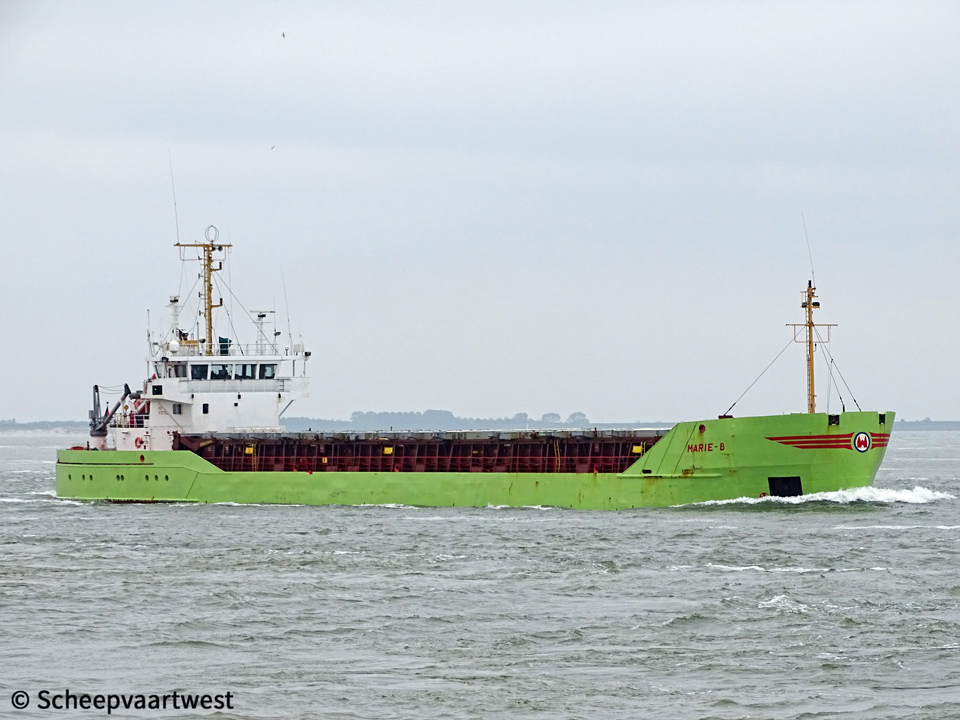

Westerschelde 19 May 2018 |
 |
| Westerschelde 09/05/18 |
|
Name |
MARIE-B |
|
Previous names |
1987 - 2017 Marie Lehmann |
|
Type |
General cargo carrier - Strengthened for heavy cargo |
|
IMO-number |
8707783 |
|
Call sign |
V2OA8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
1987 - 02/2002 Germany |
|
GT |
2.642 t |
|
DWT |
Summer: 3.017 t |
|
DWCC |
Summer: 3.320 t Winter: 3.220 t |
|
NT |
956 t |
|
Number of 20ft containers |
198 |
|
Length |
87,99 m overall 89,06 m between perpendiculars |
|
Breadth |
12,80 m |
|
Draught |
5,18 m fully laden |
|
Air draft |
25,90 m in ballast |
|
Depth |
7,45 m |
|
Speed |
11,0 knots |
|
Built |
1987 |
|
Keel laid |
29/05/1987 |
|
Launch date |
03/07/1987 |
|
Delivery date |
29/08/1987 |
|
Builder |
J.J. Sietas Kg Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Germany |
|
Yard number |
1002 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
3 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 6R32 - 4 stroke 6 cylin der combustion engine 1.835 kW / 2.495 hp Builder: Wärtsilä Diesel OY, Vaasa - Finland |
|
Propellers |
1x Controllable pitch propeller |
|
Electric installations |
2x Plant 400/ 220 V - 120 kVA 1x Plant 400 V - 425 kVA 1x Plant 400 V - 25 kVA |
|
Shaft generator |
1x 425 kVA |
|
Generators |
2x Main diesel generatorsets each 120 kVA |
|
Emergency generator |
1x Diesel generatorset 25 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram - 165 kW |
|
Number of holds |
1x Box type 55,78 x 10,38 x 8,18 m |
|
Cargo hold capacity |
Grain: 4.870 m³ Bale: 4.842 m³ |
|
Number of hatches |
1 56,04 x10,40 m |
|
Hatch type |
Hydraulic folding |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Ballast: 1.659 t |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Crew size |
8 |
|
Manager |
Jeb Bereederungsgesellschaft Mbh & Co. Mühlenstraße 26 26931 Elsfleth Germany |
|
Operator |
Niels Hankiewicz Chartering GmbH Konsul-Smidt-Straße 8b 28217 Bremen Germany |
|
Registered owner |
Marie B Schifffahrts GmbH & Co KG |
|
Renamed |
10/2020 Rocket Racoon Antigua & Barbuda, St. John’s - Call sign: V2OA8 Owner: 1 Nauticore Schiffahrts UG |
|
Latest data adjustment |
10 January 2021 |
