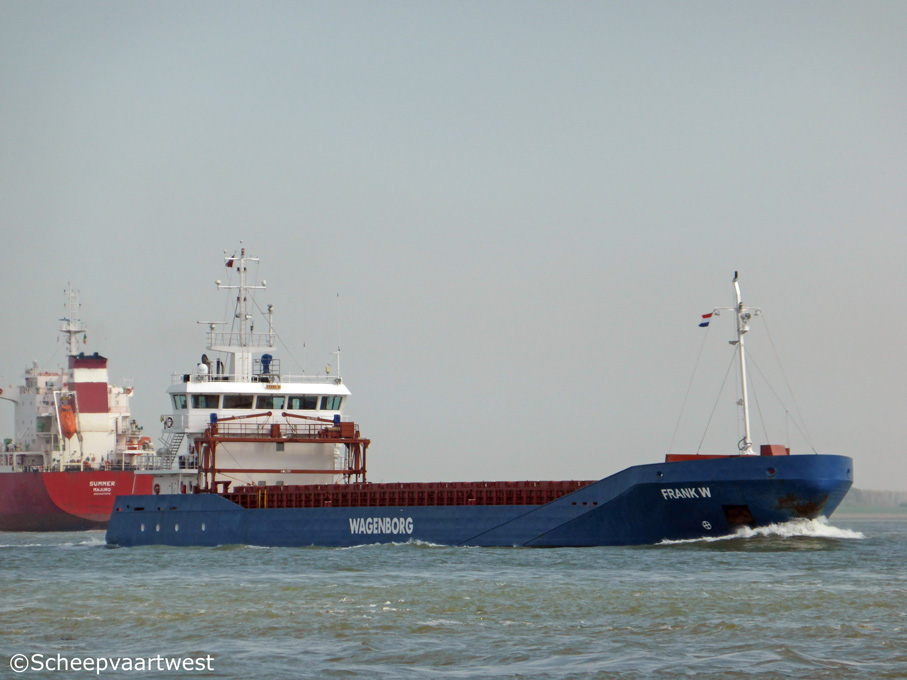

Westerschelde 17 April 2014 |
 |
|

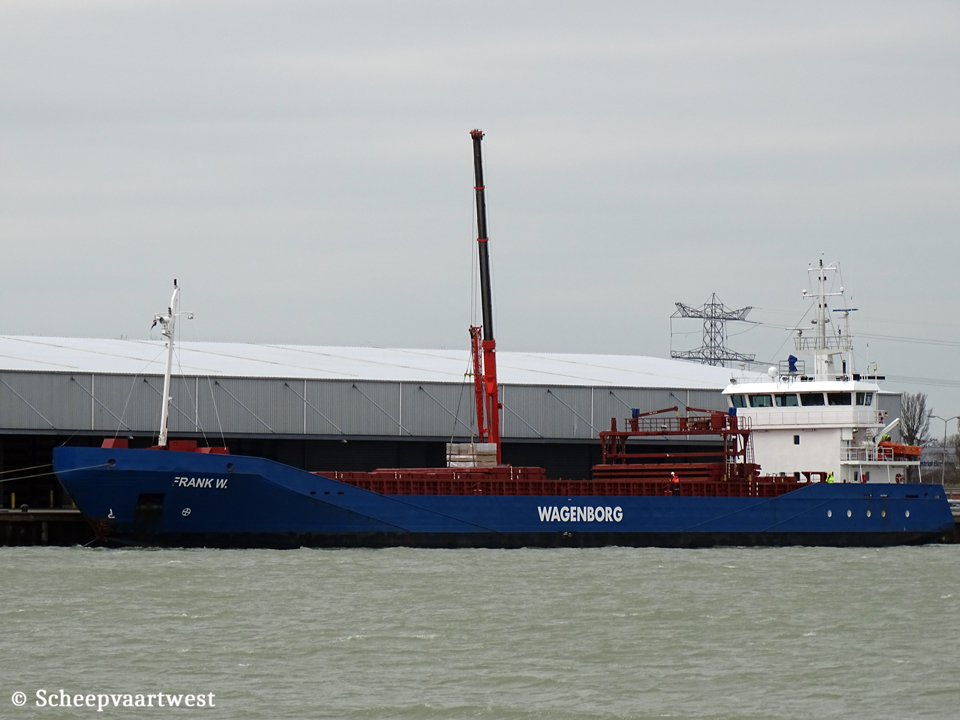

| Vlissingen 09/03/16 | |
|
Name |
FRANK W |
|
Previous names |
2006 - 10/2008 Storm 10/2008 - 2009 Frank W. |
|
Type |
General cargo ship - Heavycargo - Strengthen bottom - Equipped for carriage of containers |
|
IMO-number |
9374674 |
|
Call sign |
DFWK2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
Previous flags |
09/2006 - 10/2008 The Netherlands, Harlingen - Call sign: PHGN 10/2008 - 10/2015 Antigua & Barbuda, St. John's - call sign: V2DX8 |
|
GT |
2.528 t |
|
DWT |
Summer: 3.568 t |
|
DWCC |
Summer: 3.350 t |
|
NT |
1.053 t |
|
Number of 20ft containers |
157 |
|
Length |
89,99 m overall 84,95 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
5,26 m |
|
Air draft |
22,75 m in ballast |
|
Freeboard |
2.530 mm |
|
Depth |
8,00 m moulded |
|
Speed |
13,0 knots Service: 10,5 knots |
|
Built |
2006 |
|
Keel laid |
2005 |
|
Launch date |
30/06/2006 |
|
Date of completion |
27/09/2006 |
|
Builder |
Peters Scheepswerf B.V. Kampen The Netherlands |
|
Yard number |
1011 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.446 hp at 1.000 rpm Start type: Compressed air Built: 02/2006 Builder: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland |
|
Gearbox |
1x Scana Volda CG-680K - reduction 5.24:1 |
|
Propellers |
1x Screw propeller controllable pitch - aft at 191 rpm Diameter: 2.700 mm - 4 blades |
|
Shaft generator |
1x Stamford HCM534C generator 313 kVA - 250 kW |
|
Generators |
1x Sisu Diesel 645-DSBIG - 6 cylinder 111 x 145 mm diesel engine 180 kW connected with Stamford HCM434C generator 210 kVA at 1.500 rpm Built: 2007 |
|
Emergency generator |
1x Sisu Diesel 420-DSRG - 4 cylinder 108 x 120 mm diesel engine 70 kW connected with Stamford UCM274C generators 77 kVA at 1.500 rpm |
|
Bow thruster |
1x Veth tunnel thruster, type VT-200 with Leroy Somer E-motor - 250 kW at 1.500 rpm |
|
Number of holds |
1 60,00 x 10,30 x 8,15 m |
|
Hold capacity |
Grain/bale: 174.063 ft³ / 4.927 m³ |
|
Hold ventilation |
6x Air changes per hour basis empty hold |
|
Number of hatches |
1 60,00 x 10,30 m |
|
Hatch type |
Pontoon |
|
Tank capacities |
Marine gas oil: 250 m³ Water ballast: 1.466 m³ Fresh water: 25 m³ |
|
Anchor equipment |
2x Anchors 1.305 kg each Length: 440 m |
|
Lifting equipment |
1x Gantry crane 1x Store crane |
|
Manager |
Royal Wagenborg Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous managers |
09/2006 -10/2008 Kustvaart Harlingen B.V., Harlingen - The Netherlands |
|
Registered owner |
Frank W. GmbH & Co., KG Hamburg Germany |
|
Previous names & owners |
09/2006 -10/2008 Storm - Kustvaart Harlingen B.V., Harlingen - The Netherlands 10/2008 - 10/2015 Frank W. - Frank W G.m.b.H. Co. K.G., Hamburg - Germany |
|
Renamed |
08/2017 Ruyter The Netherlands, Delfzijl - Call sign: PDFO Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Ruyter B.V., 's-Gravenhage - The Netherlands 10/03/2021 Owner: Ruyter B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
22 October 2021 |
