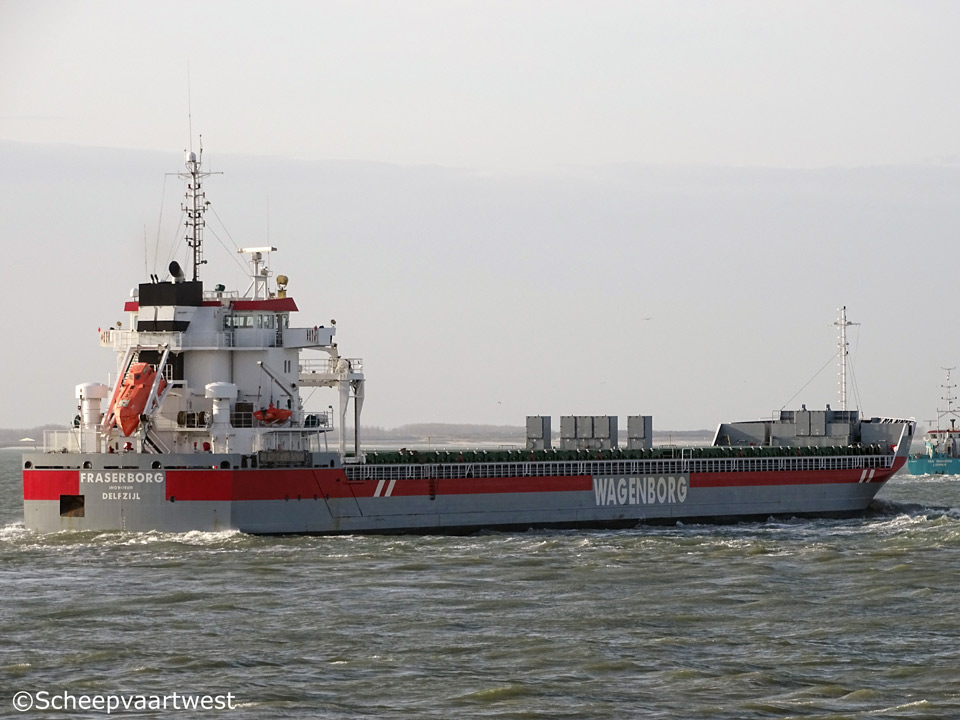

Fraserborg 01

Westerschelde 12 January 2017



Name

FRASERBORG

Type

General cargo ship - Container ship

IMO-number

9419319

Call sign

PCJS

Flag

The Netherlands

Port of registry

Delfzijl

GT

8.911 t

DWT

Summer: 14.596 t

DWCC

Summer: 13.500 t

NT

4.419 t

Number of 20ft containers

475

Length

154,60 m overall

148,14 m between perpendiculars

Breadth

17,20 m moulded

Draught

Summer: 8,19 m

Winter: 8,02 m

Air draft

29,00 m in ballast

Freeboard

3.401 mm

Depth

11,55 m moulded

Speed

13,0 knots

Built

2011

Launch date

18.02.2011

Date of completion

23.03.2011

Builder

Scheepswerf Ferus

Leer
Germany

Yard number

394

Hull material

Steel

Hull type

Box and double skinned

Continuous decks

1

Main engine

1x Wärtsilä 9L32C - 4 stroke single acting 9 cylinder 320 x 400 mm diesel engine 4.500 kW / 6.114 bhp at 750 rpm

Manufacturer: Wärtsilä NSD Finland OY, Turku - Finland

Propellers

1x Screw propeller controllable pitch - 4 blades diameter 4.200 mm

Shaft generator

1x 921 kVA - 737 kW

Generators

2x Main diesel generatorsets each 375 kVA - 300 kW - 512 hp

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW - 194 hp

Bow thruster

1x 640 kW

Number of holds

2

Hold 1: 50,4 x 14,34 x 11,47 m

Hold 2: 61,6 x 14,34 x 11,47 m

Total capacity of holds

17.415 m³ / 606.781 ft³

Hold ventilation

12x Electrical ventilation air changes per hour basis empty holds

Both holds fitted with dehumidifier system

Number of hatches

2

Hatch 1: 50,4 x 14,34 m

Hatch 2: 61,6 x 14,34 m

Hatch type

Fully open hatch

Tween decks

The vessel is equipped with a full tween-deck, consisting of loose tween-deck pontoons of each:
Tweendeck sizes:

No. 1 + 2 L x H x B 5,57 x 7,17 x 0,48 m weight abt. 9,9 t

No. 3 ~ 20 L x H x B 5,57 x 14,34 x 0,74 m weight abt. 23,0 t

Tweendecks can be used as bulkheads

Hold 1: 3 bulkheads positions

Hold 2: 4 bulkheads positions

Tank capacities

HFO: 973,3 m³

MGO: 70,1 m³

Water ballast capacity:6.059,8 m³

Fresh water:60,2 m³

Manager

Wagenborg Shipping B.V.

Marktstraat 10
9934 CK Delfzijl
The Netherlands

Registered owner

Scheepvaartonderneming B.V. Fraserborg
The Netherlands

Latest data adjustment

04 May 2017
