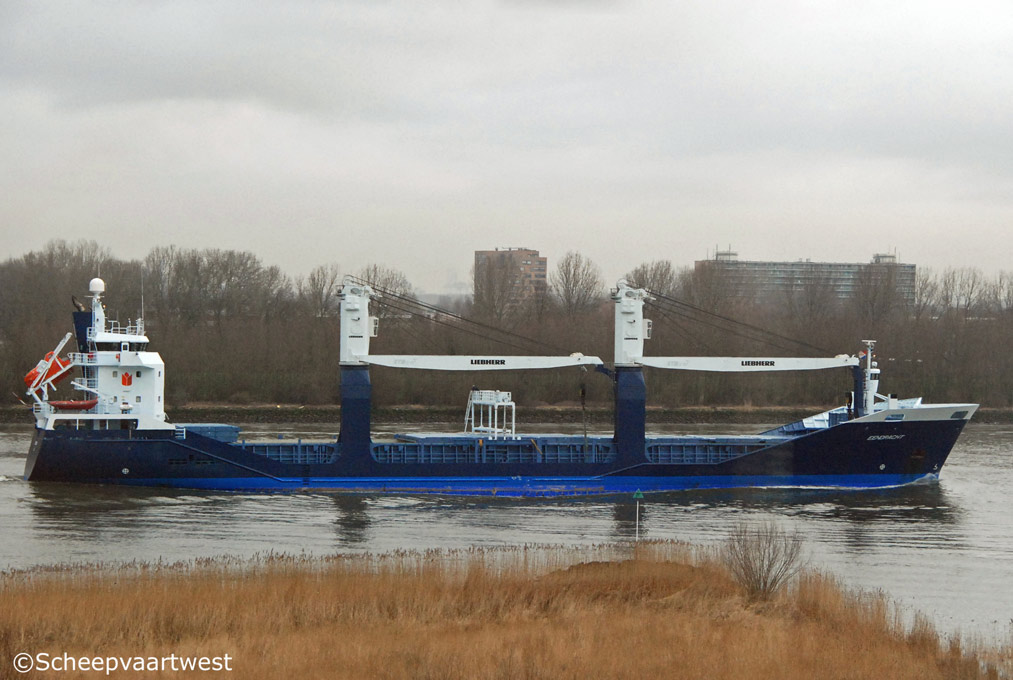

Eendracht 01

Spijkenisse 05 March 2011

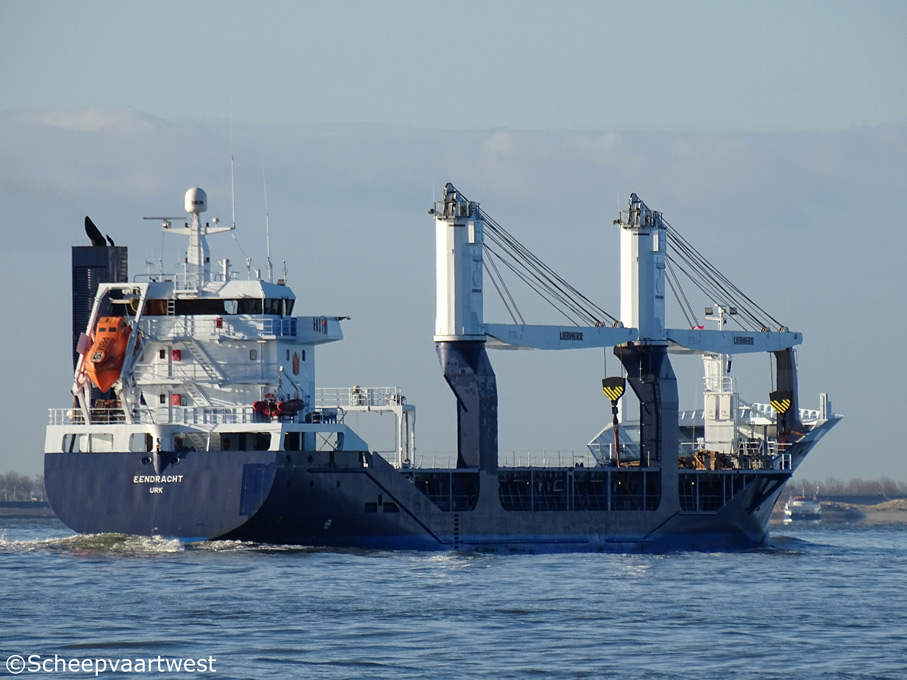

Eendracht 02
Westerschelde 17/01/16



Name

EENDRACHT

Type

General cargo ship - Heavy cargo

IMO-number

9512783

Call sign

PBMS

Flag

The Netherlands

Port of registry

Urk

GT

2.981 t

DWT

Summer: 3.394 t

NT

1.613 t

Number of 20ft containers

236

Length

104,80 m overall

98,20 m between perpendiculars

Breadth

15,60 m moulded

Draught

Max.: 5,81 m

Freeboard

1.597 mm

Depth

7,40 m moulded

Speed

18,0 knots

Built

2009

Keel laid

03.11.2008

Launch date

01.05.2009

Delivery date

14.10.2009

Builder casco

Partner Shipyard
Szczecin
Poland

Builder completion

Hartman Marine Shipbuilding BV

Urk
The Netherlands

Yard number

002

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 8L32 - 4 stroke single acting 8 cylinder 320 x 400 mm diesel engine 3.680 kW / 5.003 bhp at 750 rpm

Built: 12.05.2009

Builder: Wärtsilä Finland OY, Vaasa

Gearbox

1x

Propellers

1x Screw propeller controllable pitch - aft at 190 rpm

Shaft generator

1x Stamford HCM 634K23 generator 625 kVA - 500 kW

Generators

2x Scania main diesel generatorsets each 435 kVA - 348 kW - 571 hp

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 158 hp

Bow thruster

1x 300 kW, forward

1x 250 kW, aft

Number of holds

1

Total capacity of holds

Grain: 4.396 m³

Tank capacity

Fuel oil: 408 m³

Cargo gear

2x Liebherr cranes - SWL 120,0 t each

Manager

Hartman Seatrade B.V. (Johan en Berend Hartman)
8321 EH Urk
The Netherlands

Owner

Global Seatrade
Klifweg 20
8321 EJ Urk
The Netherlands

Registered owner

Global Seatrade CV

Latest data adjustment

23 December 2015
