Name |

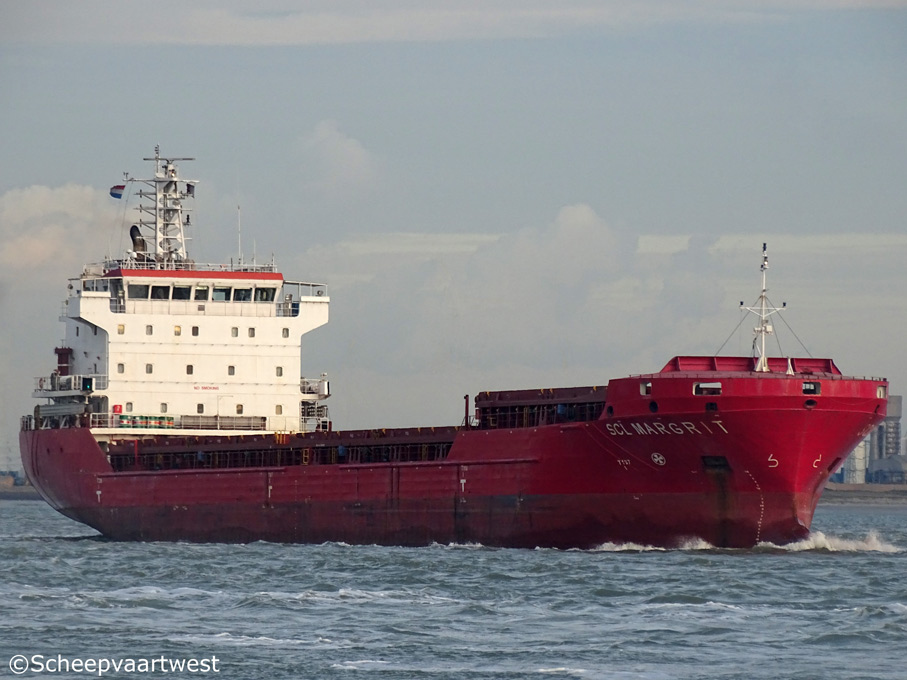

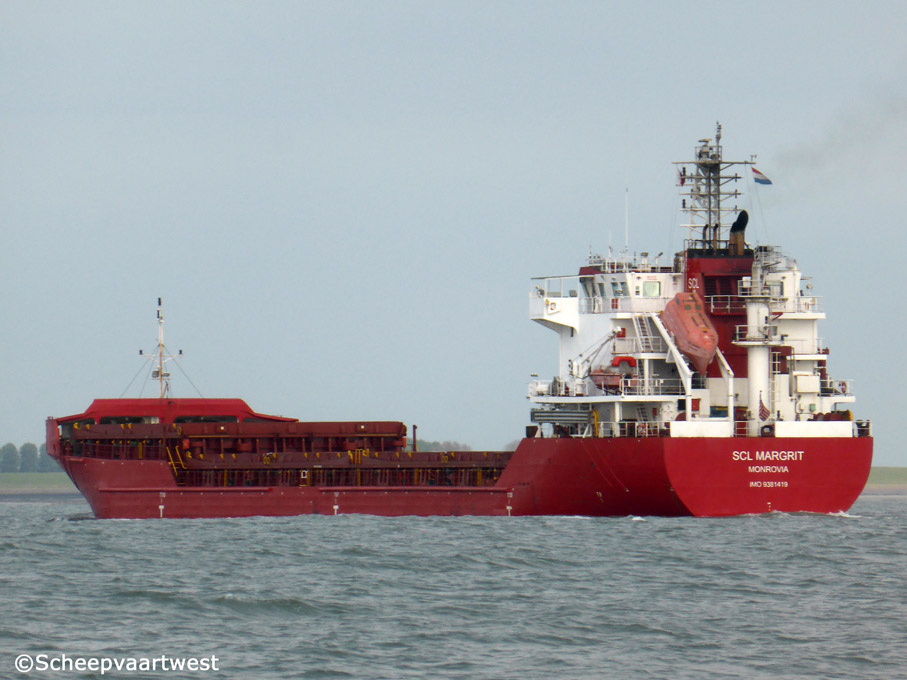

SCL MARGRIT |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9381419 |
|
Call sign |
A8MT8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
5.599 |
|
DWT |
Summer: 7.775 t |
|
DWCC |
Summer: 7.300 t Winter: 7.100 t |
|
NT |
2.883 t |
|
Lightship |
2.870 t |
|
Length |
108,18 m overall 104,11 m registered |
|
Breadth |
18,20 m registered |
|
Draught |
Max.: 6,82 m |
|
Depth |
9,00 m moulded |
|
Speed |
12,4 knots |
|
Built |
2009 |
|
Keel laid |
03.08.2007 |
|
Launch date |
31.07.2008 |
|
Date of completion |
05.02.2009 |
|
Builder |
Tianjin Xinhe Shipbuilding Heavy Ind. Co., Ltd. |
|
Yard number |
SB509 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-Burmeister & Wain/STX 7S26MC - 2 stroke 7 cylinder 260 x 980 mm diesel engine - 2.800 kW / 3.807 hpat 250 rpm Year of manufacture: 2007 Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Controllable pitch propeller - aft at 250 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 16,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 60,0 m² Year of manufacture: 2007 Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Electric installations |
2x Plants each 440 V - 456 kVA 1x Plant 440 V - 331 kVA 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 45 Ah 2x Plants each 24 V - 65 Ah 2x Plants each 24 V - 143 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
2x Main diesel generatorsets each 456 kVA |
|
Emergency generator |
1x Diesel generatorset 331 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah 2x Batteries for automation each 200 Ah 2x Batteries for start emergency engine each 143 Ah 2x Batteries for diesel control each 65 Ah 2x Batteries for automation each 45 Ah 2x Batteries for diesel control each 12 Ah 2x Batteries for diesel control each 12 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 50 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram 255 kW / 347 hp, forward |
|
Number of holds |
3 Hold 1: 18,90 x 15,25 x 11,20 m - ± 97.892 ft³ Hold 2: 29,40 x 15,25 x 9,10 m - ± 137.837 ft³ Hold 3: 28,00 x 15,25 x 9,10 m - ± 130.986 ft³ |
|
Cargo hold capacity |
Grain: 366.715 ft³ Bale: 363.642 ft³ |
|
Number of hatches |
3 Hatch 1: 17,91 x 15,594 x 0,664 m Hatch 2: 26,29 x 15,594 x 0,664 m Hatch 3: 26,29 x 15,594 x 0,664 m |
|
Hatch covers type |
Hydraulic folding type |
|
Max. permitted loads |
Hatch 1: 2,2 t/m² Hatch 2&3: 2,5 t/m² Tanktop: 15,0 t/m² |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Crew size |
15 |
|
Crew |
13 |
|
Manager |
Enzian Ship Management AG |
|
Registered owner |
SCL Margrit GmbH & Co. KG |
|
Latest data adjustment |
12 August 2015 |
