Westerschelde 27 December 2015 |
|
Name |

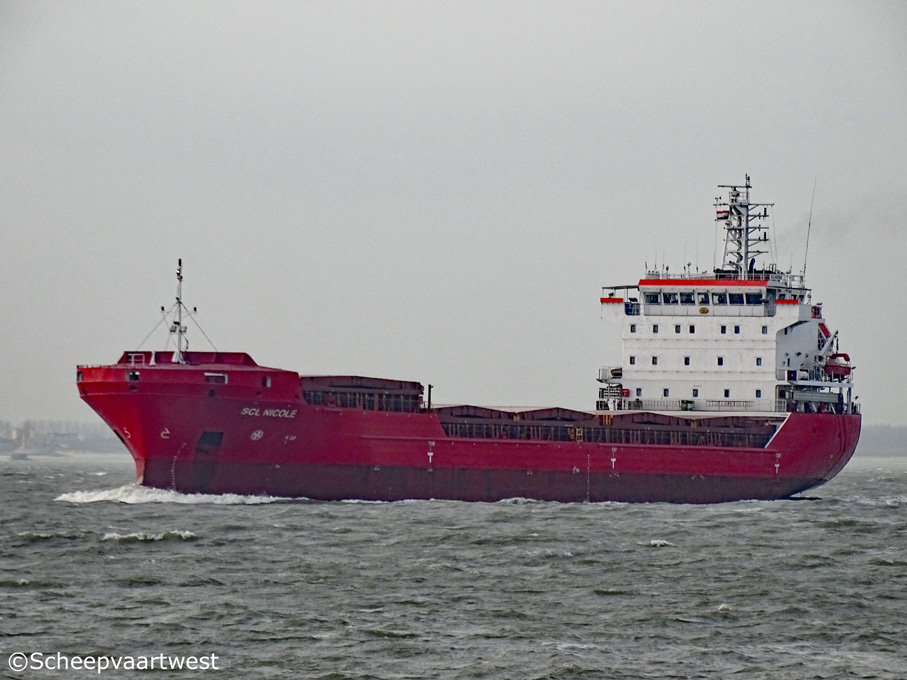

SCL NICOLE |
|
Previous names |
2009 Launch as: Merwedelta |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9381433 |
|
Call sign |
A8TX4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2009 Malta, Valletta - Call sign: 9HWQ9 |
|
GT |
5.599 t |
|
DWT |
Summer: 7.678,10 t |
|
DWCC |
Summer: 7.300 t Winter: 7.100 t |
|
NT |
2.883 t |
|
Length |
108,15 m overall 103,92 m between perpendiculars |
|
Breadth |
18,22 m extreme |
|
Draught |
6,82 m |
|
Depth |
9,00 m moulded |
|
Speed |
12,4 knots |
|
Built |
2009 |
|
Keel laid |
09/10/2008 |
|
Launch date |
26/03/2009 |
|
Date of completion |
27/10/2009 |
|
Builder |
Tianjin Xinhe Shipbuilding Heavy Ind. Co., Ltd. 8, Xinhu Road Tanggu District Tianjin People's Republic of China |
|
Yard number |
SB511 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-Burmeister & Wain/STX 7S26MC - 2 stroke 7 cylinder 260 x 980 mm combustion engine 2.800 kW / 3.807 hp at 250 rpm Year of manufacture: 2007 Manufacturer: STX Engine Co., Ltd. 36, Gongdanro474-gil Sungsan-gu Changwon Republic of Korea |
|
Propellers |
1x Controllable pitch propeller - aft at 250 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 16,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 60,0 m² Year of manufacture: 2007 Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. 1, Renmin XI Road Zhangjiagang City People's Republic of China |
|
Electric installations |
2x Plants each 440 V - 456 kVA 1x Plant 440 V - 331 kVA 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 45 Ah 2x Plants each 24 V - 65 Ah 2x Plants each 24 V - 143 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
2x MAN D2876 LE301 main diesel generatorsets each 456 kVA |
|
Emergency generator |
1x MAN D2866 LXE20 diesel generatorset 331 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah 2x Batteries for automation each 200 Ah 2x Batteries for start emergency engine each 143 Ah 2x Batteries for diesel control each 65 Ah 2x Batteries for automation each 45 Ah 2x Batteries for diesel control each 12 Ah 2x Batteries for diesel control each 12 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 50 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram 255 kW / 347 hp, forward |
|
Number of holds |
3 Hold 1: 18,90 x 15,25 x 11,20 m Hold 2: 29,40 x 15,25 x 9,10 m Hold 3: 28,00 x 15,25 x 9,10 m |
|
Cargo hold capacity |
Grain: 366.715 ft³ / 10.384 m³ Bale: 363.642 ft³ / 10.197 m³ |
|
Number of hatches |
3 Hatch 1: 17,91 x 15,594 x 0,664 m Hatch 2: 26,29 x 15,594 x 0,664 m Hatch 3: 26,29 x 15,594 x 0,664 m |
|
Hatch covers type |
Hydraulic folding type |
|
Max. permitted loads |
Hatch 1: 2,2 t/m² Hatch 2&3: 2,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 2.487 m³ |
|
Anchor equipment |
Length: 496,00 m Diameter: 46 mm |
|
Crew size |
15 |
|
Manager |
Enzian Ship Management AG Bremgartnerstrasse 7 8003 Zürich Switzerland |
|
Registered owner |
SCL Nicole Shipping Ltd. |
|
Renamed |
2016 Evita Portugal, Madeira - Call sign: CQBA Owner: Amisco Ltd. (Amisco AS), Maderia -Portugal |
|
Latest data adjustment |
05 May 2023 |
