Antwerpen 12 April 2015 |
|
Name |

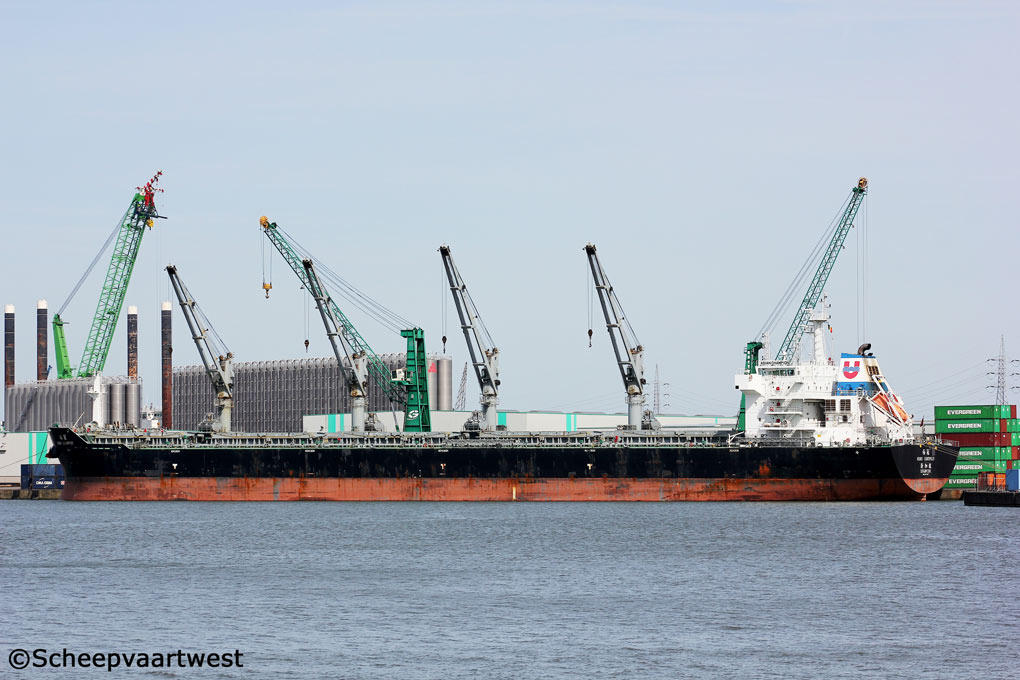

ASIAN CHAMPION |
|
Type |
Bulk carrier |
|
IMO-number |
9474656 |
|
Call sign |
9V9802 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
33.035 |
|
DWT |
Summer: 56.562 t |
|
NT |
19.221 t |
|
Length |
190,00 m overall 185,01 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
12,80 m |
|
Depth |
18,00 m |
|
Built |
2012 |
|
Keel laid |
28.12.2010 |
|
Launch date |
17.04.2012 |
|
Date of completion |
03.07.2012 |
|
Builder |
COSCO Zhoushan Shipyard Co., Ltd. |
|
Yard number |
N201 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W 6S50MC-C -2 stroke 6 cylinder diesel engine 8.600 kW at 127 rpm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler, composite ZYC1.5/300-0.7 Builder: Geens Shazhou |
|
Generators |
3x MAN 5L23/30H - 5 cylinder 225 x 300 mm 650 kW diesel engine coupled with generator 620 kW Manufacturer: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Cummins diesel generatorset Manufacturer: Dongfeng Cummins Engine Co., Ltd. |
|
Ballast capacity |
30.791,31 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Manager |
U Ming Marine Transport Corporation |
|
Owner |
U Ming Marine Transport Singapore Pte. Ltd. |
|
Latest data adjustment |
20 May 2015 |
