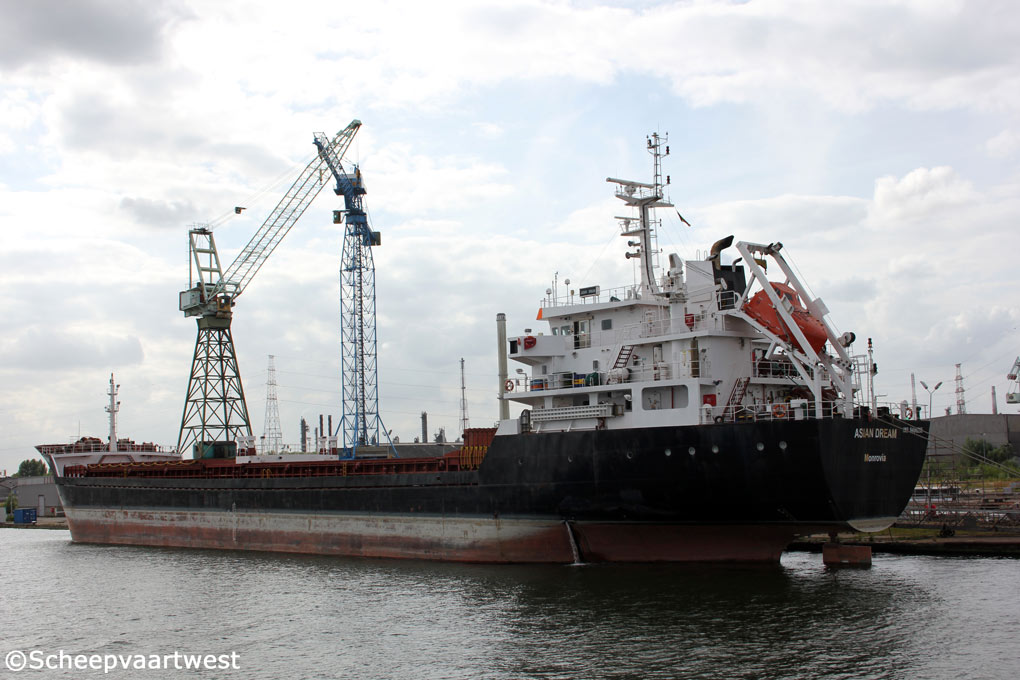

| Antwerpen 15 July 2012 |
 |
 |
|

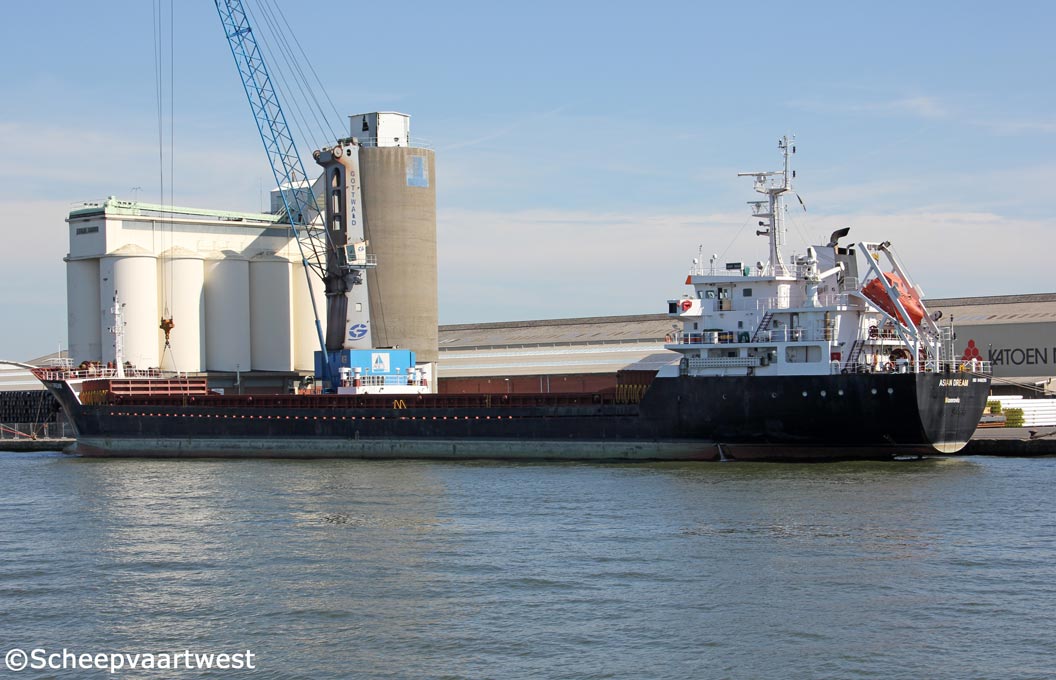

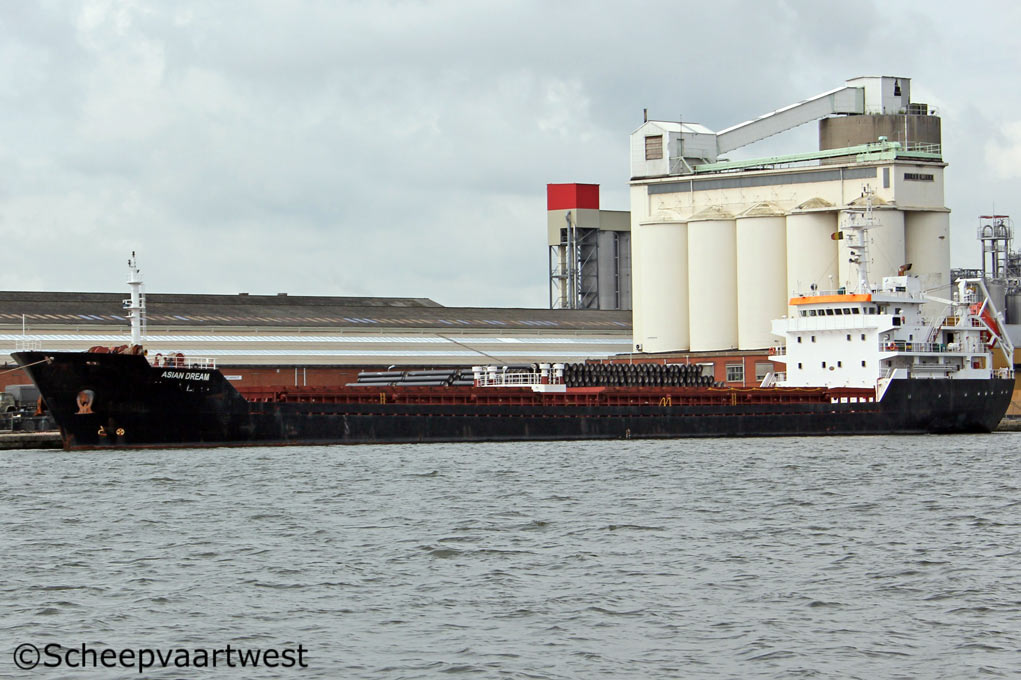

| Antwerpen 24/07/12 | Antwerpen 16/08/12 |
|
Name |
ASIAN DREAM |
|
Previous names |
2009 - 2011 Global Helena - Antigua and Barbuda - Call sign: V2DU7 |
|
Type |
General cargo - Bulk carrier |
|
IMO-number |
9486295 |
|
Call sign |
A8YG3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
5.164 t |
|
DWT |
7.433 t |
|
NT |
2.913 t |
|
Length |
119,95 m overall |
|
Breadth |
16,80 m moulded |
|
Draught |
6,30 m |
|
Moulded L x B x D |
112,80 x 16,80 x 8,20 m |
|
Registered L x B x D |
112,99 x 16,80 x 8,20 m |
|
Air draft |
30,45 m lightship |
|
Freeboard |
Summer: 1.957 mm |
|
Depth |
8,20 m moulded |
|
Speed |
Service: 12,50 knots |
|
Built |
2009 |
|
Keel laid |
12.06.2006 |
|
Date of completion |
06.04.2009 |
|
Builder |
Ningbo Xinle Shipbuilding Co., Ltd. |
|
Yard number |
XL-122 |
|
Hull material |
Steel |
|
Main engine |
1x Daihatsu 8DKM-28 - 4 stroke single acting 8 cylinder 280 x 390 mm diesel engine - 2.500 kW / 3.397 bhp at 750 rpm Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Works |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary thermal oil heater - 1,3 Mpa Evaporation: 310 kW Manufacturer: Aalborg Industries A/S |
|
Generators |
3x Main diesel generatorsets each 768 kVA |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
2 |
|
Number of hatches |
2 |
|
Cargo capacity |
Grain: 9.828 m³ |
|
Tank capacities |
Fuel oil: 336 m³ Fresh water: 230 m³ Water ballast: 2.802 m³ |
|
Manager |
Asian Shipmanagement Corporation |
|
Registered owner |
Asian Dream Shipping Ltd. |
