Antwerpen 21 April 2015 |
|
Name |

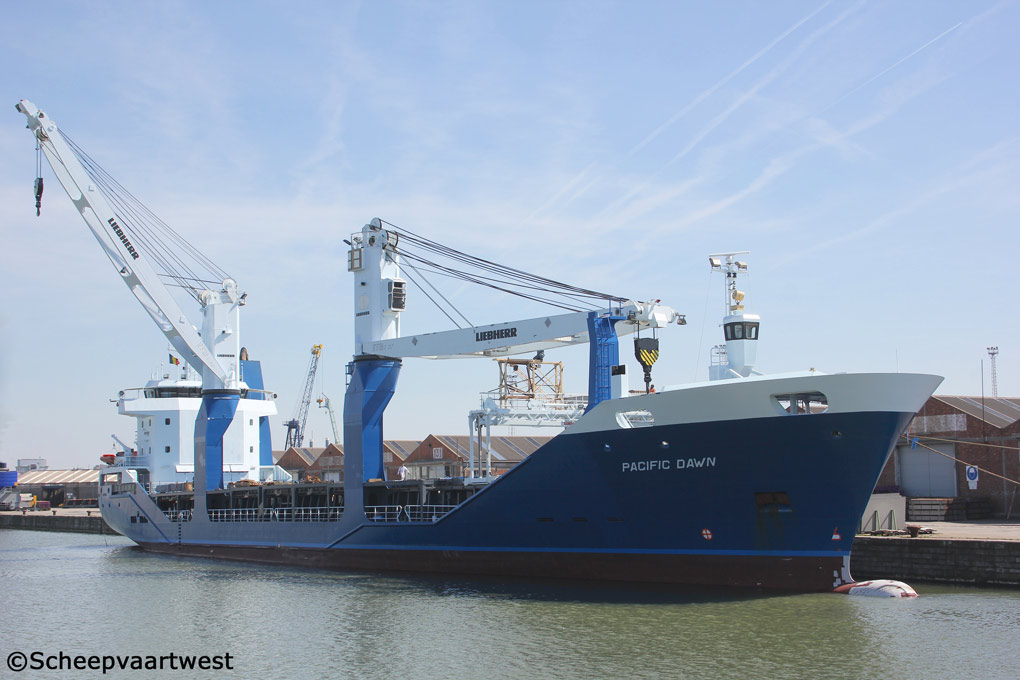

PACIFIC DAWN |
|
Type |
General cargo ship - Heavy cargo - Container ship |
|
IMO-number |
9558464 |
|
Call sign |
PBTM |
|
Flag |
The Netherlands |
|
Port of registry |
Urk |
|
GT |
2.981 t |
|
DWT |
Summer: 3.500 t |
|
NT |
1.198 t |
|
Displacement |
5.486 t |
|
Number of 20ft containers |
In hold: 73 On deck: 133 Total: 206 |
|
Length |
104,80 m overall 98,20 m between perpendiculars |
|
Breadth |
15,60 m moulded |
|
Draught |
Summer: 5,81 m |
|
Keel to top mast |
26,50 m |
|
Freeboard |
1.597 mm |
|
Depth |
7,40 m moulded |
|
Speed |
18,0 knots Service: 16,0 knots |
|
Built |
2010 |
|
Date of completion |
24.09.2010 |
|
Builder casco |
Partner Sp.z.o.o. |
|
Builder completion |
Hoekman Marine Shipbuilding B.V. Urk |
|
Yard number |
003 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Removable bulkheads |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L32 - 4 stroke single acting 8 cylinder 320 x 400 mm diesel engine 3.680kW / 4.891 hp at 750 rpm Builder: Wärtsilä NSD Finland OY, Turku - Finland |
|
Propellers |
1x Screw propeller controllable pitch - aft at 190 rpm |
|
Generators |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
1x 300 kW |
|
Number of holds |
1 Upper hold: 63,60 x 11,50 x 4,43 m lower hold: 31,50 x 11,00 x 3,00 m Hold height: 7,40 m |
|
Total capacity of holds |
4.396 m³ / 155.243 ft³ |
|
Number of hatches |
1 Dimensions: 72,00 x 15,40 m |
|
Hatch type |
10x Pontoon hatches Tweendeck covers: 6 removable pontoons |
|
Load distribution |
Tanktop upper hold: 12 t/m² Tanktop lower hold: 15 t/m² Tweendeck: 2,5 t/m² Tweendecks each: 154 t/cover Hatchcovers: 3,4 t/m² Hatchcovers each: 249 t/cover |
|
Tank capacities |
Fuel oil: 408 m³ Marine gas oil: 84 m³ |
|
Cargo gear |
2x Liebherr CBB 120(81)-16(24) cranes - SWL 120 t each Outreach/loads: 120 t. / 3,5-16 m 100 t. / 16-20 m 80 t. / 20-24 m Tandem load: 240 t. SWL |
|
Manager |
Hartman Shipping (Daniël Hartman) The Netherlands |
|
Owner |
Hartman Shipping 1 B.V. |
|
Latest data adjustment |
15 May 2015 |
