Wilson Farsund 01

Westerschelde 03 June 201

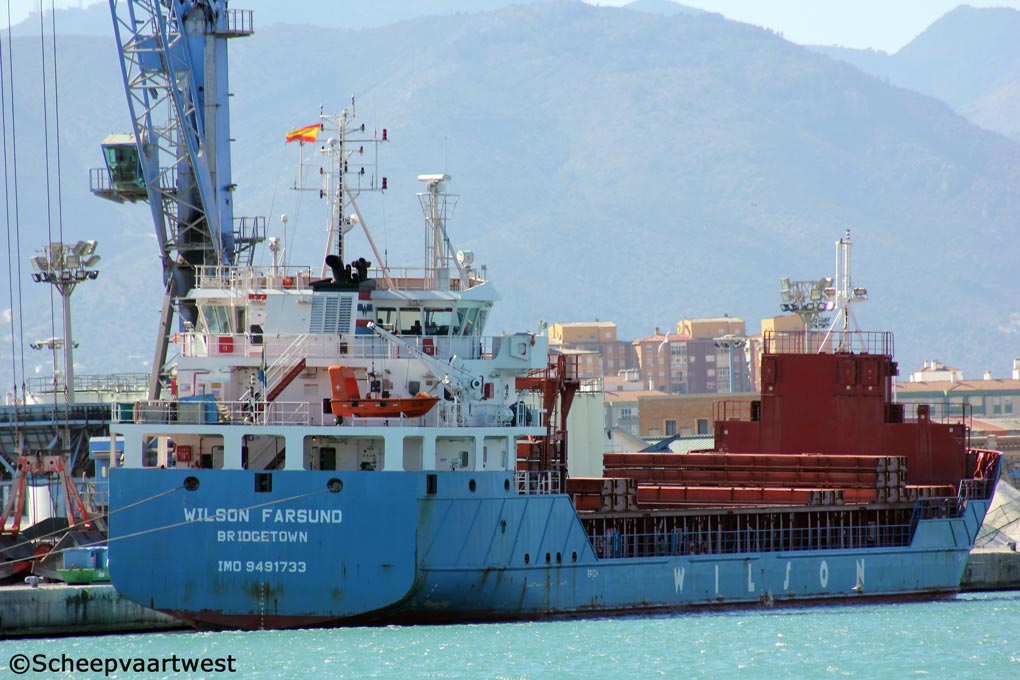

Wilson Farsund 02
Malaga - Spain 05/02/15



Name

WILSON FARSUND

Type

Multi-purpose dry cargo ship - Strengthened for heavy cargo

IMO-number

9491733

Call sign

8PAE7

Flag

Barbados

Port of registry

Bridgetown

GT

3.561 t

DWT

Summer: 4.534 t

Winter: 4.380 t

NT

1.590 t

Length

89,97 m overall

84,93 m between perpendiculars

Breadth

15,40 m moulded

15,64 m extreme

Draught

Summer: 5,80 m

Winter: 5,68 m

Air draft

22,94 m

Depth

7,60 m moulded

Speed

11,5 knots

Built

2012

Keel laid

22.12.2008

Launch date

25.12.2010

Date of completion

20.03.2012

Builder

Shandong Baibuting Shipbuilding Co. Ltd.
Rongcheng
China

Yard number

BBT001

Hull material

Steel

Hull type

Double hull

Movable bulkhead

2x Moveable bulkheads, 6 working positions + 2 storage positions

Main engine

1x Wärtsilä 6L26B2 - 4 stroke 6 cylinder diesel engine 2.040 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated

1x Thermal oil heater, oil fired

Generators

2x MAN D2866 LXE diesel generatorsets

Emergency generator

1x Man D2866 LXE 20 diesel generatorset

Bow thruster

1x 250 kW

Number of holds

1

Dimension: 54,60 x 12,60 x 8,40 m

Hold dimension with bulkheads in storage positions: 52,05 x 12,60 x 8,40 m

Hold capacity

Grain & Bale: 5.684 m³ / 200.716 ft³

Hold capacity with bulkheads in storage positions: 5.509 m³

Number of hatches

1

Dimension: 54,60 x 12,60 m

Hatch type

Pontoon, type hatch with 11 pontoons

Maw. Permitted load

Hatch cover: 1,75 t/m²

Tank top: 15,00 t/m²

Tank capacities

Water ballast: 1.976,30 m³

Fuel main engine: 144,80 m³

Fuel aux. Engines: 79,60 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Crew

8

Manager

Wilson Shipmanagement AS
Bergen
Norway

Operator

Wilson EuroCarriers AS

Bergen
Norway

Owner

Wilson
Bergen
Norway

Registered owner

Wilson Shipowning AS

Latest data adjustment

22 February 2015
