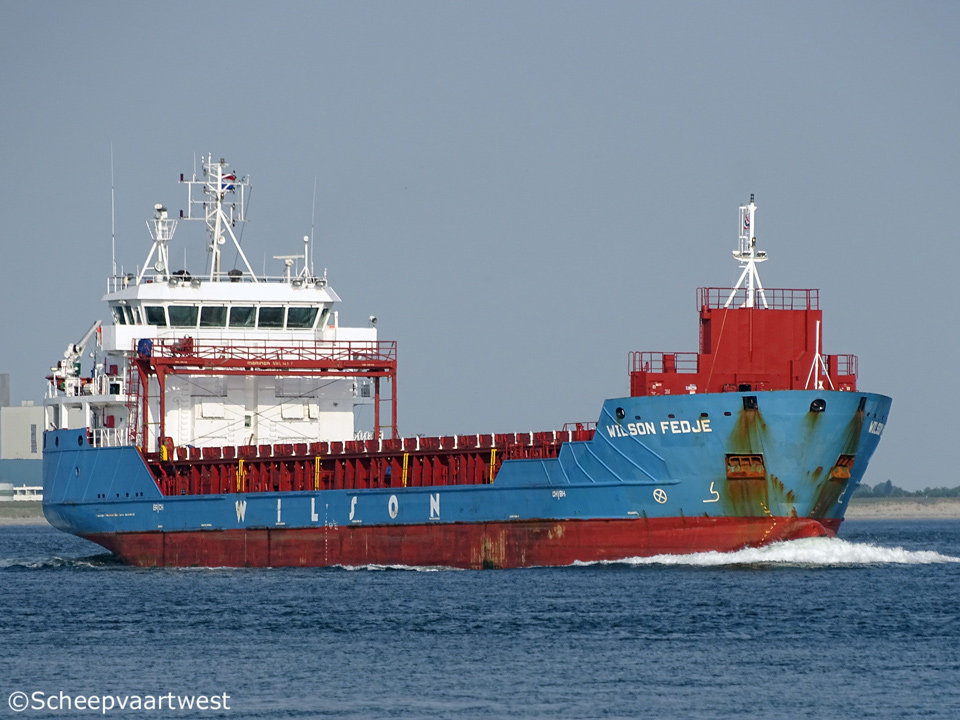

Wilson Fedje 02

Westerschelde 01 June 2017

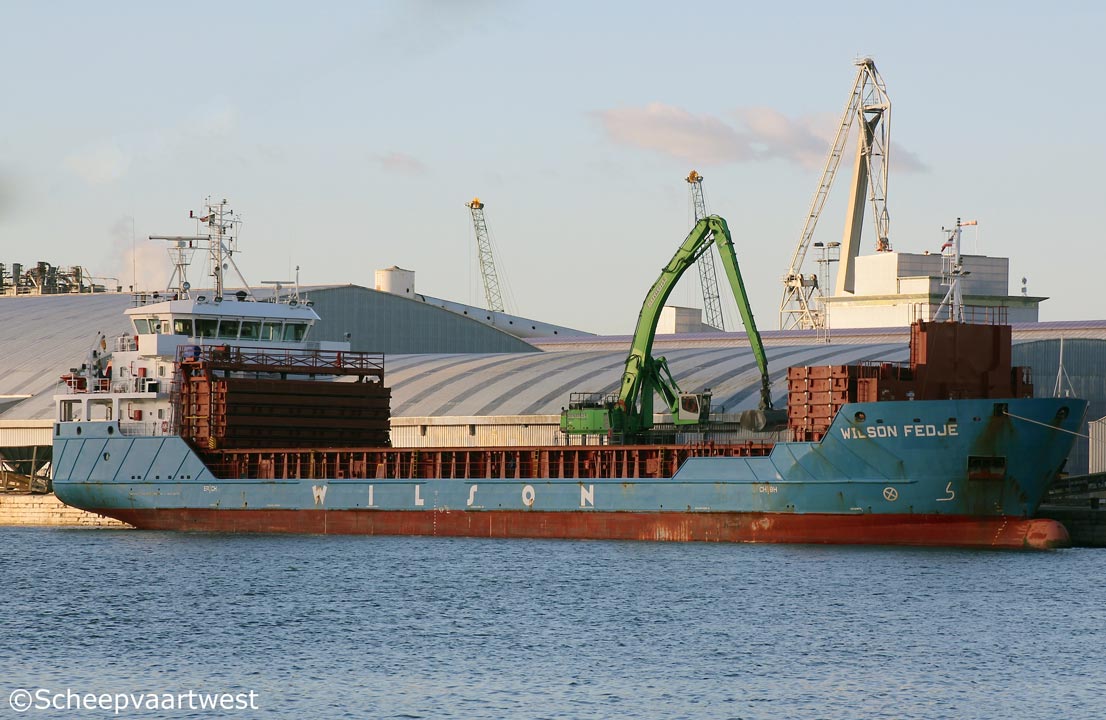

Wilson Fedje 01
Antwerpen 05/01/17



Name

WILSON FEDJE

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9491757

Call sign

8PAH4

Flag

Barbados

Port of registry

Bridgetown

GT

3.561 t

DWT

Summer: 4.452 t

Winter: 4.300 t

NT

1.590 t

Number of 20ft containers

In hold: 120

On deck: 75

Total: 195

Length

89,97 m overall

84,92 m between perpendiculars

Breadth

15,66 m extreme

15,40 m moulded

Draught

Summer: 5,80 m

Winter: 5,68 m

Air draft

22,94 m

Keel to top antenna fwd/aft

22,30 / 27,00 m

Depth

7,60 m moulded

Speed

Service: 11,5 knots

Built

2012

Keel laid

22.12.2008

Launch date

10.04.2012

Date of completion

15.10.2012

Builder

Shandong Baibuting Shipbuilding Co., Ltd.
Rong Cheng
China

Yard number

BBT003

Hull material

Steel

Movable bulkheads

2x Moveable bulkheads, 6 working positions + 2 storage positions

Main engine

1x Wärtsilä 6L26B2 - 4 stroke 6 cylinder diesel engine 2.040 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated

1x Thermal oil heater, oil fired

Generators

2x MAN D2866 LXE main diesel generatorsets

Emergency generator

1x MAN D2866 LXE 20 diesel generatorset

Bow thruster

1x 250 kW

Number of holds

1

54,60 x 16,60 x 8,40 m

Dimension with bulkheads in storage positions: 52,05 x 12,60 x 8,40 m

Cargo hold capacity

Bale & Grain: 5.684 m³ / 200.716 ft³

With bulkheads in storage positions: 5.509 m³

Number of hatches

1

54,60 x 16,60 m

Hatch type

Pontoon type hatch with 11 pontoons, pontoons can be opened indepentently

Max. permitted loads

Deck/hatch cover: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Water ballast: 1.976,3 m³

Fuel main engine: 151,70 m³

Fuel aux. Engines: 84,90 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Crew

8

Manager

Wilson Ship Management AS

Operator

Wilson ASA
N-5835 Bergen
Norway

Registered owner

Wilson Shipowning AS

Latest data adjustment

07 February 2017
